Radium Turbo Fuel Cell Surge Tank Install Kit (FST Not Included) - Porsche 996

Radium Turbo Fuel Cell Surge Tank Install Kit (FST Not Included) - Porsche 996

Application: Porsche 911 Turbo (996)
Part Type: Fuel surge tank (FST) install kit – surge tank and pump not included
Part Number: 20-0288

The Radium Fuel Surge Tank Install Kit provides the hardware to fit a Radium fuel surge tank (FST) with a single 39mm fuel pump to the Porsche 996 911 Turbo. The FST mounts in a collision-safe area of the boot, in front of the fuel tank, leaving most of the boot usable. An anodised aluminium bracket attaches to the OEM fuel pump cover studs, and an aluminium replacement cover is included.

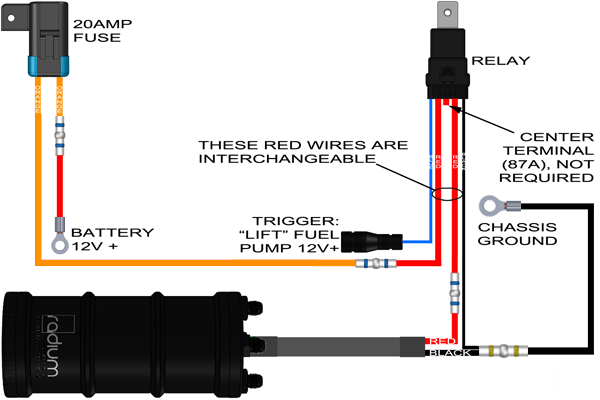

The OEM dual-venturi fuel system is sensitive and not easily altered, so the kit includes an FST orifice to maintain pressure in the factory system. Wiring uses solderless connectors with a weatherproof fuse and relay for the FST pump, and Radium quotes under 30 minutes to assemble the wiring.

Key Features

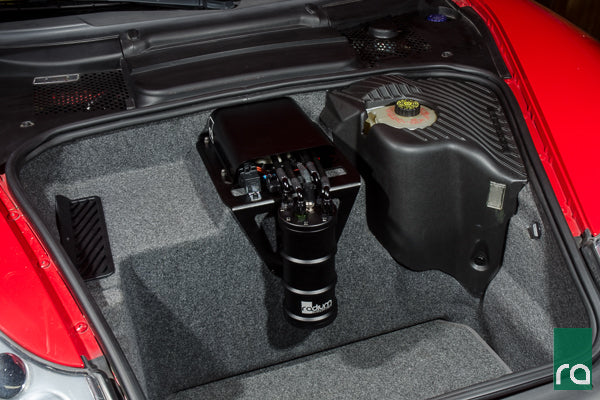

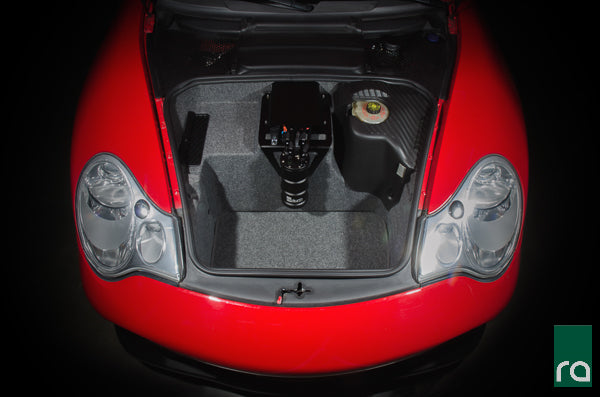

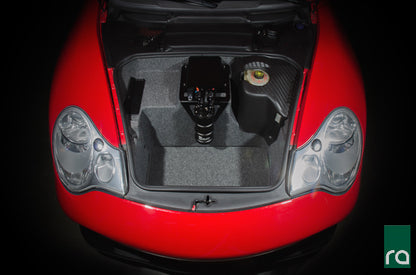

• Collision-Safe Location: FST mounts in the boot in front of the fuel tank, leaving most of the boot usable
• Bolt-On Bracket: Anodised aluminium bracket attaches to the OEM fuel pump cover studs
• Factory System Retained: FST orifice maintains pressure in the OEM dual-venturi system

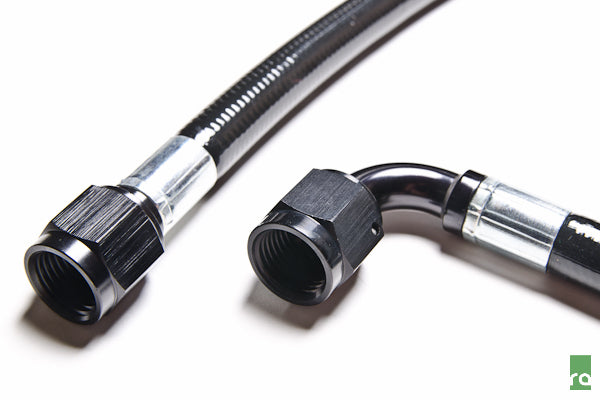

• Preassembled Hoses: 6AN (3/8") PTFE hoses, cut to length
• Weatherproof Wiring: Fuse and relay for the FST pump, no soldering required
• Low-Profile Connections: SAE quick-disconnect fittings

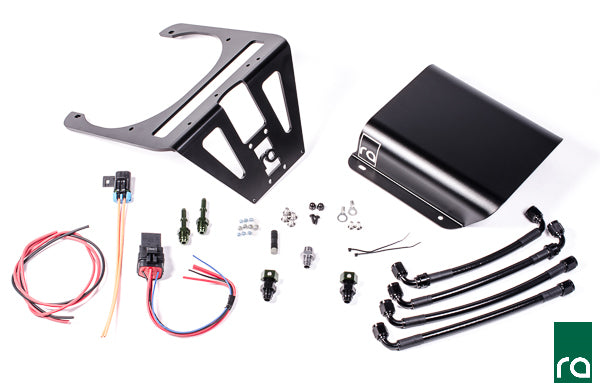

What's Included

• Preassembled 6AN (3/8") PTFE hoses, cut to length
• Aluminium mounting bracket
• Aluminium pump hanger cover

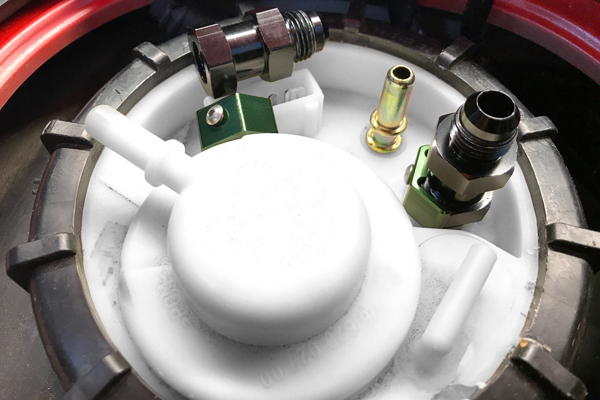

• AN and OEM-style adapter fittings
• Low-profile SAE quick-disconnect fittings
• FST orifice
• Wiring components with relay and fuse (flying leads, Raychem solderless butt splices)
• Solderless heat-shrink connectors
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Install Kit (Pump NOT Incl) - Porsche 911 Turbo 996 (20-0276-00) – Radium-recommended main tank pump upgrade for increased flow to the FST

Important Notes

• Radium fuel surge tank and FST fuel pump are required and sold separately
• Designed for the 996 911 Turbo only
• The main tank pump must keep the surge tank full – as an estimate it should flow roughly 40-50% of the surge tank pump's flow
• Depending on the surge tank pump selected, a main tank fuel pump upgrade may be required
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Porsche 911 Turbo (996)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
