Radium Fuel Pump Hanger - Toyota Supra A80 JZA80 (1993-2002)

Radium Fuel Pump Hanger - Toyota Supra A80 JZA80 (1993-2002)

Engineered by Radium Engineering for the MK4 Toyota Supra (JZA80), this fuel pump hanger is a precision-built solution for high-performance and motorsport fuel system upgrades. Designed to accept one, two, or three aftermarket fuel pumps within the factory fuel tank, this hanger eliminates the need for permanent modifications to the OEM fuel access cover — making it a clean, reversible, and professional-grade upgrade for any serious 2JZ build.

Whether you're building a street-driven 600whp Supra or a full-send time attack car, this hanger provides the fuel delivery foundation your build demands.

Key Features

• ✓ Supports 1, 2, or 3 aftermarket fuel pumps in the OEM MK4 Supra fuel tank
• ✓ No permanent modifications required to the factory fuel access cover
• ✓ 10AN ORB threaded feed port with low-profile 8AN male fitting
• ✓ 8AN ORB threaded return port with low-profile 6AN male fitting
• ✓ Integrated check valves on all pump outlets (included with 20-1511)
• ✓ Custom-designed stainless steel electrical studs rated for high current demand
• ✓ Low-profile design with foam insulation for tank fitment
• ✓ Fuel starvation protection via integrated siphon jet pump
• ✓ Redesigned venturi jet pump eliminates return line restriction
• ✓ Compatible with multiple high-flow pump options

Compatible Fuel Pumps

• Walbro GSS342 / AEM 50-1200
• Walbro F90000267 / F90000274 / F90000285
• Ti Automotive E5LM

Technical Specifications

• Application: 1993-2002 Toyota Supra JZA80 (2JZ-GE / 2JZ-GTE)
• Feed Port: 10AN ORB with low-profile 8AN male fitting
• Return Port: 8AN ORB with low-profile 6AN male fitting
• Pump Capacity: 1, 2, or 3 pumps
• Electrical Studs: Custom stainless steel, high-current rated
• Jet Pump: Venturi-style siphon jet pump (redesigned for reduced restriction)
• Check Valves: Integrated at all pump outlets
• Construction: CNC-machined billet aluminum
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Available Part Numbers

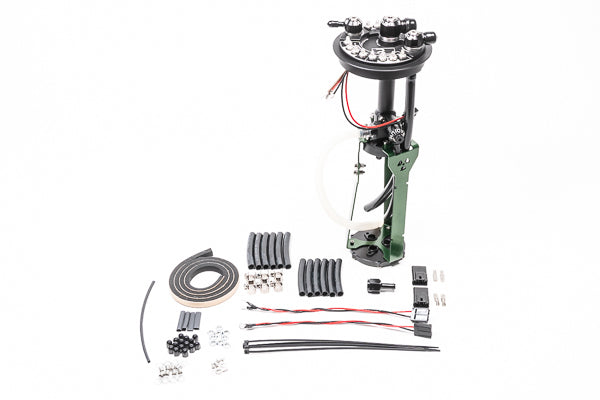

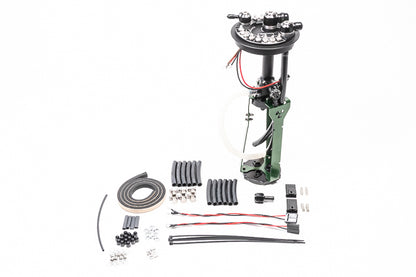

• 20-1510 - Walbro GSS342 / AEM 50-1200 — $1,146.00 AUD

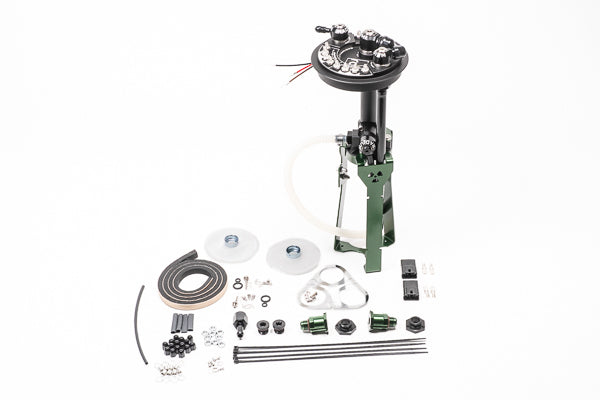

• 20-1511 - Ti Automotive E5LM — $1,146.00 AUD
• 20-1512 - Walbro F90000267 / F90000274 / F90000285 — $1,186.00 AUD

Why Radium Engineering?

• ✓ Designed and manufactured in the USA to motorsport-grade tolerances
• ✓ CNC-machined billet aluminum construction for durability and precision
• ✓ Trusted by professional race teams and high-horsepower street builds globally
• ✓ Fully rebuildable and serviceable
• ✓ Engineered for real-world performance, not just dyno numbers

Lead Time: Ships in 2-3 weeks. Warranty: Radium Engineering manufacturer warranty applies. Shipping: Fast dispatch from Coore's Australian warehouse.

Select your variant based on your chosen fuel pump. Fuel pumps are sold separately. Contact us if you need help selecting the right configuration for your build.
