Radium Engineering Fuel Pump Filter Base Adapter – 12mm Brushless Pumps (13-1187)

Radium Engineering Fuel Pump Filter Base Adapter – 12mm Brushless Pumps (13-1187)

Application: Radium fuel hangers and surge tanks using the Radium 1–3 pump strainer, with 12mm OD inlet brushless pumps

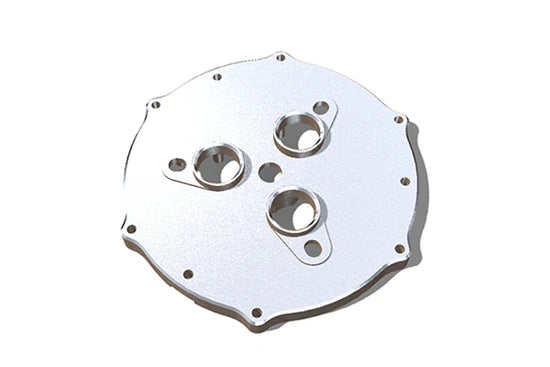

Part Type: Triple pump base / fuel pump filter base adapter – 12mm inlet
Part Number: 13-1187

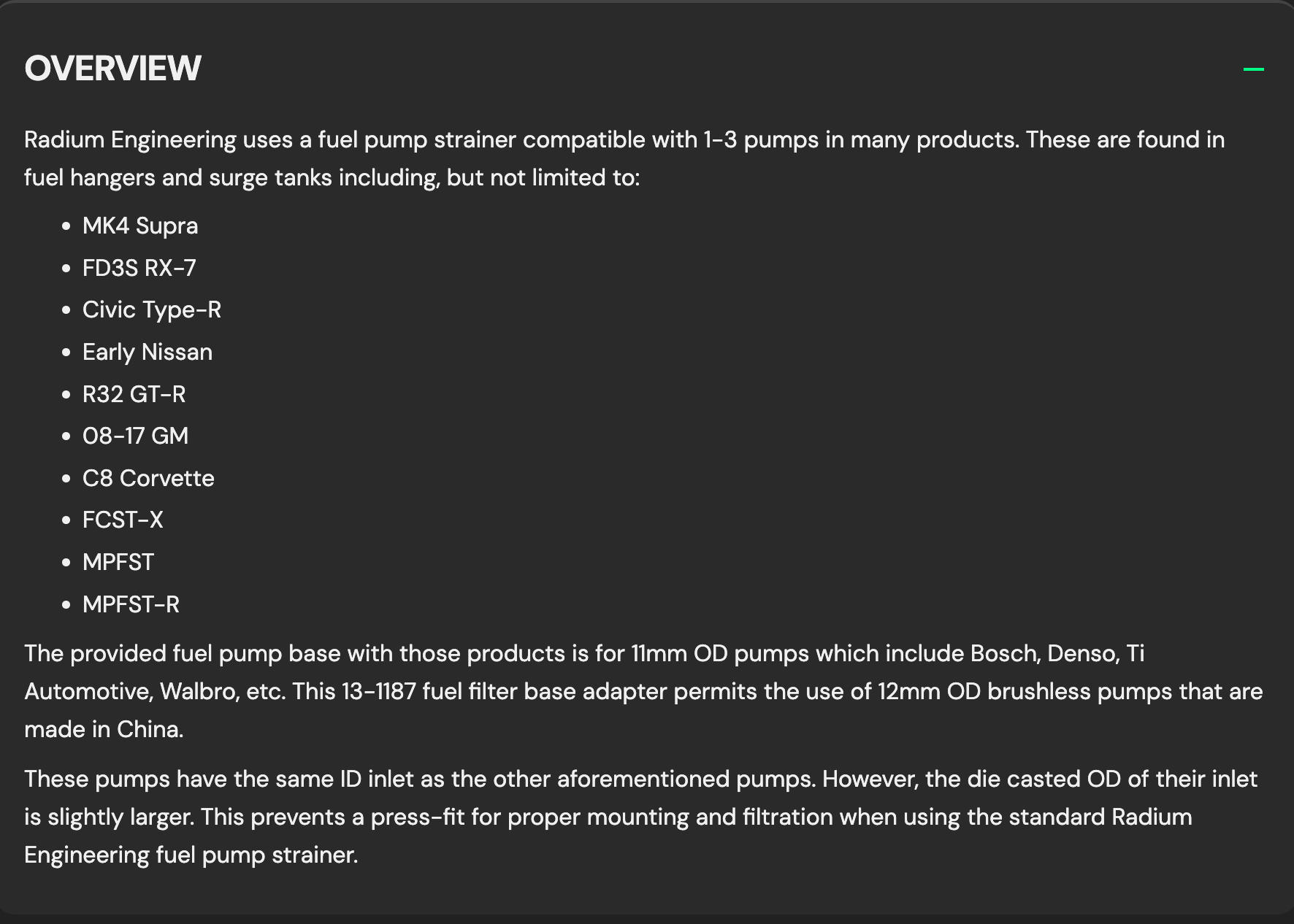

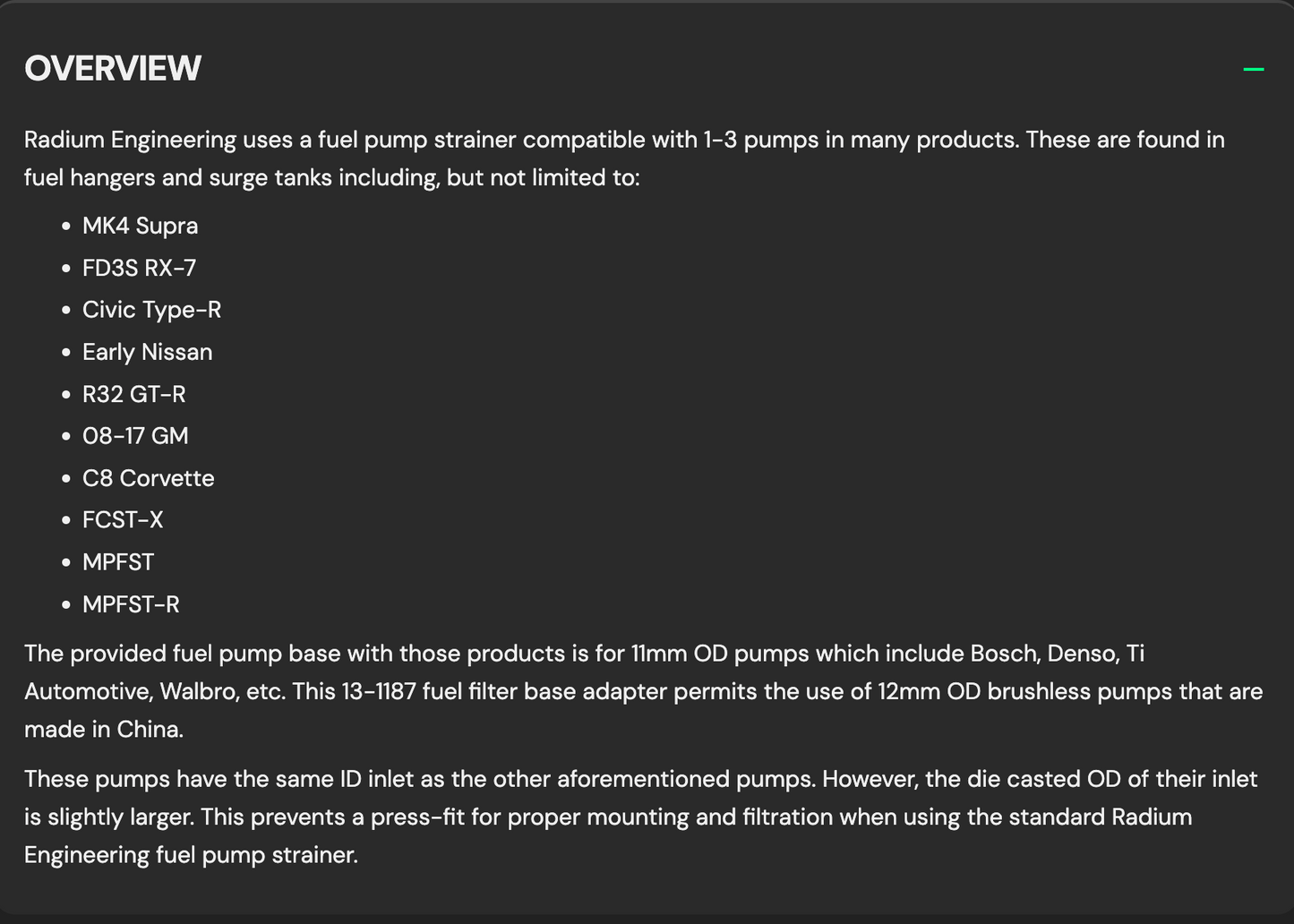

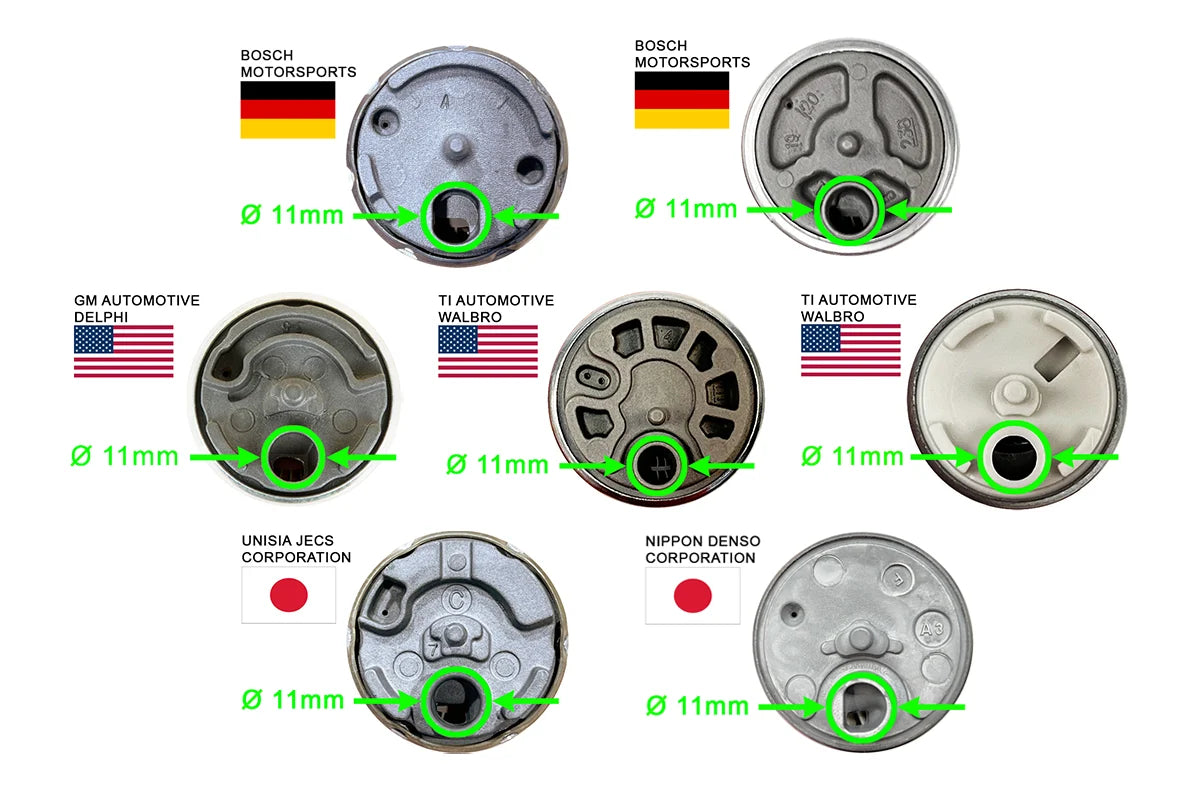

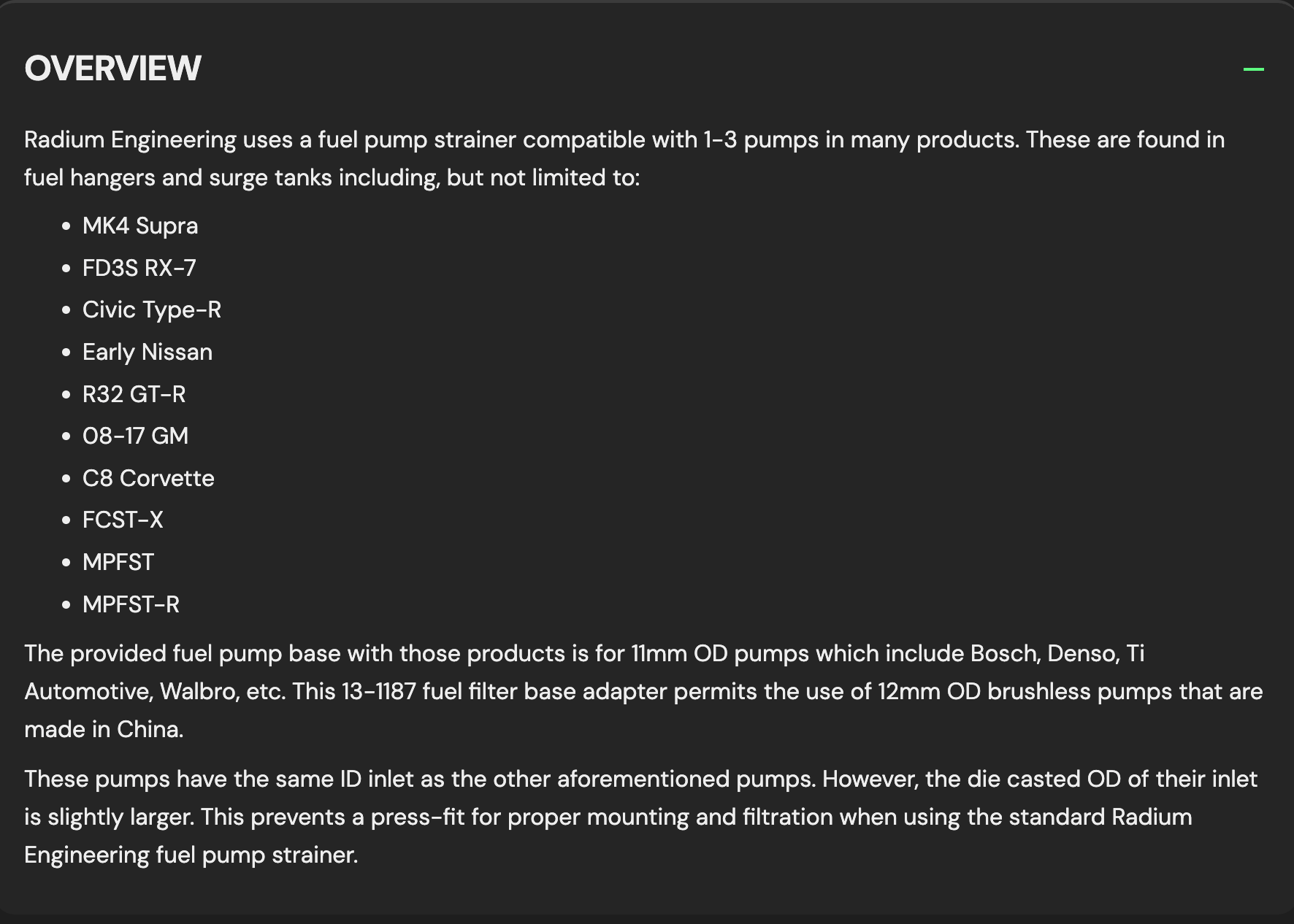

Radium Engineering uses a fuel pump strainer compatible with one to three pumps in many of its fuel hangers and surge tanks. The standard base supplied with these products suits 11mm OD pump inlets (Bosch, Denso, Ti Automotive, Walbro and similar).

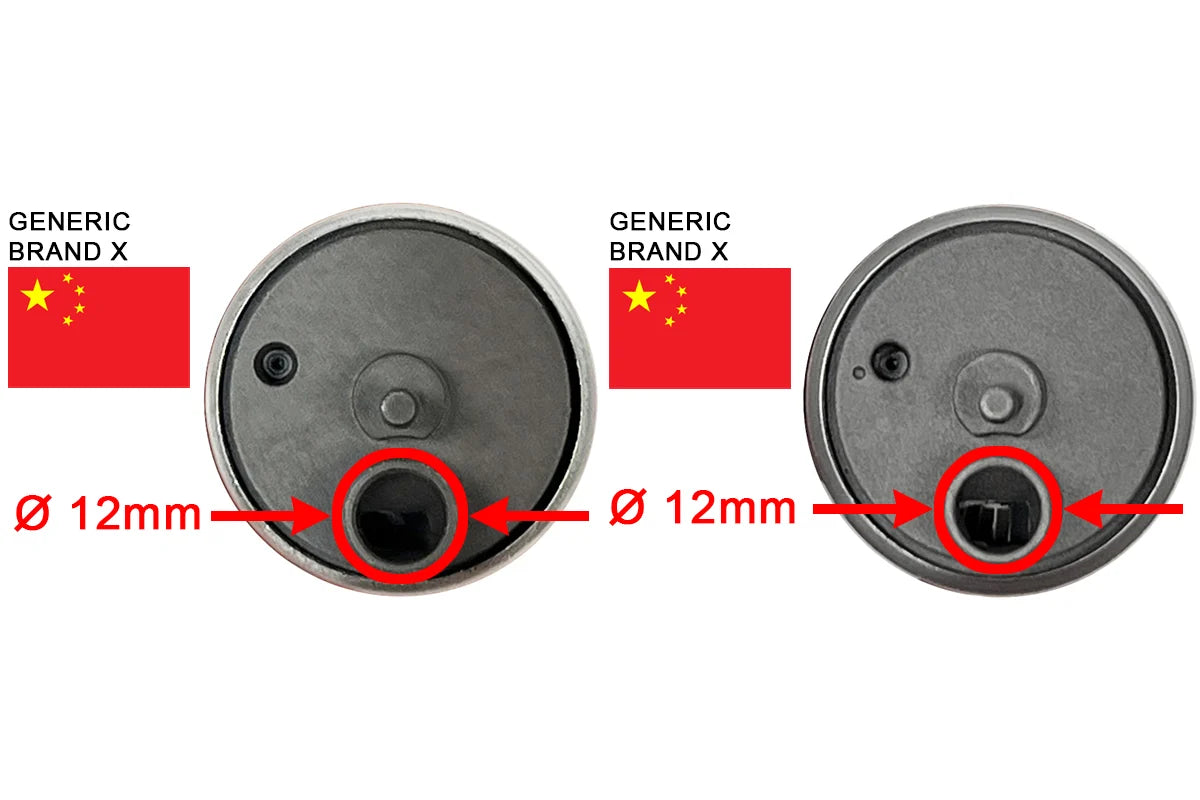

The 13-1187 base permits the use of 12mm OD brushless pumps made in China. These pumps share the same inlet ID as the standard pumps, but their die-cast inlet OD is slightly larger, which prevents a proper press-fit for mounting and filtration with the standard Radium strainer.

Key Features

• 12mm Inlet Fit: Restores a proper press-fit for 12mm OD brushless pump inlets

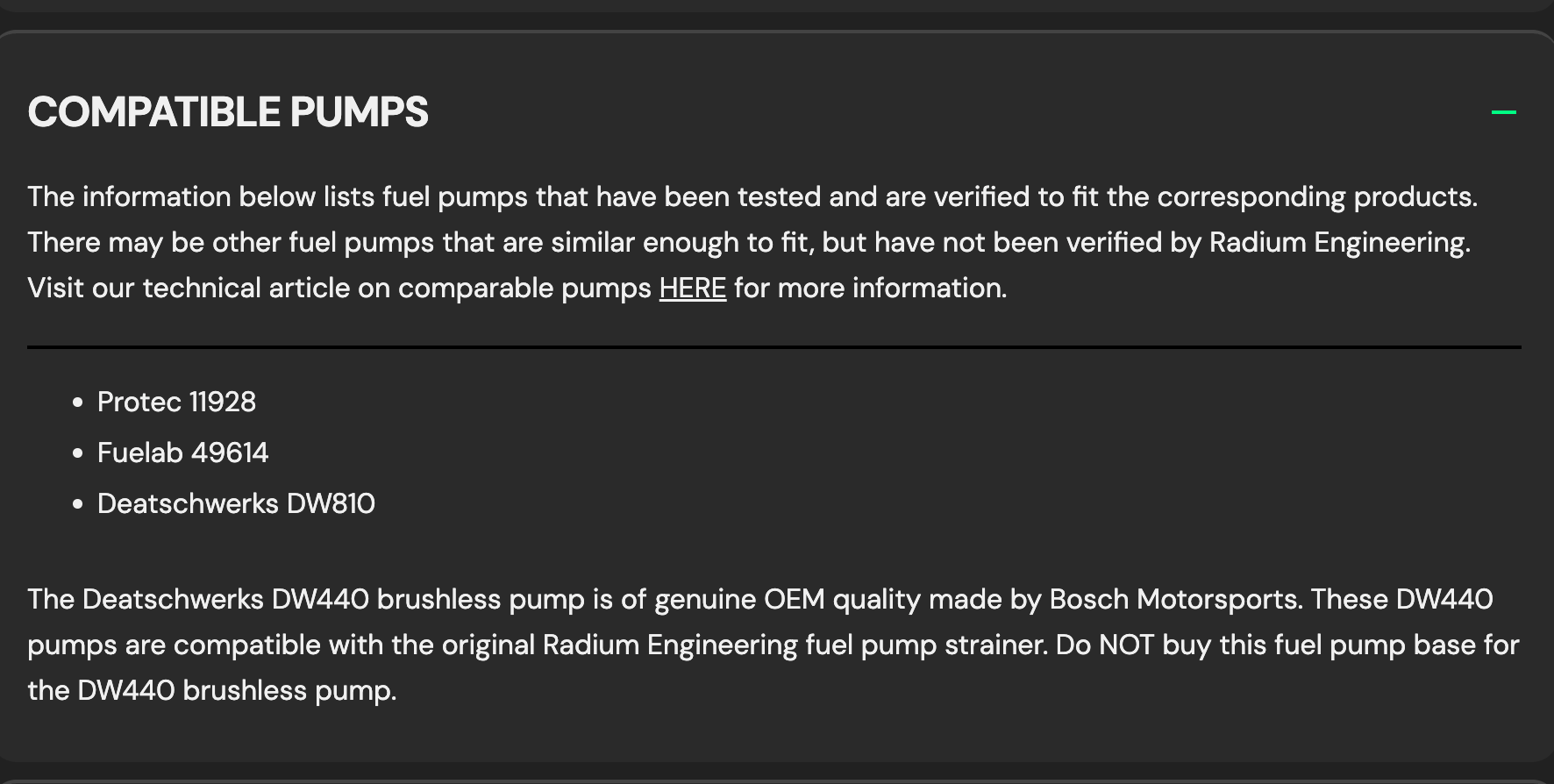

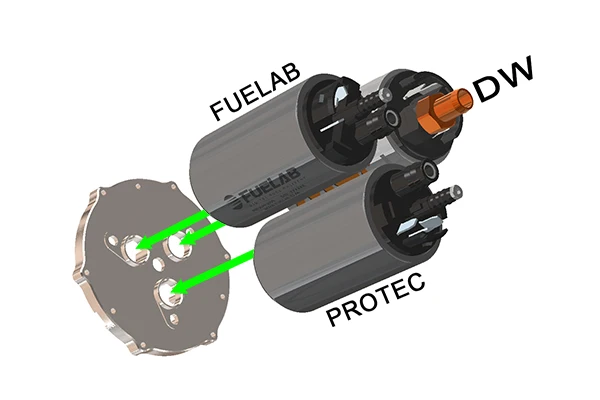

• Verified Pumps: Protec 11928, Fuelab 49614 and DeatschWerks DW810
• Billet Construction: Machined from 6061 aluminium
• Anodised Finish: Clear Type-II anodised

Important Notes

• Do NOT purchase this base for the DeatschWerks DW440 – it is a Bosch Motorsports-made pump that fits the original Radium strainer
• Other pumps may be similar enough to fit but have not been verified by Radium
• Check the product page of your Radium hanger or surge tank to confirm which pumps require this base

Vehicle Fitment

• Radium products using the 1–3 pump strainer, including (but not limited to): MK4 Supra, FD3S RX-7, Civic Type R, Early Nissan, R32 GT-R and 2008–2017 GM fuel hangers/surge tanks, C8 Corvette, FCST-X, MPFST and MPFST-R

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
