Radium Fuel Filter Mount, Cadillac CTS-V

Radium Fuel Filter Mount, Cadillac CTS-V

Application: Cadillac CTS (2008-2014) and CTS-V (2008-2015)
Part Type: Fuel filter mount
Part Number: 20-1327

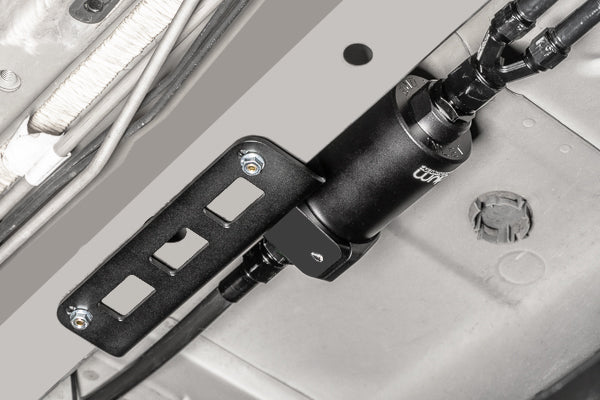

The Radium 20-1327 Fuel Filter Mount includes all the hardware required to install a Radium fuel filter in a Cadillac CTS or CTS-V. The bracket secures to the RH frame rail in the middle of the chassis using factory holes, so no permanent modifications are required.

One half of the billet aluminium clamp secures to the bracket and the opposing half clamps the filter with stainless steel bolts. The 60mm clamp also suits an external Bosch 0 580 254 044 fuel pump.

Key Features

• Factory Holes: Mounts to existing holes in the chassis
• No Permanent Modifications: Bolt-in installation
• 60mm Clamp: Anodised aluminium clamp, 60mm (2.36in) diameter
• Anodised Bracket: Anodised aluminium mounting bracket
• Stainless Hardware: Stainless steel mounting hardware

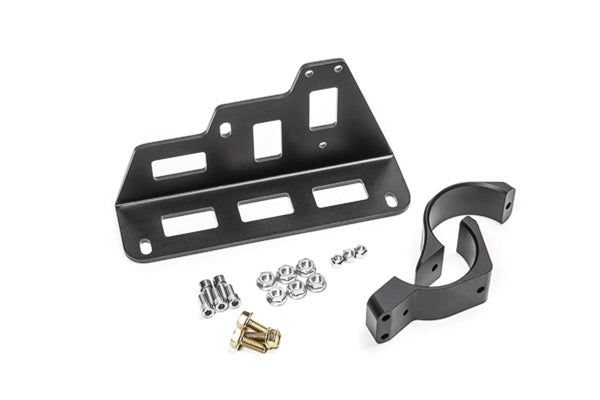

What's Included

• Anodised aluminium mounting bracket
• Anodised aluminium fuel filter clamp
• Stainless steel mounting hardware

Optional Parts

• Radium High Flow Fuel Filter (20-0220-03 / 20-0220-05) – Radium high-flow fuel filter to suit the 60mm clamp (sold separately)
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Cadillac CTS-V (20-1325-03) – CTS-V plumbing kit (stainless filter)
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Cadillac CTS-V (20-1325-05) – CTS-V plumbing kit (microglass filter)

Important Notes

• Fuel filter and 10AN ORB fittings are not included
• Aftermarket fuel lines and fittings must be configured separately
• The clamp also works with an external Bosch 0 580 254 044 fuel pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Cadillac CTS (2008-2014)
• Cadillac CTS-V (2008-2015)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
