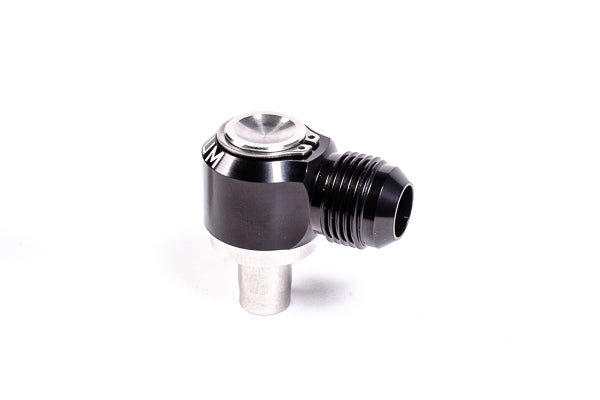

Radium 10AN Male Swivel Banjo 13.5mm Press Fit Fitting - Toyota 2JZ Exhaust

Radium 10AN Male Swivel Banjo 13.5mm Press Fit Fitting - Toyota 2JZ Exhaust

10AN male swivel banjo fitting with 13.5mm press fit for Toyota 2JZ exhaust manifolds. Engineered by Radium Engineering to provide a professional, leak-free connection for fuel rail plumbing on Toyota inline-six engines.

Compatibility

• Toyota 2JZ-GTE engines - exhaust manifold
• Toyota Supra (JZA80)
• Toyota Aristo (JZS147, JZS161)
• Toyota Chaser (JZX90, JZX100)
• Toyota Mark II (JZX90, JZX100)
• Toyota Soarer (JZZ30)

Key Features

• ✓ 13.5mm press fit diameter for Toyota 2JZ exhaust manifolds
• ✓ 10AN male swivel fitting for versatile hose routing
• ✓ Low-profile design with 19.1mm long snout
• ✓ Stainless steel and aluminum construction
• ✓ 360-degree swivel for optimal hose alignment
• ✓ Viton O-rings for high-temperature sealing
• ✓ Professional-grade motorsport component
• ✓ Anodized and laser engraved
• ✓ Simple press-fit installation - no drilling or welding required

Technical Specifications

• Application: Toyota 2JZ exhaust manifolds
• Part Number: 20-0409
• Construction: Stainless steel and aluminum
• Press Fit Diameter: 13.5mm
• Snout Length: 19.1mm
• Fitting Size: 10AN male swivel
• Includes: Banjo fitting, Viton O-rings

Applications

Ideal for Toyota 2JZ fuel rail installations requiring professional plumbing connections to the exhaust manifold. Perfect for high-performance and motorsport applications requiring reliable, leak-free fuel delivery in high-temperature environments.

Installation Note: Press fit installation requires proper tooling for secure, leak-free installation.
