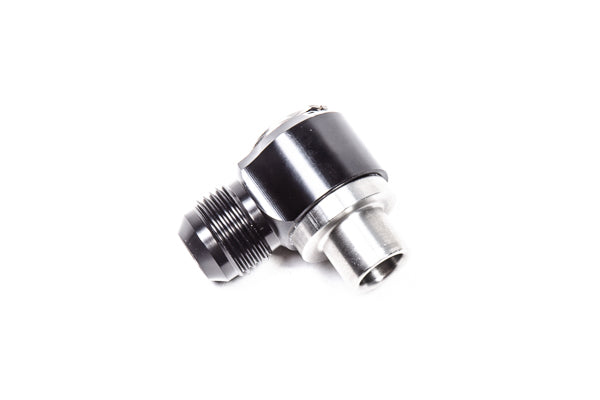

Radium 10AN Male Swivel Banjo 17.5mm Press Fit - Toyota 1JZ Non-VVTi (Exhaust)

Radium 10AN Male Swivel Banjo 17.5mm Press Fit - Toyota 1JZ Non-VVTi (Exhaust)

Low profile 10AN male swivel banjo fitting with 17.5mm press fit for Toyota 1JZ-GTE non-VVTi exhaust side valve cover. Engineered by Radium Engineering to provide a professional, leak-free connection for crankcase vent plumbing on Toyota inline-six engines.

Compatibility

• Toyota 1JZ-GTE non-VVTi engines - exhaust side valve cover
• Toyota Chaser (JZX90, JZX100)
• Toyota Mark II (JZX90, JZX100)
• Toyota Cresta (JZX90, JZX100)
• Toyota Soarer (JZZ30)
• Toyota Supra (JZA70)

Key Features

• ✓ 17.5mm press fit diameter for Toyota 1JZ non-VVTi exhaust valve cover
• ✓ Low profile 10AN male swivel fitting for versatile hose routing
• ✓ 13.6mm long snout for proper fitment
• ✓ Stainless steel and aluminum construction
• ✓ 360-degree swivel for optimal hose alignment
• ✓ Viton O-rings for reliable sealing
• ✓ Professional-grade motorsport component
• ✓ Anodized and laser engraved
• ✓ Simple press-fit installation - no drilling or welding required

Technical Specifications

• Application: Toyota 1JZ-GTE non-VVTi exhaust side valve cover
• Part Number: 20-0609
• Construction: Stainless steel and aluminum
• Press Fit Diameter: 17.5mm
• Snout Length: 13.6mm
• Fitting Size: 10AN male swivel
• Includes: Banjo fitting, Viton O-rings

Applications

Ideal for Toyota 1JZ-GTE non-VVTi crankcase ventilation systems requiring professional plumbing connections to the exhaust side valve cover. Perfect for catch can installations or custom PCV systems in high-performance and motorsport applications.

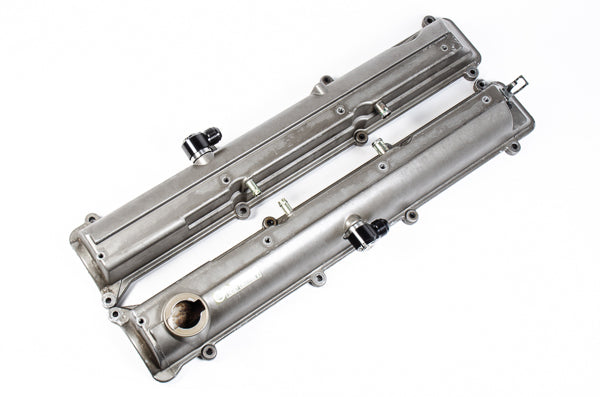

Installation Note: Direct replacement for the crankcase vent press-in located on the exhaust side valve cover. Press fit installation requires proper tooling for secure, leak-free installation.
