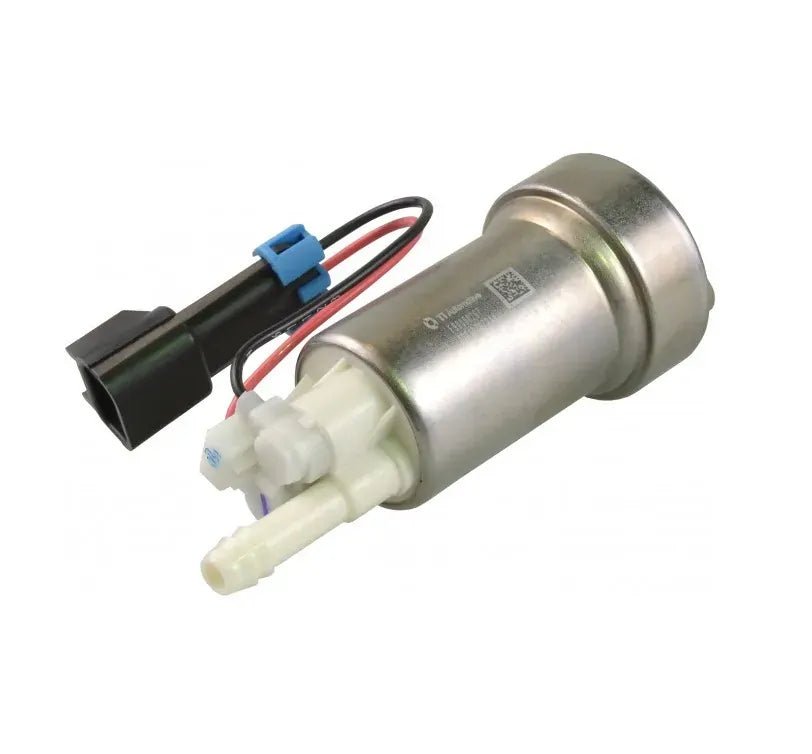

Walbro F90000285 525lph Fuel pump E85 Compatible

Walbro / TI Automotive 525 lph Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency that is 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023.

The Walbro 525lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.

Common names: Walbro 525, Hellcat
Flow rate: 525 lph @ 13.5v (3 bar)
E85 Compatible: Yes
Max current draw: 25A (Make sure your wiring can handle this beast!)
Body Diameter: 39mm / 50mm
Length: 131mm
Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
Pressure Relief: 112psi
Check Valve: Yes (Inbuilt)
