TI Automotive Brushless Fuel Pump Kit BKS1002 - Universal

TI Automotive Brushless Fuel Pump Kit BKS1002 - Universal

Application: Universal – in-tank, high-pressure applications
Part Type: Fuel Pumps
Part Number: BKS1002

The TI Automotive BKS1002 is a high-pressure, in-tank brushless fuel pump kit and the highest-flowing pump in the TI Automotive range. Built around the E5LM brushless screw pump, it supports 1,000+ hp on naturally aspirated and boosted engines, running on petrol or flex fuel.

The BKS1002 uses the same pump, inlet filter and harness as the BKS1001 kit, but is supplied without a controller – ideal if you already run a suitable brushless pump controller.

Key Features

• Brushless screw pump: TI Automotive E5LM high-pressure, high-flow design
• High flow: rated 550 LPH; supports 1,000+ hp
• Fuel compatibility: petrol or flex fuel (E85)
• Reduced current draw: lower system current compared to brushed pumps
• Variable speed: PWM controlled – run the pump only as hard as the engine needs

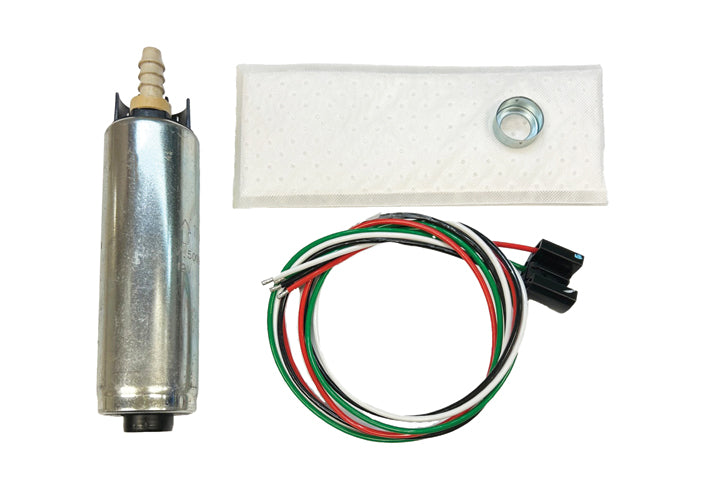

What's Included

• E5LM brushless fuel pump
• High-performance inlet filter
• 3' (approx. 0.9 m) in-tank wiring harness

Add-On / Optional Parts

• Brushless pump controller (e.g. TI Automotive BCT1001) – required, sold separately (contact Coore)

Important Notes

• Controller not included. The pump must be driven by a sensorless 6-step commutation controller or another suitable method (sinusoidal or Field Oriented Control).
• Professional installation recommended.

Vehicle Fitment

• Universal – in-tank installation in custom or performance fuel systems

Not sure if this suits your vehicle? Email sales@coore.com.au
