Radium Engineering Remote Mount Filler Adapter - 24AN

Radium Engineering Remote Mount Filler Adapter - 24AN

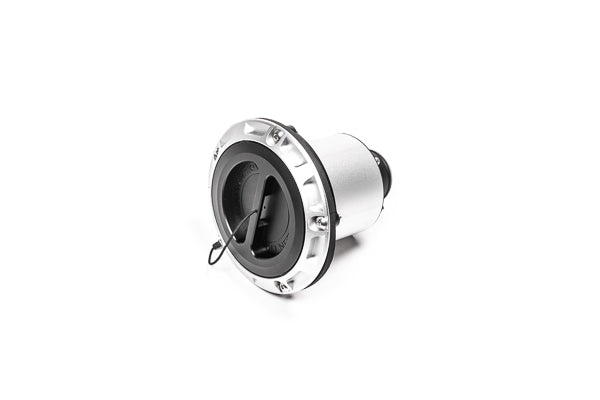

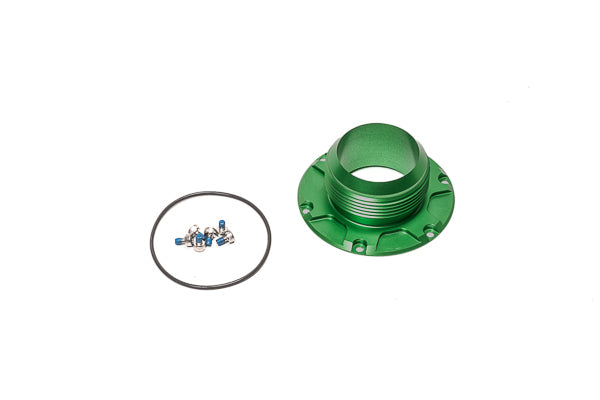

The Radium Engineering Remote Mount Filler Adapter is a precision-engineered component designed to connect remote-mounted fill necks to fuel cells or surge tanks via large-diameter fuel lines. This 24AN adapter provides a secure, leak-free connection between the fill neck assembly and the fuel transfer line, making it ideal for motorsport applications where the fill neck needs to be positioned away from the fuel cell for optimal chassis packaging.

Part Number

• 20-1008 - Remote Mount Filler Adapter, 24AN

Key Features

• 24AN Connection: Large-diameter fitting for high-flow fueling applications
• Remote Mount Design: Allows fill neck to be positioned away from fuel cell
• CNC-Machined Construction: Precision-machined from 6061-T6 aluminum
• Anodized Finish: Durable, corrosion-resistant black anodized coating
• Leak-Free Design: O-ring sealing for reliable, leak-free connections
• Flexible Installation: Enables optimal fill neck positioning for chassis clearance
• Motorsport Grade: Built to withstand the demands of competition use

Specifications

• Connection Size: 24AN (-24)
• Material: 6061-T6 aluminum
• Finish: Black anodized
• Application: Remote mount fill neck systems
• Hose Compatibility: -24 AN braided hose

Common Applications

• Remote fill neck installations on fuel cells and surge tanks
• Custom fuel system builds with chassis clearance constraints
• Race car fueling systems requiring flexible positioning
• Motorsport applications with quick-fill requirements
• High-performance builds with large-diameter fuel lines

Note: Requires -24 AN braided hose and compatible remote mount fill neck (sold separately). Ensure proper O-ring installation to prevent fuel leakage.

Why Radium Engineering?

• ✓ Engineered in the USA: Designed and manufactured in Washington State
• ✓ Motorsport Proven: Trusted by professional race teams worldwide
• ✓ Premium Materials: Aircraft-grade aluminum construction
• ✓ Perfect Fitment: Application-specific design ensures hassle-free installation
• ✓ Performance Focused: Engineered for demanding motorsport applications

Lead Time: Most Radium products ship within 2-3 business days from our Australian warehouse. Some items may require ordering from the USA with extended lead times. Contact us for current stock availability.

Professional installation recommended. Ensure proper O-ring installation and secure connections to prevent fuel leakage during operation.
