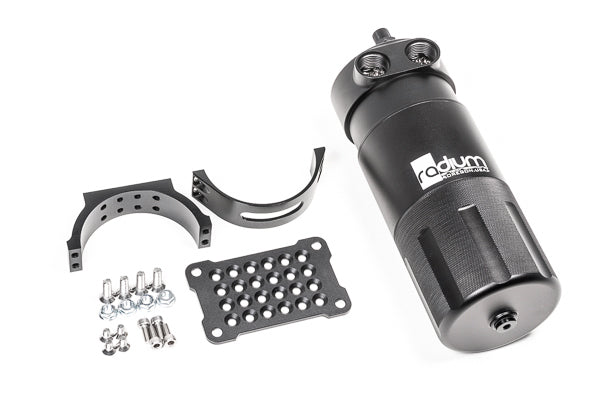

Radium Competition Catch Can, VTA, 2-Port, Extra Large (20-0771)

The Radium Engineering 20-0771 Competition Catch Can (CCC) is the extra large, vent-to-atmosphere (VTA) catch can designed to meet and exceed the 1 quart minimum capacity requirements mandated by major motorsport sanctioning bodies including SCCA, NASA, and Formula Drift. With a full 1qt (0.9L / 32 fl oz) capacity and dual 10AN ORB inlets, this is the definitive competition catch can for dual bank (V-engine) applications where maximum capacity is required.

Note: This is a VTA (vent to atmosphere) design. For a competition catch can that recirculates clean air back into the intake (VTE), see Radium 20-0071 and 20-0072. For the Large VTA version, see Radium 20-0772. Existing 20-0772 Large owners can upgrade to this XL version using extension kit 20-0149.

How It Works

The VTA CCC features one giant non-restrictive outlet that is over 183% larger in cross-sectional area than the 10AN inlet inner diameter. This increase in volume slows airflow, allowing oil contaminants to fall out of suspension. A diffuser traps contaminants and allows oil sludge to fall back into the can — preventing overspray in the engine bay. The dual-stage stainless steel filtration media (located in both the inlet and outlet chambers) flows freely without restriction, while providing 46.2% more filtration media than the VTE CCC and 149.7% more than the standard catch can.

Key Features

• 1qt (32 fl oz) capacity — meets and exceeds SCCA, NASA, and Formula Drift minimum requirements
• Dual 10AN ORB inlets — two adjacent ports for dual bank (V-engine) crankcase ventilation
• 183%+ larger outlet than inlet ID — slows airflow for maximum contaminant separation
• Dual-stage stainless steel filtration — inlet and outlet chambers, 46.2% more media than VTE CCC
• Diffuser design — traps oil sludge in the can, prevents engine bay overspray
• 4AN ORB drain port — bottom-mounted for petcock drain valve (see 20-0024)
• O-ring sealed dipstick — quick fluid level check without disassembly
• CNC machined aluminium body — unscrews for easy serviceability and draining
• 360° rotating bracket — full rotation for flexible chassis mounting
• M6x1mm chassis mounting hardware included
• Upgradeable from Large — 20-0772 Large owners can convert using extension kit 20-0149
• Single port engines — use plug 14-0351 to block the unused inlet port

Specifications

• Inlet threads: 10AN ORB (7/8"-14) — x2
• Drain threads: 4AN ORB (7/16"-20)
• Outer diameter: 3.45"
• Height: 9.0" (229mm)
• Weight: 2.2 lbs (with all hardware)
• Volume: 1qt / 0.9L / 32 fl oz

Important Notes

• Lower body half unscrews for draining — no tools required
• Dipstick unscrews for quick oil level check
• Some engines may require multiple catch cans depending on PCV system design
• Not designed for use with aftermarket crankcase vacuum pumps
• Sold without fittings — hose not included
• Single port engines: use plug 14-0351 to block the unused inlet

Available Part Numbers

• 20-0771 — VTA Competition Catch Can, Extra Large (this can — 1qt)
• 20-0772 — VTA Competition Catch Can, Large (0.625qt)
• 20-0149 — Extension Kit — upgrades 20-0772 Large to XL (20-0771)
• 20-0071 / 20-0072 — VTE Competition Catch Can (recirculating, closed loop)
• 14-0351 — Inlet port plug (for single port engines)
• 20-0024 — Petcock drain valve (for 4AN ORB drain port)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ Meets and exceeds SCCA, NASA, and Formula Drift 1qt minimum capacity requirements
• ✔ Dual-stage stainless filtration — maximum separation, zero flow restriction
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Sold without fittings — hose not included. Not compatible with aftermarket crankcase vacuum pumps. For VTE (closed loop) version, see 20-0071 / 20-0072. Large version owners can upgrade using extension kit 20-0149.
