Radium Fuel Pump Hanger, Honda Civic EG / EK / Integra DC2 (1992-2001)

Radium Fuel Pump Hanger, Honda Civic EG / EK / Integra DC2 (1992-2001)

Application: Honda Civic (1992–2000) and Integra (1994–2001)
Part Type: Fuel pump hanger (single pump, dual pump capable)
Part Number: 20-0790-00, 20-0792-00

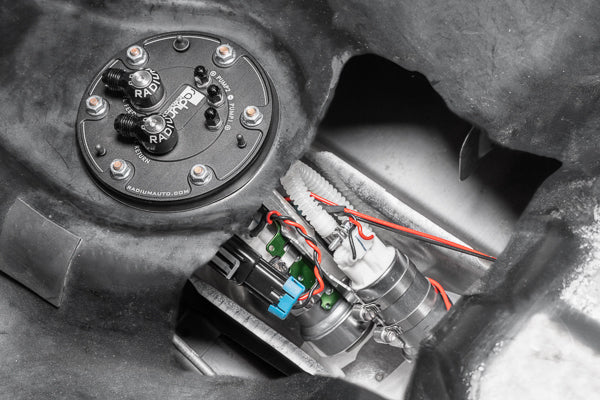

The Radium Fuel Pump Hanger replaces the stock fuel pump assembly in the 1992–2000 Honda Civic and 1994–2001 Integra with no cutting or modification of the sheet metal or tank. The pump sits in the factory collector bowl for fuel starvation protection, and a second pump can be added with the Radium Dual Pump Add-On.

The top plate outlet is tapped 8AN ORB with fittings for both aftermarket and OEM feed lines, and the return is tapped 4AN ORB with fittings for the OEM or an aftermarket return line. All fittings clear the fuel pump access cover.

Key Features

• Drop-In: No cutting or tank modification required
• Dual Pump Capable: Add a second pump with the Radium Dual Pump Add-On
• Pump Outlet: 8AN ORB (3/4"-16) female; preinstalled 6AN male fitting, 8.5mm barb and SAE quick connect adaptors included
• Return: 4AN ORB (7/16"-20) female; preinstalled 6.5mm barb plus 6AN male fitting
• Electrical: Anti-rotation stainless high-current studs, hermetically sealed, non-conductive anodised acorn nuts, ETFE in-tank wiring
• Filter Sock: Fuel pump filter sock included
• Fuel Compatibility: Gasoline, methanol and E85

Available Configurations

• 20-0790-00: AEM 50-1000, AEM 50-1200, AEM 50-1230*, AEM 50-1235* or Walbro GSS342
• 20-0792-00: Walbro F90000267, F90000274, F90000285 or F90000295*

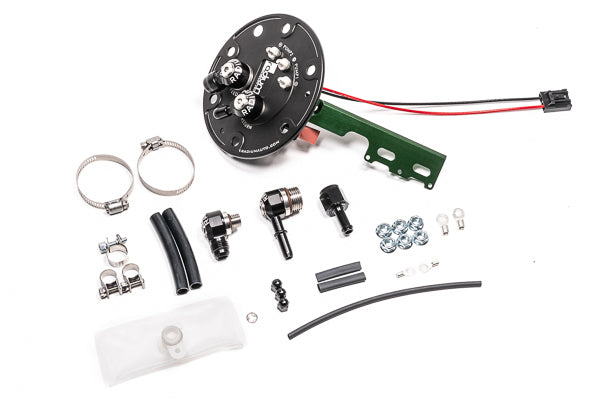

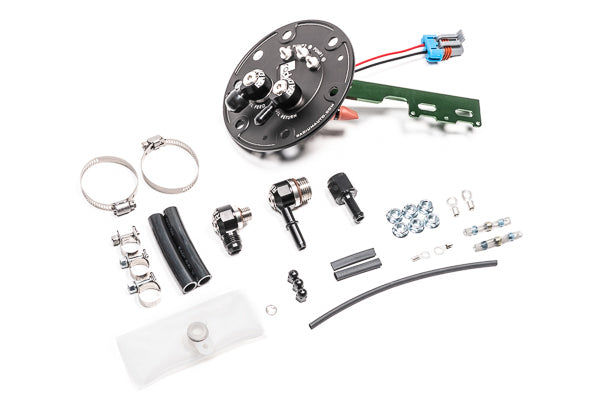

What's Included

• Partially assembled fuel pump hanger
• Hardware for one fuel pump
• Electrical parts for external top-hat wiring
• 6AN male outlet fitting (preinstalled), 8.5mm barbed and SAE quick connect outlet adaptors
• 6.5mm barbed return fitting (preinstalled) and 6AN male return fitting
• Fuel pump filter sock

Optional Parts

• Radium Dual Fuel Pump Hanger Add-On, Honda Civic EG / EK / Integra DC2 (20-0796-00 / 20-0797-00) – dual pump add-on (20-0796-00 for 20-0790-00, 20-0797-00 for 20-0792-00)
• Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb (20-1533) – check valve for AEM 50-1230 / 50-1235 (not usable on a second pump)
• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – check valve for Walbro F90000295 (not usable on a second pump)

Important Notes

• Fuel pumps not included
• *AEM 50-1230, AEM 50-1235 and Walbro F90000295 have no check valve – add 20-1533 or 20-1534 if required
• 8.5mm barbed outlet adaptor reuses the OEM feed line on 1994–95 Integra / 1992–95 Civic; SAE quick connect reuses it on 1996–2001 Integra / 1996–2000 Civic
• 1996–2001 Integra and 1996–2000 Civic require the OEM return hose to be extended
• A single Walbro GSS342 (255 LPH) can reuse the OEM wiring; upgraded wiring is recommended so pumps receive full power – one wiring kit per pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic (1992–2000) – all models and trims, LHD and RHD
• Honda / Acura Integra (1994–2001) – all models and trims, LHD and RHD

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
