Radium Injector Seats for Top Feed Conversion Fuel Rails - Nissan SR20DET/RB25DET
Radium Injector Seats for Top Feed Conversion Fuel Rails - Nissan SR20DET/RB25DET
SKU: SKU: 20-0160-04
More info
Radium Injector Seats — Top Feed Conversion | Nissan SR20DET / RB25DET / KA24DE
Part Numbers: 20-0160-04 / 20-0160-06 / 20-0161-04 / 20-0161-06 | Application: Nissan SR20DET, RB25DET, KA24DE

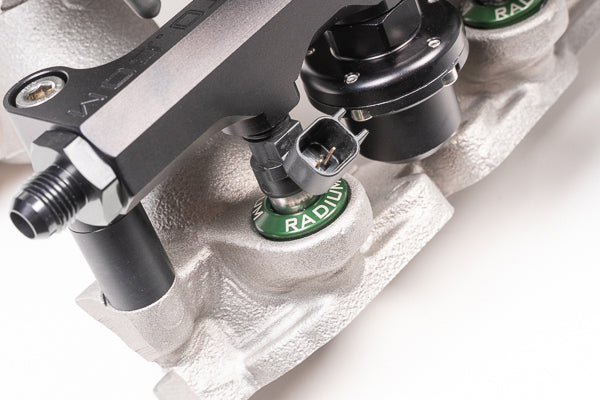

Converting from OEM side-feed injectors to top-feed? These are the same CNC-machined aluminium injector seats used in Radium Engineering's own Nissan fuel rail kits. They press directly into the intake manifold injector ports and seal via the included Viton O-ring, providing a clean, leak-free foundation for top-feed injectors with a 14mm lower O-ring — the common standard for aftermarket injectors.

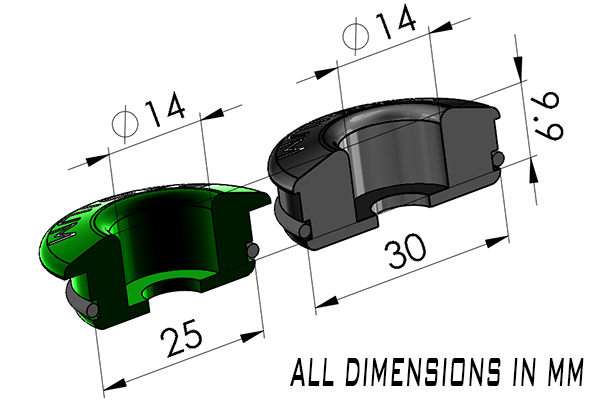

Available in two sizes to suit different manifold bore diameters — measure your manifold's injector counterbore before ordering. Size is not interchangeable between applications.

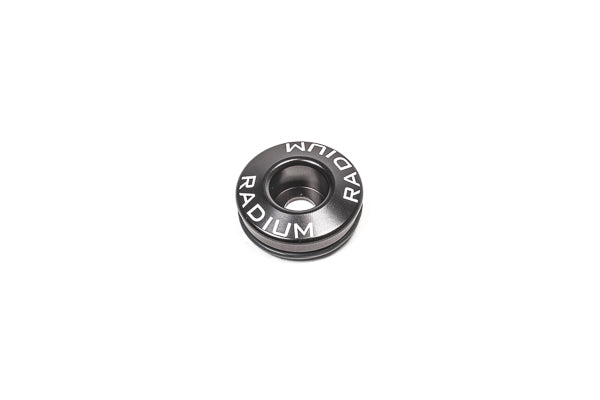

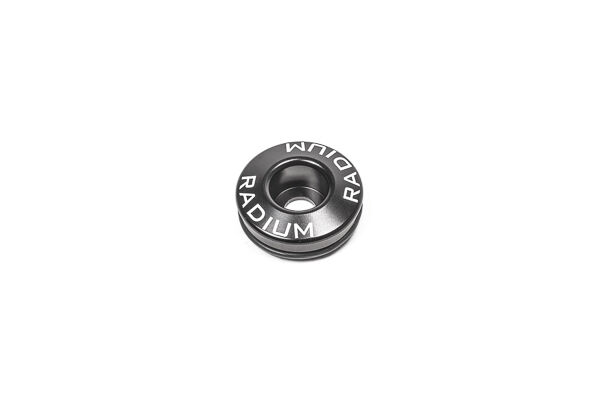

Colour guide: 30mm seats are black anodised. 25mm seats are Radium green anodised. Both are laser etched with the Radium logo.
Application Guide
| Part Number | Size | Qty | Finish | Suits |
|---|---|---|---|---|
| 20-0160-04 | 30mm | Set of 4 | Black anodised | KA24DE (S13/S14), SR20DET (S13) |
| 20-0160-06 | 30mm | Set of 6 | Black anodised | KA24DE (S13/S14), SR20DET (S13) |
| 20-0161-04 | 25mm | Set of 4 | Green anodised | RB25DET, SR20DET (S14/S15), SR20VE FWD |
| 20-0161-06 | 25mm | Set of 6 | Green anodised | RB25DET, SR20DET (S14/S15), SR20VE FWD |
Key Features
- ✓ CNC-machined 6061 aluminium — same seats used in Radium Nissan fuel rail kits
- ✓ Bright-dip anodised finish with laser etched Radium logo
- ✓ Viton O-rings included — compatible with E85, methanol, and all fuel types
- ✓ 14mm lower injector O-ring bore — suits common aftermarket top-feed injectors
- ✓ Press-fit installation into OEM intake manifold injector ports
Installation
- Thoroughly clean any dirt or debris from the intake manifold injector seat bores.
- Lubricate the Viton O-rings with clean engine oil.
- Press each seat firmly into the manifold injector port until fully seated — use a small rubber mallet if required.
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined billet aluminium components for precision fitment
- ✅ Trusted by tuners and race teams in real-world high-power builds
- ✅ Same seats used in Radium’s own Nissan fuel rail kits — proven fitment
- ✅ Compatible with E85, pump petrol, methanol, and flex fuel configurations
Fast shipping available throughout Australia. Lead times may vary — contact us for current availability.
