Radium Fuel Vent Charcoal Canister

Radium Fuel Vent Charcoal Canister

SKU:  20-1828-00

$499.00
$499.00
In Stock
Taxes included.
Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7
View full details

More info

Radium Fuel Vent Charcoal Canister

Universal fuel vent charcoal canister engineered by Radium Engineering to capture and filter fuel vapours from vented fuel systems. Utilizing activated charcoal filtration, this compact canister prevents fuel vapour emissions while maintaining proper tank ventilation for motorsport and high-performance applications.

Key Features

  • ✓ Activated charcoal filtration captures fuel vapours
  • ✓ Prevents fuel vapour emissions for track compliance
  • ✓ Compact design for tight installations
  • ✓ Universal fitment with -10AN ORB ports
  • ✓ CNC-machined billet aluminum construction
  • ✓ Anodized finish for corrosion resistance
  • ✓ Serviceable design with replaceable charcoal element
  • ✓ E85 and all fuel types compatible
  • ✓ Professional-grade motorsport component

Technical Specifications

  • Application: Universal - fuel vent systems
  • Part Number: 20-1828-00
  • Construction: CNC-machined billet aluminum
  • Ports: -10AN ORB inlet/outlet
  • Filtration: Activated charcoal element
  • Fuel Compatibility: Gasoline, E85, and alternative fuels

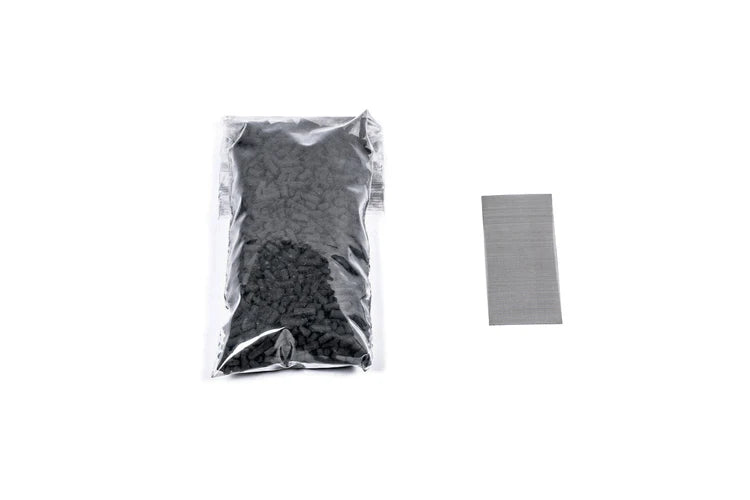

  • Service Kit: 20-1828-SK (sold separately)

Applications

Ideal for vented fuel systems requiring vapour control for track compliance and environmental regulations. Perfect for fuel cells, surge tanks, and custom fuel systems where preventing fuel vapour emissions is critical for safety and regulatory compliance.

Benefits

  • Meets track day vapour emission requirements
  • Prevents fuel smell in cabin and paddock
  • Protects environment from fuel vapour emissions
  • Maintains proper fuel tank ventilation
  • Serviceable design reduces long-term costs

Important Note: Charcoal element requires periodic replacement. Service kit 20-1828-SK available separately. Fittings and hoses sold separately.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.

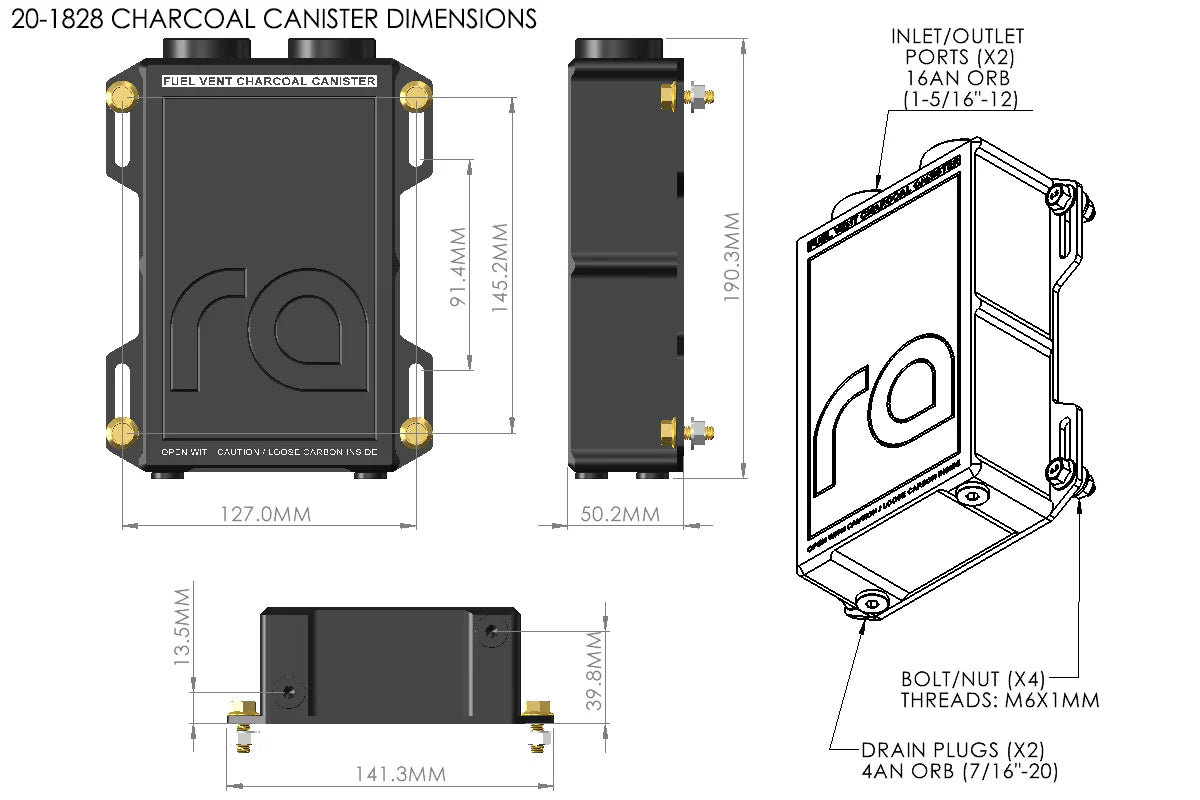

SPECIFICATIONS

The fuel vent charcoal canisters are CNC machined from 6061 aluminum. They are type-II anodized for corrosion resistance.

The preassembled vibratory-packed activated carbon resides inside a 150 micron strainer and an anodized aluminum baffle. This prevents any loose carbon media debris from escaping the canister.

For high flow fuel venting, 16AN ORB (1-5/16"-12) female ports are featured on all fuel vent charcoal canister kits. These ports can be used interchangeably as the inlet or outlet.

To drain any unwanted fuel from the canister, two 4AN ORB (7/16"-20) female ports are machined at the bottom with preinstalled plugs. Depending on mounting orientation, one of these ports can be used if a Petcock Drain kit is installed.

Install Instrcutions

Charcaol Canister
