Radium Fuel Rail, Ford Barra (All)

Radium Fuel Rail, Ford Barra (All)

Application: Ford Barra inline-6 – Falcon BA / BF / FG (turbo and non-turbo)
Part Type: Billet fuel rail
Part Number: 20-1536

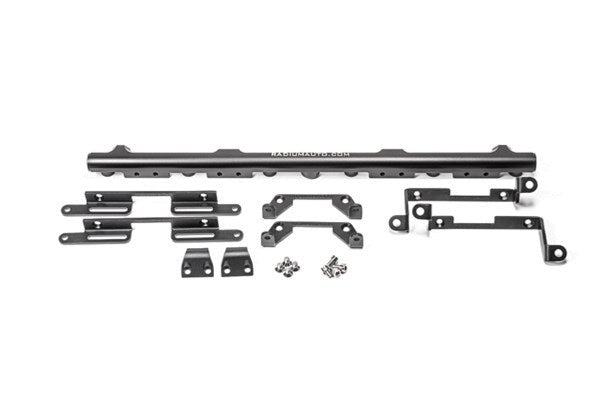

The Radium 20-1536 Fuel Rail is a high-flow upgrade rail for the Ford Barra inline-six. It is CNC machined from extruded 6063 aluminium, black anodised and laser etched, with a large 17.5mm (0.69in) centre bore for optimal flow.

The 20-1536 covers all Barra variants, replacing Radium's earlier 20-0536-01 (BA-BF Turbo), 20-0536-02 (FG Turbo) and 20-0536-03 (FG Non-Turbo) rails. The ports are tapped for 8AN ORB, and the rail is compatible with all fuel types including E85.

Key Features

• High Flow: Large 17.5mm (0.69in) centre bore
• Construction: CNC machined extruded 6063 aluminium, black anodised, laser etched
• 8AN ORB Ports: Tapped for 8AN ORB fittings
• All Barra Variants: One rail for BA/BF Turbo, FG Turbo and FG Non-Turbo
• Fuel Compatibility: All fuel types including E85

Important Notes

• This is an upgrade rail – OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles)
• Radium does not make injector recommendations – consult your tuner for brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• Fittings, regulators, gauges and the connection to the factory fuel pipes are sold separately
• Fittings must be selected to suit the application – allow ample clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Falcon BA – Barra Turbo
• Ford Falcon BF – Barra Turbo
• Ford Falcon FG – Barra Turbo
• Ford Falcon FG – Barra Non-Turbo

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
