Radium Fuel Pump Adapter For Walbro F90000267 / F90000274 Pumps Only

Radium Fuel Pump Adapter For Walbro F90000267 / F90000274 Pumps Only

Application: TI Automotive E5LM (BKS1000 / BKS1001), Walbro/TI F90000295, Bosch Motorsport BR540, DeatschWerks DW400 (pre May 2019)
Part Type: Fuel pump outlet adapter with check valve, 6AN male
Part Number: 20-0598

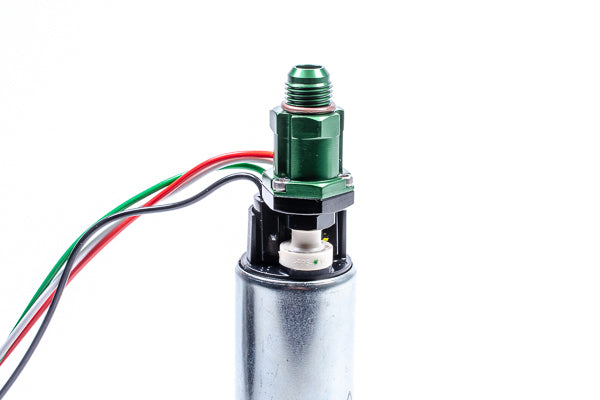

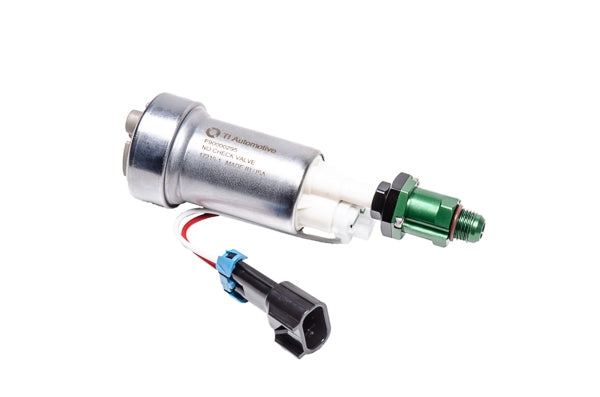

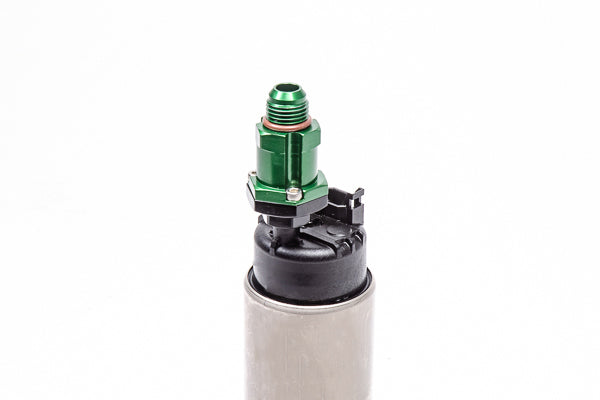

The Radium Engineering check valve adapter fits the outlet of compatible fuel pumps and converts it to a 6AN male connection. It replaces the standard integrated check valve, which is a significant flow restriction – lowering the restriction allows the pump to run at a lower current, keeping fuel cooler and reducing the risk of cavitation.

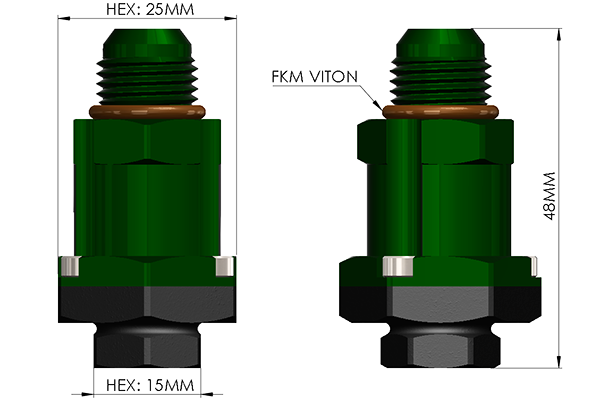

The adapter is machined from billet aluminium and held together with a stainless steel retainer and bolts, with a stainless steel plunger and spring forming the one-way valve. FKM O-rings provide a leak-free seal and E85 compatibility.

Key Features

• Low Restriction: 15 LPH restriction vs 46-76 LPH for a standard integrated check valve
• Lower Current Draw: 0.5A vs 3.2-4.8A for a standard check valve
• 6AN Male Outlet: Converts the pump outlet to 6AN male
• Stainless Valve: Stainless steel plunger and spring
• Billet Aluminium: Anodised top and base with stainless retainer and bolts
• E85 Compatible: FKM O-rings throughout

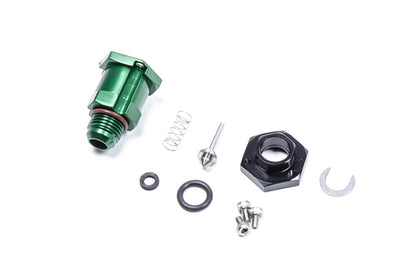

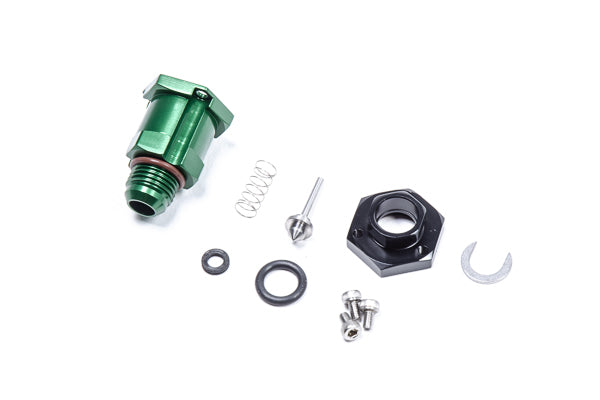

What's Included

• Anodised aluminium 6AN male top
• Anodised aluminium bottom base
• Check valve plunger with FKM O-ring
• 1x Additional FKM O-ring
• 2x Half-moon retainers
• Check valve spring
• Stainless steel hardware

Important Notes

• Specific to the pumps listed under Vehicle Fitment – the adapter may physically fit other pumps, but many of those have internal check valves and should use Radium's outlet adapters without check valve
• Inspect the pump outlet hose barb ridges before ordering – damaged or out-of-round ridges may prevent the O-ring from sealing
• A 10mm barb version (20-0798) is also available
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• TI Automotive E5LM (BKS1000 Brushless Controller Kit)
• TI Automotive E5LM (BKS1001 Brushless Controller Kit)
• Walbro / TI Automotive F90000295
• Bosch Motorsport BR540
• DeatschWerks DW400 (pre May 2019)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
