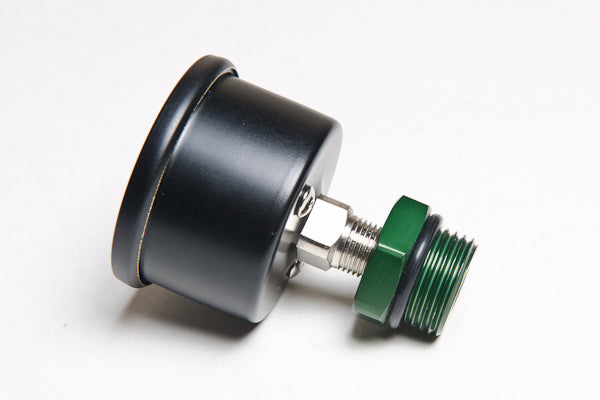

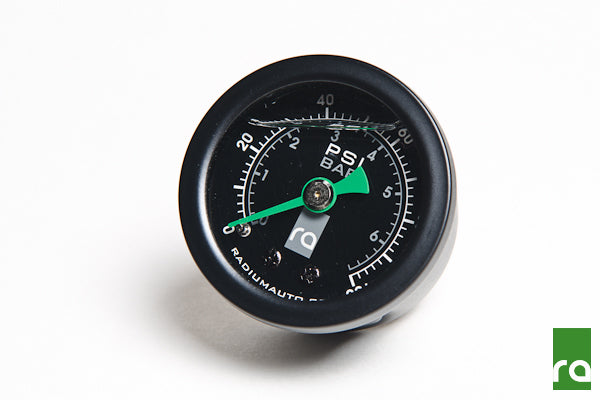

Radium Fuel Pressure Gauge 0-100psi w/8AN ORB Adaptor

Radium Fuel Pressure Gauge 0-100psi w/8AN ORB Adaptor

High-accuracy fuel pressure gauge with 8AN ORB adapter engineered by Radium Engineering for all fueling applications. This professional-grade gauge features a silicone-filled dial with acrylic lens, reading from 0 to 100psi (0 to 6.9 BAR) with ±2% accuracy, complete with 8AN ORB adapter for easy installation.

Key Features

• ✓ 0 to 100psi (0 to 6.9 BAR) range
• ✓ ±2% accuracy for precise readings
• ✓ Silicone-filled dial prevents needle vibration
• ✓ Acrylic lens for clear visibility
• ✓ Rugged stainless steel case
• ✓ Includes 8AN ORB adapter
• ✓ Black bezel and housing

Technical Specifications

• Part Number: 20-0075
• Pressure Range: 0-100psi (0-6.9 BAR)
• Accuracy: ±2%
• Case Size: 1-5/8" OD steel case (1-3/4" OD bezel)
• Lens: Acrylic
• Dial Fill: Silicone fluid
• Fitting: Nickel plated male 1/8" NPT
• Includes: 8AN ORB adapter
• Finish: Black bezel and housing
• Application: Universal

Applications

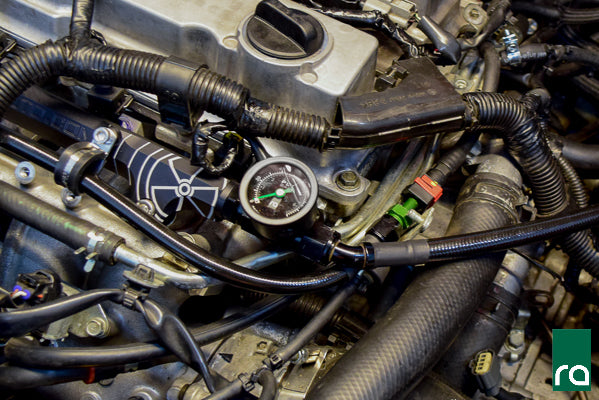

Ideal for monitoring fuel pressure in all fueling applications with 8AN ORB ports. Perfect for motorsport, track, or high-performance street builds where accurate fuel pressure monitoring is critical for engine performance and reliability.

Benefits

• High accuracy (±2%) ensures precise pressure readings
• Silicone-filled dial prevents needle vibration for easy reading
• Acrylic lens provides clear visibility
• Rugged stainless steel construction for durability
• 8AN ORB adapter included for easy installation
• Professional motorsport-grade component

Important Notes: Internal bubble in silicone fluid is normal. Overpressurizing can permanently misalign the needle calibration. PTFE thread sealant paste should always be used on NPT threads.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.
