Radium Fuel Level Diagnostic Indicator

Radium Fuel Level Diagnostic Indicator

Application: Radium 20-0461 fuel level switch (FST, current Standard FST, MPFST, MPFST-R, FCST, FCST-X)
Part Type: LED fuel level diagnostic indicator
Part Number: 20-0508

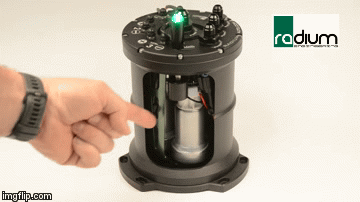

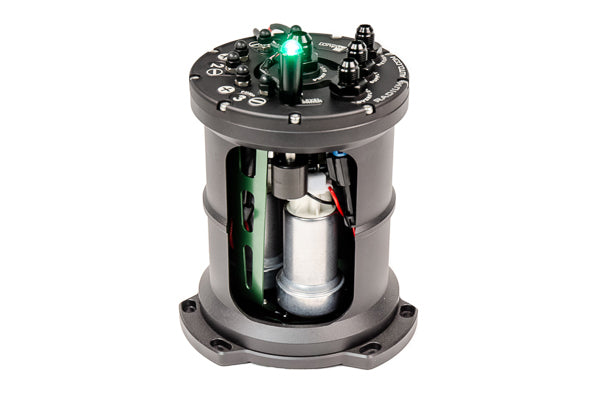

The Radium Fuel Level Diagnostic Indicator is an LED visual reference designed to be used with the Radium 20-0461 Fuel Level Switch. When the switch is triggered, its signal goes directly to the LED. Although it is often impractical to watch while driving, it is very useful for diagnosing a possible fuelling issue.

Key Features

• Direct Switch Signal: LED lights when the 20-0461 level switch triggers
• Diagnostic Aid: Visual reference for diagnosing fuelling issues
• 2AN ORB Mount: Installs in a 2AN ORB (5/16"-24) port
• Complete Wiring Parts: Eyelet terminals, heat shrink and abrasion sleeve included

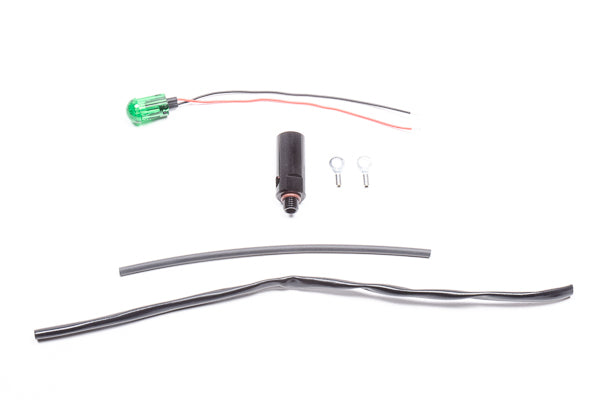

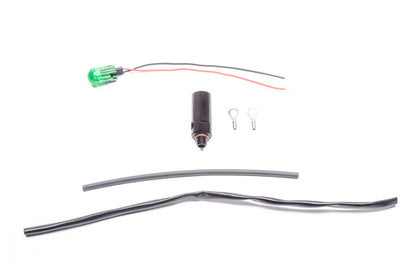

What's Included

• LED with flying leads
• 2AN ORB LED mount
• Eyelet terminals
• Heat shrink
• Abrasion sleeve

Optional Parts

• Radium Fuel Level Switch, 1/8" NPT (20-0461) – the fuel level switch this indicator works with (required)
• Radium Fuel Level Switch Plus Diagnostic Indicator (20-0519) – combined fuel level switch and diagnostic indicator kit

Important Notes

• Requires the Radium 20-0461 Fuel Level Switch (sold separately)
• A 2AN ORB (5/16"-24) threaded port is required for installation

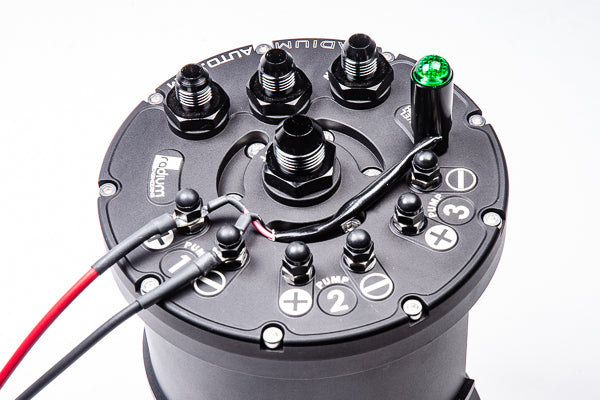

• If stacking on top of the fuel level switch, the panel thickness must be 19mm (0.75in) minimum
• Soldering is required
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
