Radium Fuel Hanger Plumbing Kit w/Filter - Nissan Silvia S13 / 180SX S13 / Skyline R32

Radium Fuel Hanger Plumbing Kit w/Filter - Nissan Silvia S13 / 180SX S13 / Skyline R32

Application: Nissan S13 Silvia, 180SX, 200SX, 240SX and R32 Skyline with Radium early Nissan hanger; R32 Skyline GT-R with Radium FHST
Part Type: Fuel hanger plumbing kit with fuel filter
Part Number: 20-0703-03, 20-0703-05

This kit includes everything needed to plumb the fuel system between the Radium early Nissan fuel pump hanger (or the Radium R32 GT-R FHST) and an aftermarket fuel rail. It is not designed for the stock fuel rail.

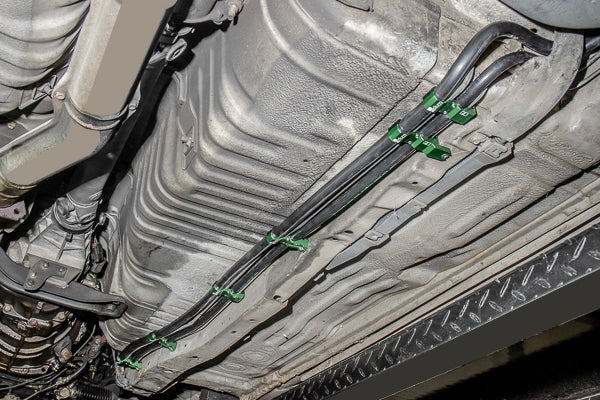

An 8AN (1/2in) feed hose runs from the hanger through the included Radium fuel filter to an 8AN 90° PushLok hose end, for an aftermarket 8AN male fuel rail fitting (not included). A 6AN (3/8in) return hose runs from the FPR (not included) to the hanger return port, with a 6AN 90° PushLok hose end for an aftermarket 6AN male FPR fitting (not included). The lines run through billet aluminium fuel/brake line retainers and clear the OEM pump cover without cutting or drilling, and the feed or return hose can be modified to add an in-line flex fuel sensor. The filter mounts in the stock location on a billet aluminium Nissan bolt-on mount.

Key Features

• Complete Plumbing: Hanger to aftermarket fuel rail and FPR
• 8AN Feed / 6AN Return: With 90° PushLok hose ends
• Radium Fuel Filter: Stainless or microglass element
• Stock Filter Location: Billet aluminium Nissan bolt-on filter mount
• Clean Routing: Billet line retainers, clears the OEM pump cover with no cutting or drilling
• Flex Fuel Ready: Hoses can be modified for an in-line flex fuel sensor

Available Configurations

• 20-0703-03: 10 micron stainless steel filter element
• 20-0703-05: 6 micron microglass filter element

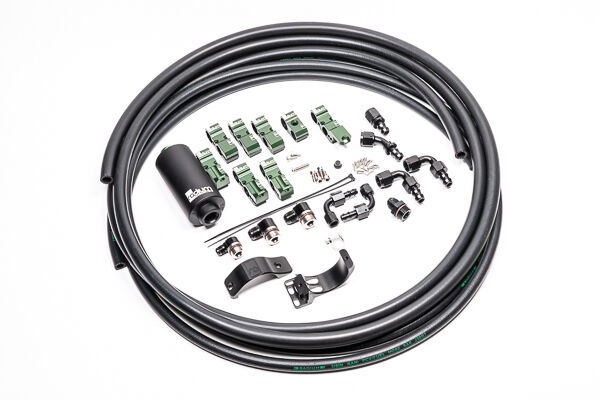

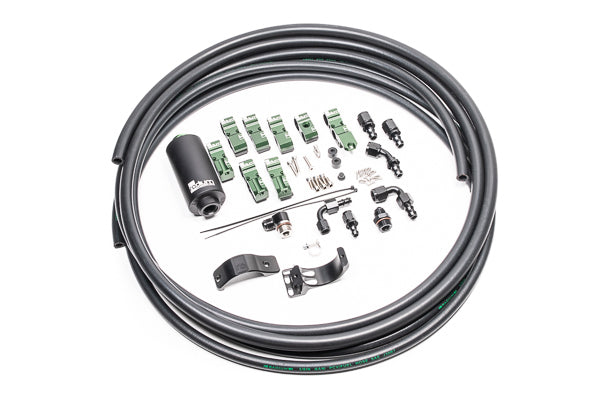

What's Included

• Fuel filter (stainless or microglass, per variant)
• 8AN fuel filter adapter fittings
• Billet aluminium Nissan filter mount
• 8AN and 6AN PushLok hose ends
• 8AN fuel feed hose
• 6AN fuel return hose
• Fuel/brake line retainers
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Hanger - Nissan 180 SX, Silvia S13/Skyline R32 GTS, GTS-T (20-0730-00 / 20-0732-00) – Radium hanger for S13 and non-GT-R R32
• Radium Fuel Hanger Surge Tank (FHST), Nissan Skyline R32 GT-R (20-0740-00 / 20-0741-00 / 20-0742-00) – Radium in-tank surge tank for the R32 GT-R

Important Notes

• Not designed for the stock fuel rail
• Aftermarket fuel rail with 8AN male fitting, FPR and 6AN male FPR fitting are required and not included
• For the R32 GT-R this kit is used with the Radium FHST (20-0740-00 / 20-0741-00 / 20-0742-00), as the early Nissan hanger excludes the GT-R
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan S13 Silvia / 180SX / 200SX / 240SX – all models/trims, RHD and LHD (with Radium early Nissan hanger)
• Nissan R32 Skyline excluding GT-R – RHD and LHD (with Radium early Nissan hanger)
• Nissan R32 Skyline GT-R (with Radium R32 GT-R FHST)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
