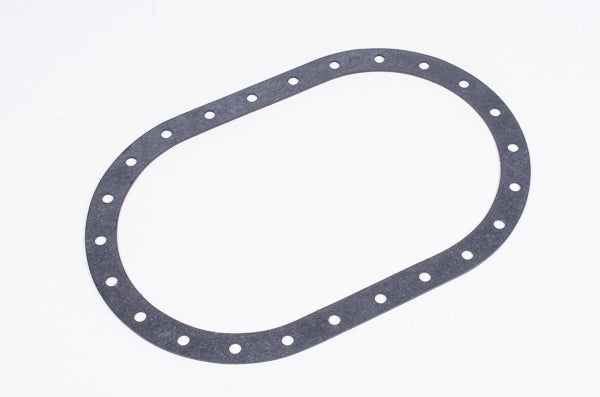

Radium Fuel Cell 24 Bolt Flange Gasket

Radium Fuel Cell 24 Bolt Flange Gasket

Application: 6" x 10" 24-bolt fuel cell flanges – Radium RA-Series fuel cells, FCST and FCST-X
Part Type: Fuel cell flange gasket, 6" x 10" 24-bolt
Part Number: 18-0015

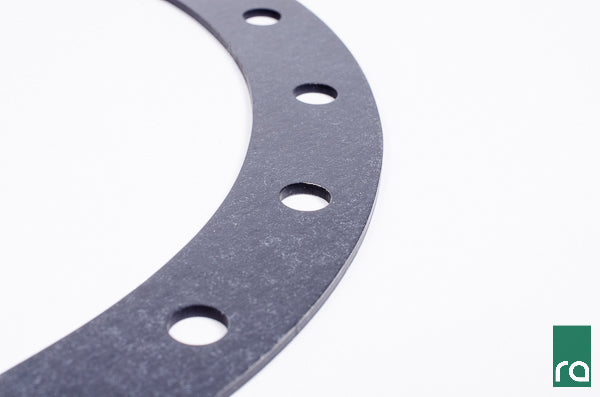

The Radium 18-0015 gasket suits industry-standard 6" x 10" 24-bolt fuel cell openings. Rather than cork or paper, it is die cut from a premium-quality FKM, giving a reusable, fuel-resistant seal.

It is 1/16" thick and compatible with all Radium fuel cell surge tanks, including the FCST and FCST-X, as well as Radium RA-Series fuel cells.

Key Features

• FKM Construction: Die cut from premium-quality FKM instead of cork or paper
• Industry Standard: Suits 6" x 10" 24-bolt fuel cell patterns
• Reusable: Can be reused when servicing the fuel cell
• Radium Compatible: Suits Radium RA-Series fuel cells, FCST and FCST-X

What's Included

• 1x 6" x 10" 24-bolt FKM fuel cell gasket

Optional Parts

• Radium Fuel Cell Nut Ring, Black Anodized (14-0584) – black anodised nut ring tapped 1/4"-28 (gasket not included)
• Radium Fuel Cell 24 Bolt Weld Flange with Gasket (20-0278) – weld-in flange for custom fabricated aluminium fuel cells

Vehicle Fitment

• All fuel cells with a 6" x 10" 24-bolt pattern
• Radium RA-Series fuel cells
• Radium FCST and FCST-X fuel cell surge tanks

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
