Radium Catch Can Kit — BMW E46 M3 (Fluid Lock)

An oil catch can is essential on any performance vehicle to protect the engine from elevated crankcase blow-by accumulated during aggressive driving. Excess oil-saturated air circulating back into the intake stream degrades performance, contaminates the throttle body and intake manifold, and can mask early signs of engine wear. The Radium Engineering Catch Can Kit for the BMW E46 M3 solves this with a purpose-built, closed-loop Fluid Lock system that keeps your intake air clean and your engine running at its best.

The Fluid Lock configuration does not vent to atmosphere (VTA) — making it fully emissions and track legal. Clean, filtered air routes back through the engine to be burned, promoting negative crankcase pressure for optimal performance and preventing oil vapours from entering the cabin.

Compatibility

• 2000-2006 BMW E46 M3
• 2003-2004 BMW E46 M3 CSL

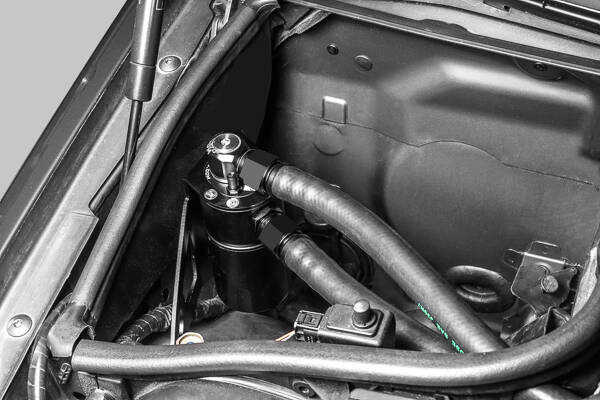

Note: The catch can mounts in the RH engine bay compartment near the firewall. Compatible with early models where the ABS module is in this compartment, and with later models featuring a secondary PCV system. RHD models can be fitted with modifications to the bracket.

Kit Highlights

• Fluid Lock (sealed/recirculating) design — emissions and track legal, no VTA
• Large 10AN ORB ports with 4AN ORB drain port
• 2-step oil separation baffling for maximum efficiency
• O-ring sealed dipstick for easy fluid level inspection
• Stainless steel filtration media — cleanable and reusable
• Effectively raises effective fuel octane with cleaner intake air
• Prevents oil buildup in throttle body, intake, and manifold
• Lowers hydrocarbon emissions
• Capacity: 7 fl oz  |  Height (without fittings): 5 inches  |  OD: 2.45 inches

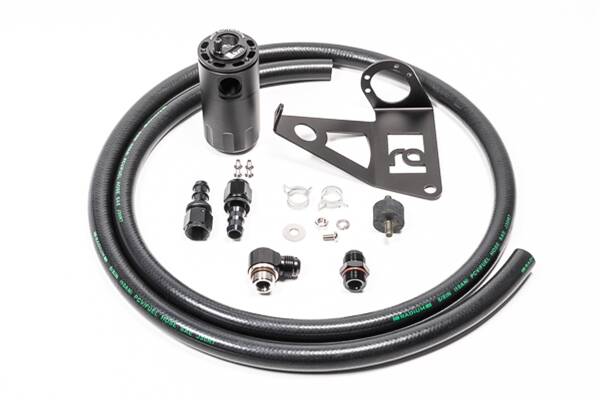

Kit Includes

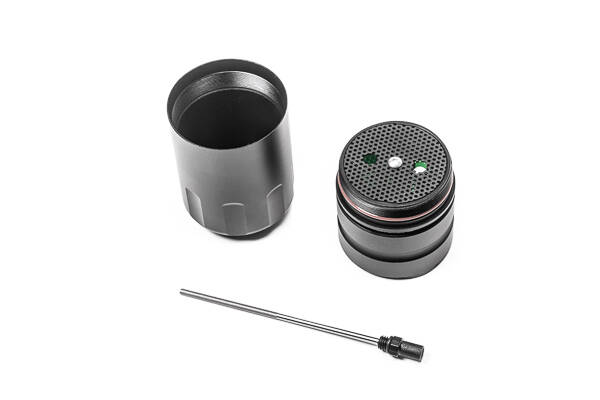

• Billet aluminium oil catch can with integrated dipstick
• Laser-cut anodised E46-specific mounting bracket
• Anodised aluminium 10AN hose ends and adapter fittings
• Enough 10AN (5/8") PCV hose for modified vehicle applications
• Stainless steel mounting hardware and hose clamps

Available Part Numbers

• 20-0073-FL — Catch Can Kit, BMW E46 M3, Fluid Lock (this listing)

Why Radium Engineering?

• ✔ Engineered and manufactured in the USA
• ✔ Used by professional motorsport teams worldwide
• ✔ Precision CNC machining from billet aluminium
• ✔ Fully rebuildable and serviceable
• ✔ Designed for real-world performance and track use

Stocked locally in Australia by Coore. Fast dispatch. Contact us with any fitment questions, including RHD bracket modification enquiries.
