Radium FCST-X Complete Refueling Kit- Standard Fill

Radium FCST-X Complete Refueling Kit- Standard Fill

SKU:  20-0841-02

$1,090.00
$1,090.00
Ships in 7-14 days
Taxes included.
Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7
View full details

More info

Radium FCST-X Complete Refueling Kit - Standard Fill

Complete refueling kit for Radium FCST-X fuel cell surge tank systems. Engineered by Radium Engineering to provide professional motorsport refueling capability with standard fill configuration for quick, safe fuel cell refilling during pit stops.

Available Part Numbers

  • 20-0841-00 - Direct Mount
  • 20-0841-02 - Remote Mount

Key Features

  • ✓ Complete refueling kit for FCST-X systems
  • ✓ Standard fill configuration for motorsport use
  • ✓ Direct mount or remote mount options available
  • ✓ Quick-connect dry break fittings for fast refueling
  • ✓ Professional-grade motorsport component
  • ✓ CNC-machined aluminum construction
  • ✓ E85 and all fuel types compatible
  • ✓ Anodized finish for corrosion resistance
  • ✓ Includes all necessary mounting hardware

Technical Specifications

  • Application: Radium FCST-X fuel cell surge tanks
  • Construction: CNC-machined aluminum with dry break fittings
  • Fill Configuration: Standard fill
  • Mounting Options: Direct mount or remote mount
  • Fuel Compatibility: Gasoline, E85, and alternative fuels
  • Includes: Refueling assembly, dry break fittings, mounting hardware, installation instructions

Applications

Ideal for motorsport applications requiring professional refueling capability for FCST-X fuel cell surge tank systems. Perfect for circuit racing, time attack, and endurance racing where quick, safe pit stop refueling is essential.

Benefits

  • Quick-connect dry break fittings enable fast pit stop refueling
  • Direct or remote mount options for flexible installation
  • Professional motorsport-grade refueling system
  • Compatible with all FCST-X fuel cell surge tanks
  • Safe, leak-free fuel transfer during pit stops
  • Reduces refueling time for competitive advantage

Important Note: Designed specifically for Radium FCST-X fuel cell surge tank systems. Select direct mount for mounting directly to fuel cell, or remote mount for flexible placement. Not compatible with other fuel cell systems.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.

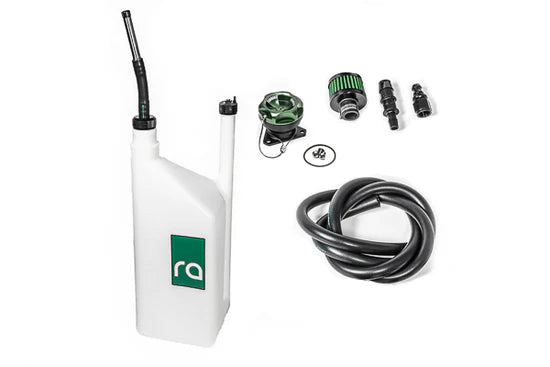

20-0841-00 FCST-X COMPLETE REFUELING KIT, DIRECT MOUNT, STANDARD FILL

This option works for vehicles that require a standard filler mounted directly on the fuel cell. The included fill neck and cap mounts directly to the Radium FCST-X. A proper vent kit secures directly to the 8AN vent that comes standard with the Radium FCST-X. The provided dump can features a large vent for faster filling than typical fuel jugs.

INCLUDES

  • Direct Fill Cap
  • Vent Kit
  • Quick Fill Dump Can

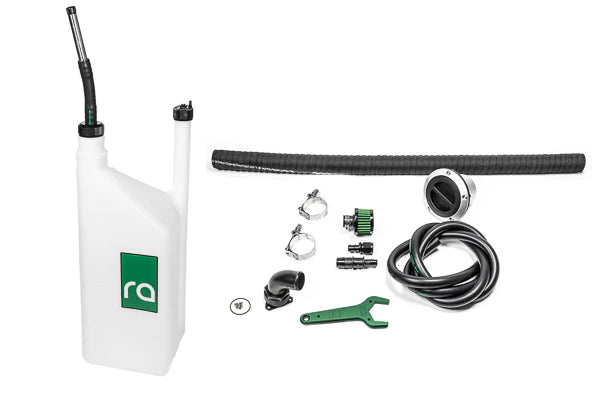

20-0841-02 FCST-X COMPLETE REFUELING KIT, REMOTE MOUNT, STANDARD FILL

This option works for vehicles that require a standard filler mounted remotely from the fuel cell. The included flanged filler typically mounts to a body panel. A 1.5" fuel filler hose attaches to the provided Radium FCST-X mounted fill neck elbow. A proper vent kit secures directly to the 8AN vent that comes standard with the Radium FCST-X. The provided dump can features a large vent for faster filling than typical fuel jugs.

INCLUDES

  • Standard Remote Filler
  • Remote Fill Neck
  • Remote Fill Hose
  • Vent Kit
  • Quick Fill Dump Can

Install Instructions
Direct Mount
Remote Mount
