Radium FCST Lift Pump Extension for Deep Cells

Radium FCST Lift Pump Extension — For Deep Fuel Cells

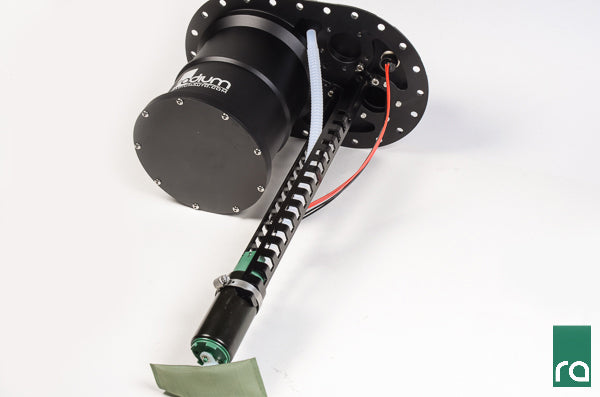

This extension kit is designed to mount the Radium Fuel Cell Surge Tank (FCST) lift pump to the bottom of deep fuel cells. The standard FCST lift pump brackets are designed for fuel cells no deeper than 10" (measured from the underside of the fill plate to the bottom of the lift pump filter sock). This extension kit adds a further 8" of reach, accommodating fuel cells up to 17" deep.

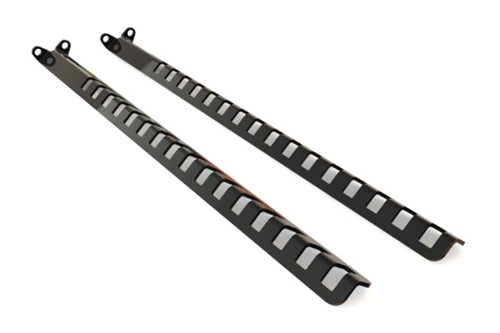

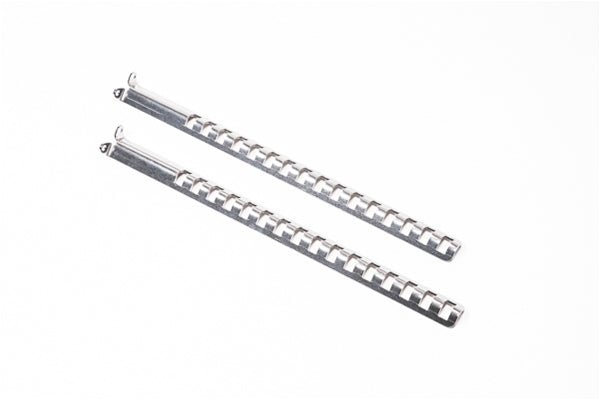

The kit includes two 5052 aluminium brackets that are laser-cut, formed, bright-dipped, and Type-II anodized. Simply cut to the required length using a band saw, cut-off wheel, or similar tool. Note that longer hose and/or wiring may be required depending on the installation depth — contact Radium tech support for further guidance.

Suits: Radium Engineering FCST (Fuel Cell Surge Tank) — for fuel cells deeper than 10"

Specifications:

• Standard FCST bracket depth: Up to 10"
• Extension adds: 8" additional reach
• Maximum fuel cell depth (with extension): Up to 17"
• Material: 5052 aluminium — laser-cut, formed, bright-dipped, Type-II anodized
• Cutting required: Yes — cut to length using band saw or cut-off wheel

Available Part Numbers:

• 20-0214 — FCST Lift Pump Extension Kit for Deep Fuel Cells (up to 17" depth)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ 5052 aluminium brackets — laser-cut, formed, bright-dipped, and Type-II anodized for durability
• ✅ Trusted by tuners and race teams running high-power fuel cell builds worldwide
• ✅ Extends FCST lift pump reach by 8" — suits deep fuel cells up to 17" from fill plate to filter sock
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
