Radium Fuel Rail Plumbing Kit, LS1 / LS2 / LS3 / LS6 / L76 / L99

Radium Fuel Rail Plumbing Kit, LS1 / LS2 / LS3 / LS6 / L76 / L99

Application: GM LS1, LS2, LS3, LS6, L76, L99 with Radium 20-0232 fuel rails
Part Type: Fuel rail plumbing kit
Part Number: 20-0232-PK

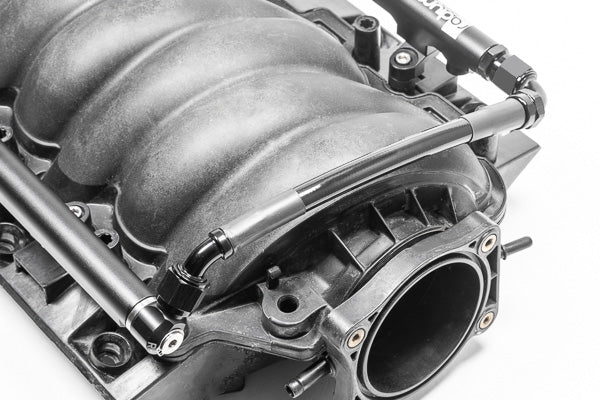

The 20-0232-PK plumbing kit bolts on with Radium 20-0232 LS fuel rails and reuses the OEM fuel feed hose, making it a direct bolt-on for LS1, LS2, LS3, LS6, L76 and L99 engines.

The inlet accepts the OEM SAE quick connector, a PTFE 8AN crossover hose joins the rails at the front, and plugs are supplied for the unused 8AN ORB ports.

Key Features

• Bolt-On: Reuses the OEM fuel feed hose
• OEM Connection: Inlet accepts the OEM SAE quick connector
• Crossover: 8AN PTFE crossover hose at the front of the rails
• Port Plugs: 8AN ORB plugs for unused ports
• Tool Included: SAE quick connect tool

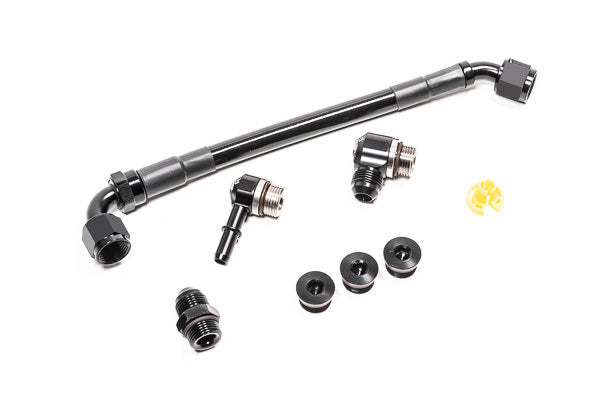

What's Included

• 8AN PTFE crossover hose
• 8AN ORB to 8AN male swivel
• 8AN ORB to SAE quick connect swivel
• 8AN ORB to 8AN male adapter
• 8AN ORB plugs
• SAE quick connect tool

Optional Parts

• Radium Fuel Rails - GM LS Engine (20-0232) – the Radium LS fuel rails this kit is designed for

Important Notes

• Fuel rails are not included – this kit is for use with Radium 20-0232 fuel rails
• The 20-0232 rails are upgrade rails: OEM or OEM-equivalent injectors must be used, matched to the intake manifold
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• GM LS1
• GM LS2
• GM LS3
• GM LS6
• GM L76
• GM L99

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
