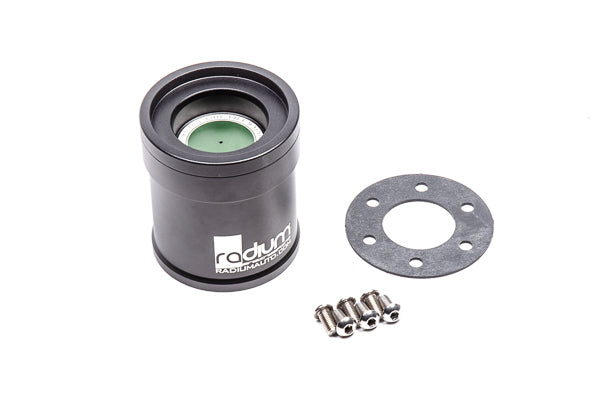

Radium Dry Break 1.5" Female, Direct Mount, Vented

Radium Dry Break 1.5" Female, Direct Mount, Vented

Application: Older Radium FCST and any fuel cell with a 6-bolt, 55.4mm (2.18in) PCD flange (not FCST-X)
Part Type: 1.5" female dry break filler, direct mount, vented
Part Number: 20-0495-V

The Radium 20-0495-V is a vented 1.5" female dry break filler designed to mount directly onto a fuel cell. It mates to any 6-bolt flange with a 55.4mm (2.18in) bolt circle – the pattern found on the older Radium FCST – and accepts the 1.5" dry break probes on Radium dump cans (20-0496 and 20-0996).

All seals and materials are compatible with unleaded, leaded, diesel, AV gas, methanol, ethanol, E15 and E85.

Key Features

• Direct Mount: Bolts straight onto the fuel cell flange
• 6-Bolt Flange: 55.4mm (2.18in) PCD, as used on the older FCST
• Vented: Vented 1.5" female dry break
• Mates with Radium Probes: 20-0496 and 20-0996 1.5" dry break probes
• Fuel Compatibility: Unleaded, leaded, diesel, AV gas, methanol, ethanol, E15, E85

What's Included

• Direct mount dry break filler
• FKM gasket flange seal
• Stainless steel hardware

Optional Parts

• Radium Quick Fill Dump Can - 1.5" Dry Break Filler - Male (20-0496) – 1.5" male dry break probe dump can
• Radium Dry Break, 1.5", Male, PRV (20-0996) – 1.5" male dry break probe with PRV

Important Notes

• Does not fit the FCST-X – designed for the older FCST 6-bolt flange
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FCST (older 6-bolt flange) and any fuel cell with a 6-bolt, 55.4mm (2.18in) PCD flange – Universal, see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
