Radium Coolant Expansion Tank Kit - Ford Mustang GT S550 FM/FN 15-22

Radium Coolant Expansion Tank Kit - Ford Mustang GT S550 FM/FN 15-22

Application: Ford Mustang S550 (2015-2023) incl. Shelby GT350 and Shelby GT500
Part Type: Billet aluminium coolant expansion tank kit
Part Number: 20-0286

The Radium Coolant Tank Kit replaces the factory plastic coolant expansion tank at the front of the engine bay with a CNC-machined billet aluminium header tank, made from two halves bolted together. Its low-profile design frees up engine bay space for forced induction or other modifications.

Inside, the two chambers are linked by cross-over passages at the top and bottom, and an internal swirl feature helps de-aerate the cooling system. The kit includes all the parts needed for installation and no permanent vehicle modifications are required.

Key Features

• CNC-Machined Billet Aluminium: Two-piece tank bolted together
• Low Profile: Frees up engine bay space for forced induction or other modifications
• Swirl De-Aeration: Internal swirl feature helps remove air from the cooling system
• Interconnected Chambers: Cross-over passages at the top and bottom
• Complete Kit: All parts needed for installation are included
• No Permanent Modifications: Replaces the OEM plastic tank at the front of the engine bay

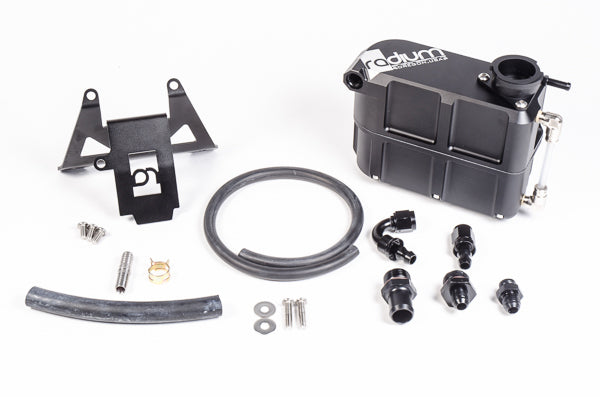

What's Included

• Billet aluminium coolant tank
• Anodised aluminium mounting bracket
• Stainless steel hardware
• Adapter fittings
• Replacement heater hose
• Overflow hose, 7/32"

Important Notes

• The OEM pressure cap cannot be reused – Radium pressure caps are sold separately and not included
• OEM pressure rating for the S550 Mustang, Shelby GT350 and Shelby GT500 is 1.45 bar (21 psi)
• Radium's optional high-pressure caps raise the system boiling point for improved cooling in extreme track use
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang S550 (2015-2023) – GT, EcoBoost and V6
• Ford Shelby GT350 S550
• Ford Shelby GT500 S550

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
