Radium Catch Can Kit, PCV, Nissan R35 GT-R, Fluid Lock

Radium Catch Can Kit, PCV, Nissan R35 GT-R, Fluid Lock

Application: Nissan R35 GT-R (2008-2011 cars require an OEM strut bar; RHD may need mounting modifications)
Part Type: PCV catch can kit, Fluid Lock
Part Number: 20-0565-FL

The Radium Engineering PCV Catch Can Kit for the R35 GT-R installs a single catch can inline between the PCV valve and the intake manifold (vacuum side). It mounts in the left-hand side of the engine bay near the brake master cylinder at the rear of the engine compartment.

At idle, steady cruise and deceleration this hose sees metered vacuum, which can draw crankcase vapour, unburned fuel and oil sludge into the intake; the can captures those liquids before they reach the engine. Because Radium cans are pressure sealed, no inline check valve is needed for a direct intake manifold connection, and the patented Fluid Lock design prevents the reservoir overfilling into the intake.

Key Features

• Direct Fitment: No drilling required
• 10AN ORB Ports: Large inlet and outlet ports
• 4AN ORB Drain Port: For an optional petcock drain

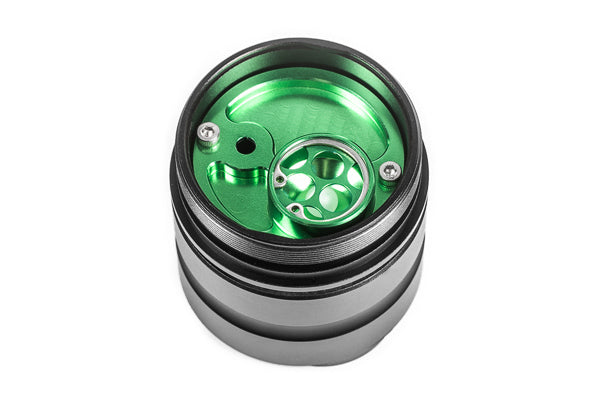

• Two-Step Baffling: Two-step oil separation
• O-Ring Sealed Dipstick: Check the level without removing the can
• Fluid Lock: Radium's patented system stops the reservoir overfilling into the intake

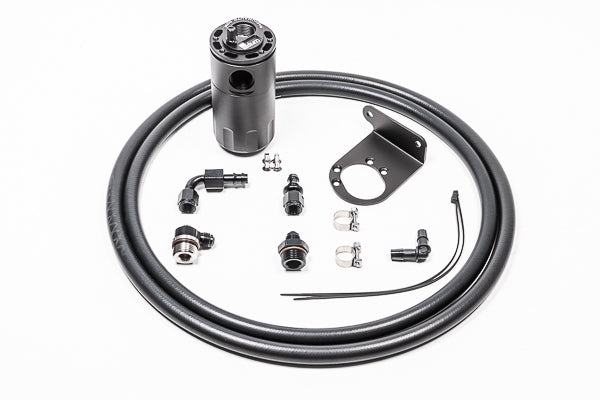

What's Included

• Anodised oil catch can(s) with integrated condenser and dipstick(s)
• Anodised aluminium R35 GT-R specific mounting brackets
• Anodised aluminium AN adapter fittings and hose ends
• Stainless steel mounting hardware
• Radium Engineering PCV hose

Optional Parts

• Radium Dual Catch Can Kit, CCV, Nissan R35 GT-R, Fluid Lock (20-0555-FL) – dual CCV catch can kit – recommended together with this kit
• Radium Triple Catch Can Kit, Nissan R35 GT-R, Fluid Lock (20-0566-FL) – triple kit combining 20-0555-FL and 20-0565-FL

Important Notes

• Not directly compatible with 2008-2011 GT-Rs that do not have an OEM strut bar
• RHD vehicles may require some modification for mounting the PCV can
• No inline check valve is required – Radium cans are pressure sealed
• The can must be emptied periodically – PCV cans typically collect more than CCV cans
• Check the level with the integrated dipstick from 3-4 weeks of driving and empty as needed by unscrewing the lower reservoir (or fit a petcock drain kit where space allows)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan R35 GT-R (2008-2011 models require an OEM strut bar)
• RHD models – mounting modifications may be required

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
