Radium Catch Can Kit (CCV) - Can-Am Maverick X3 2017+

Radium Catch Can Kit (CCV) – Can-Am Maverick X3 2017+

Application: Can-Am Maverick X3 (2017+, excluding CARB models)
Part Type: Crankcase Ventilation (CCV) Oil Catch Can Kit
Part Number: 20-0861

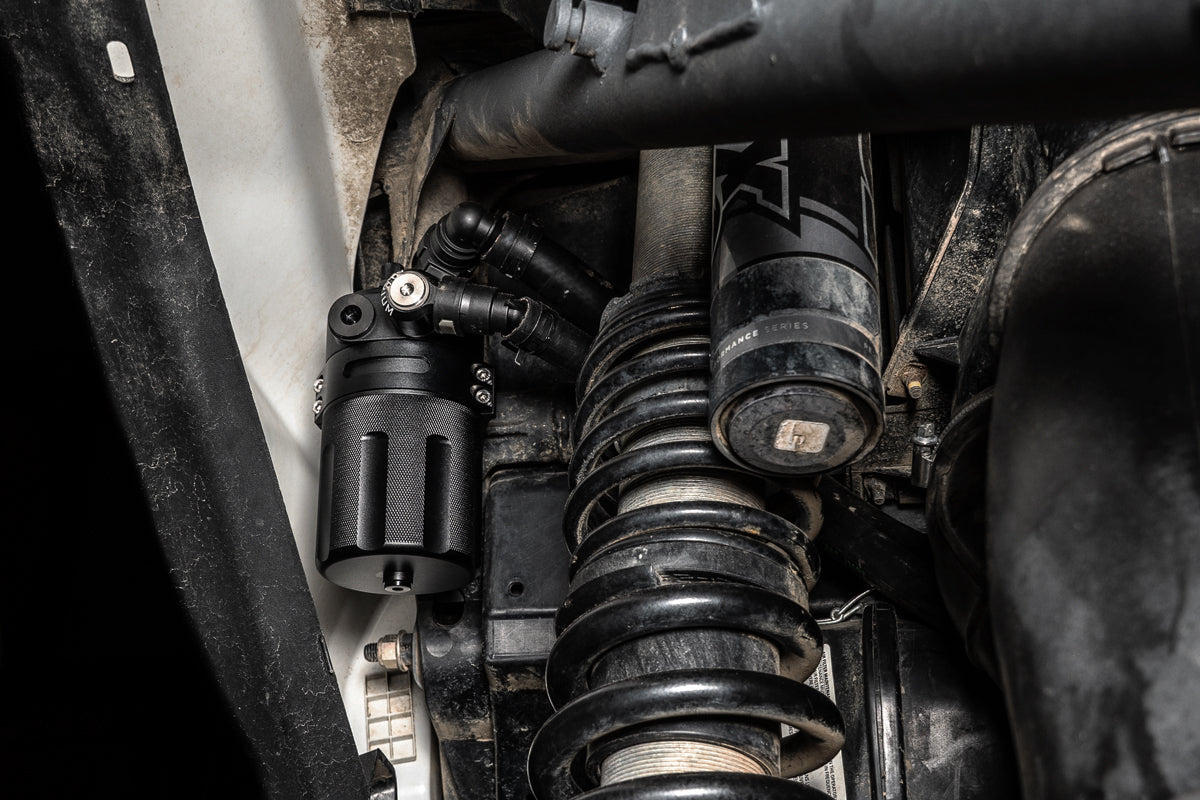

The Radium CCV catch can kit traps the oil mist carried out of the Maverick X3's crankcase before it can coat the intake, keeping the intake tract and charge air clean. The kit mounts in the left-hand rear wheel well on a CNC-machined, adjustable bracket, so the can can be rotated to suit your hose routing.

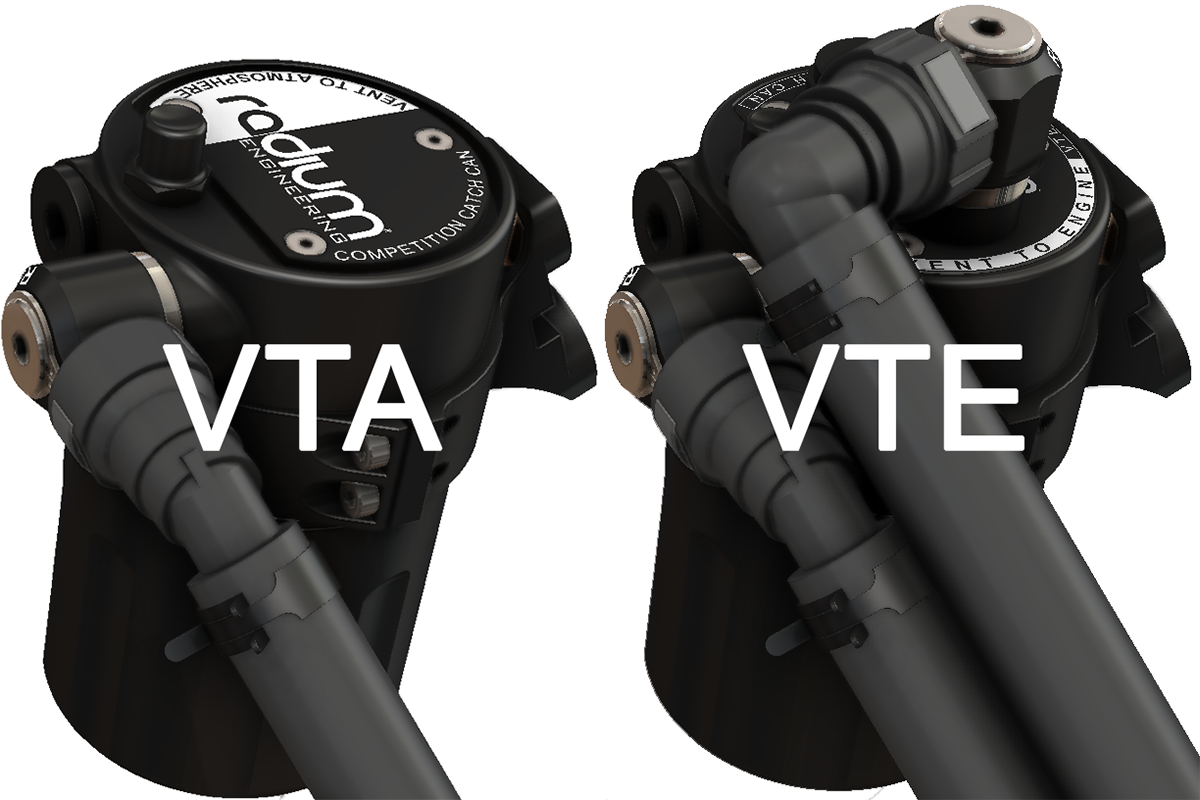

It can be set up two ways. Vent to Atmosphere (VTA) is the default: crankcase gases enter the side port and exit through the top, with oil collected in the reservoir. Vent to Engine (VTE) is a closed system that returns filtered air to the intake – recommended if the machine regularly throws mud, water or sand around the can, as the open VTA top can collect dirt and debris. A separate VTE top plate with threaded outlets, plus hose and fittings, is included so you can run either setup.

Key Features

• VTA or VTE: Both configurations supported out of the box

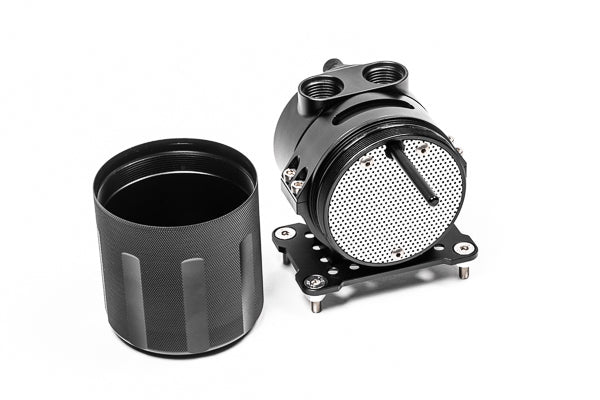

• Dual-Stage Condensing Media: In the inlet and outlet, separating oil without restricting flow
• Adjustable Bracket: CNC-machined bracket lets the can rotate to suit hose routing
• Integrated Dipstick: Check the oil level without removing the can
• Easy Draining: Body unscrews from the lower half, plus a 4AN ORB bottom port for an optional petcock drain valve
• Complete Kit: Hose, SAE quick-connect fittings and stainless hardware included

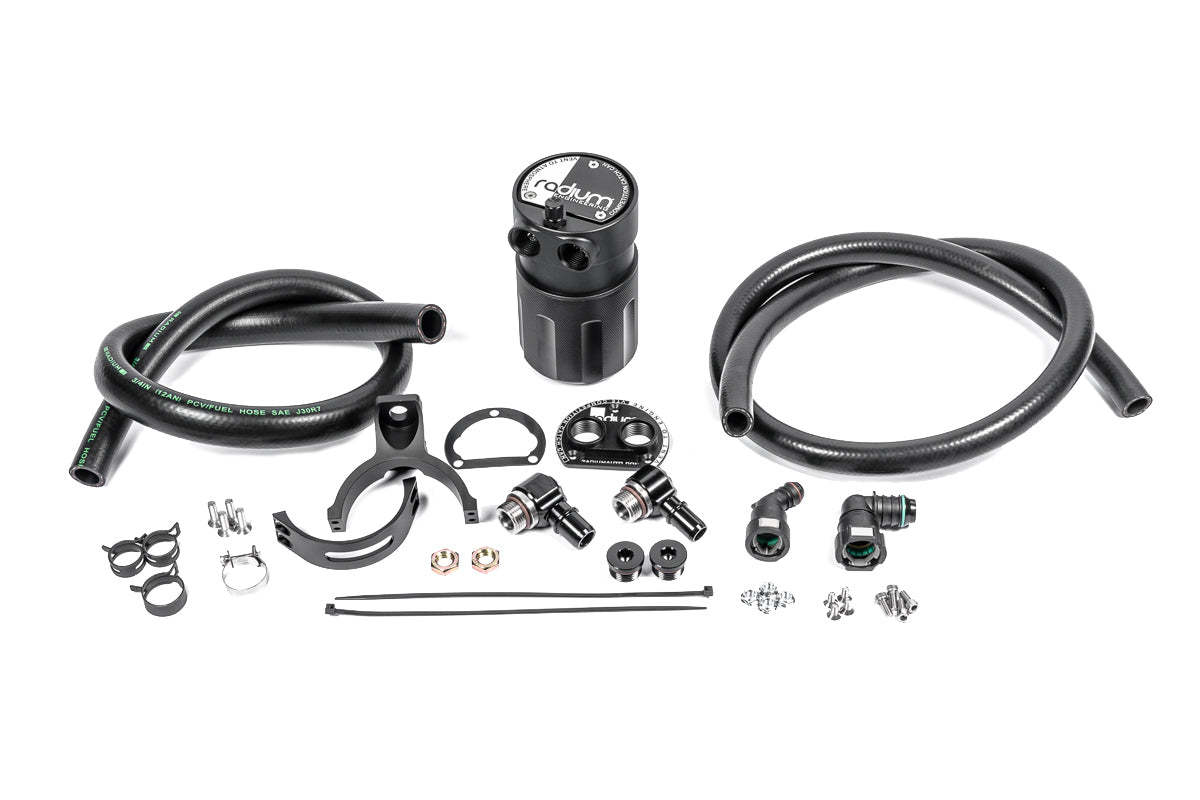

What's Included

• Radium competition catch can
• Anodised aluminium VTE and VTA adapters
• Anodised aluminium mounting brackets
• 12AN and 10AN PCV/fuel hose
• SAE quick-connect fittings
• Stainless steel hardware
• Spring clamps

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – fits the 4AN ORB bottom port for easy draining
• Radium 10AN ORB Plug, Round Internal Hex (14-0351) – blanks off an unused 10AN ORB port
• Radium Fuel Hanger Surge Tank – Can-Am Maverick (20-1150) – stops fuel starvation in hard driving

Important Notes

• Not for CARB-certified Maverick X3 models
• Check and drain the catch can regularly
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Can-Am Maverick X3 (2017+) – excluding CARB models

Not sure if this suits your machine? Email sales@coore.com.au and our team will confirm fitment.
