Radium 60mm 2-Piece Clamp Mounting Bracket - Single

Radium 60mm 2-Piece Clamp Mounting Bracket — Single

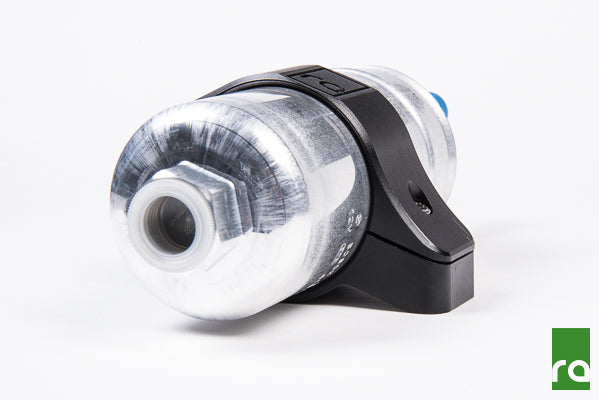

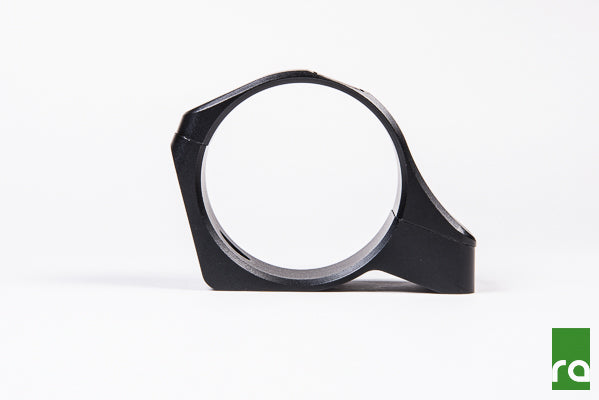

These bright-dip anodized billet 6061 aluminium clamp-style mounting brackets are designed for securing components such as fuel filters, oil catch cans, and external fuel pumps to the chassis. The 60mm inner diameter matches the Radium fuel filter and the Bosch 0 580 254 044 fuel pump, making them a natural pairing for clean, professional fuel system installations.

Unlike rubber-lined clamps that insulate heat, these conductive aluminium clamps transfer thermal energy directly into the chassis — effectively reducing fuel pump operating temperatures and extending service life. One clamp set is sufficient for most applications.

Suits:

• Radium Engineering 60mm fuel filters
• Bosch 0 580 254 044 fuel pump
• Any 60mm diameter component requiring chassis mounting

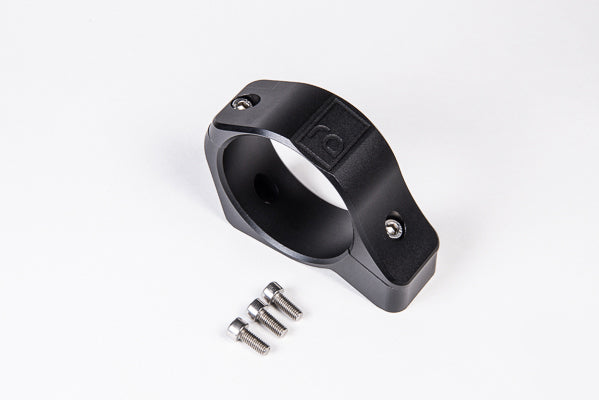

Kit Includes (20-0218):

• 1x Black bracket set (2 billet aluminium halves), 1.25" width
• 5x Stainless steel M5x0.8mm bolts
• 2x M5x0.8mm lock nuts

Specifications:

• Inner diameter: 60mm
• Width: 1.25"
• Material: Billet 6061 aluminium, bright-dip black anodized
• Thermal transfer: Conductive aluminium — no rubber insulation

Available Part Numbers:

• 20-0218 — 60mm 2-Piece Clamp Mounting Bracket, Single

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ Billet 6061 aluminium with bright-dip anodized finish for precision fit and corrosion resistance
• ✅ Trusted by tuners and race teams running high-power fuel system builds worldwide
• ✅ Conductive aluminium design transfers heat to chassis — reduces pump temps and extends service life
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
