Radium 2016+ Honda Civic Fuel Pump Hanger

Radium 2016+ Honda Civic Fuel Pump Hanger

Application: Honda Civic 2016+ including Civic Type R FK8 (2017-2021) – not FL5 Type R
Part Type: In-tank fuel pump hanger – fuel pumps not included
Part Number: 20-1080, 20-1082

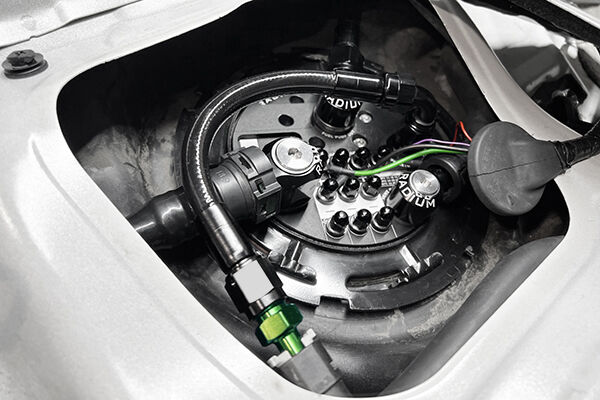

The Radium fuel pump hanger is a drop-in replacement for the 2016+ Honda Civic fuel pump module, capable of running one to three aftermarket pumps, including brushless pumps. Both pump outlets merge into a single 10AN ORB port on the top plate.

Fuel starvation protection comes from a one-piece anodised aluminium collector kept full by three one-way fill valves (355 LPH each) and fuel returned from the regulator. Top fittings for both ORVR and non-ORVR hangers are included, along with plugs for the two OEM ports that are sealed on non-North American vehicles.

Key Features

• Drop-In Installation: Replaces the OEM fuel pump module
• 1 to 3 Pumps: Runs one, two or three aftermarket pumps
• Brushless Capable: Suits brushless pumps such as the DeatschWerks DW440 (20-1080)

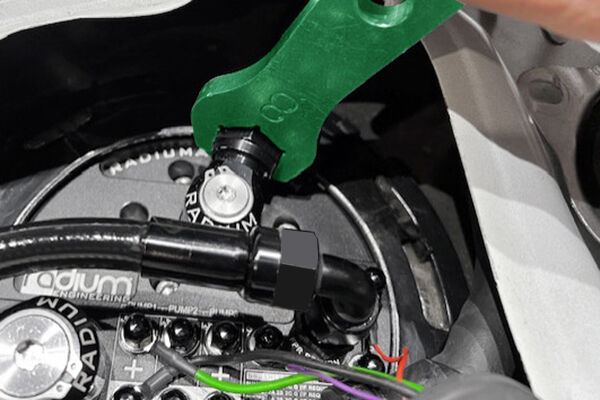

• Pump Outlet: Merged 10AN ORB (7/8"-14) female port with 8AN male fitting supplied
• Return Inlet: 6AN ORB (9/16"-18) female port with 6AN male adapter supplied
• Starvation Protection: One-piece collector with three 355 LPH one-way fill valves and regulator return

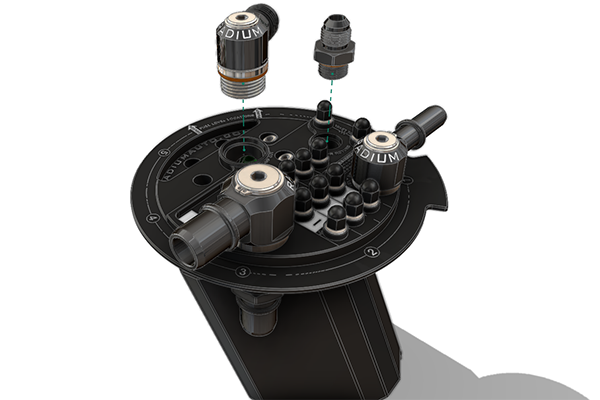

• ORVR & Non-ORVR: Top fittings for both hanger types, plus 10AN and 6AN ORB plugs for non-North American vehicles
• High-Current Electrical: Stainless studs, anodised aluminium acorn nuts and ETFE-insulated in-tank wiring
• Fuel Compatibility: Petrol, methanol and E85 compliant

Available Configurations

• 20-1080: AEM 50-1220 and DeatschWerks DW440 (brushless) – 1 to 3 pumps
• 20-1082: Walbro F90000267, F90000274 and F90000285 – 1 to 3 pumps

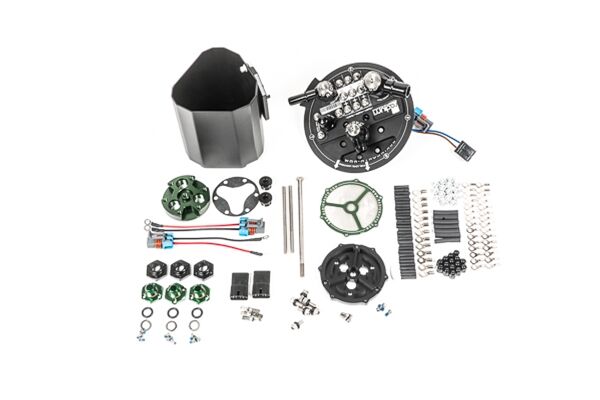

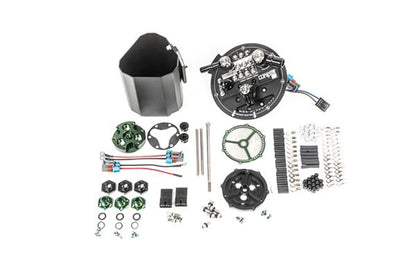

What's Included

• Partially assembled fuel pump hanger
• Top fittings for ORVR and non-ORVR hangers
• 10AN and 6AN ORB plugs for non-North American vehicles
• Hardware to install 1 to 3 pumps
• Electrical parts kit for external wiring

Optional Parts

• Radium Fuel Hanger Plumbing Kit, 17-21 Honda Civic Type-R (20-1085-03 / 20-1085-05) – plumbing kit with DFPR, filter and gauge for the 2017-2021 Civic Type R FK8
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – wiring kit – one per aftermarket pump

Important Notes

• Fuel pumps are not included
• Not compatible with the FL5 Civic Type R
• A single pump can reuse the OEM wiring, but upgrading is recommended for full power; each additional pump needs its own relay and fuse
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic 2016+ (excluding FL5 Type R)
• Honda Civic Type R FK8 (2017-2021)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
