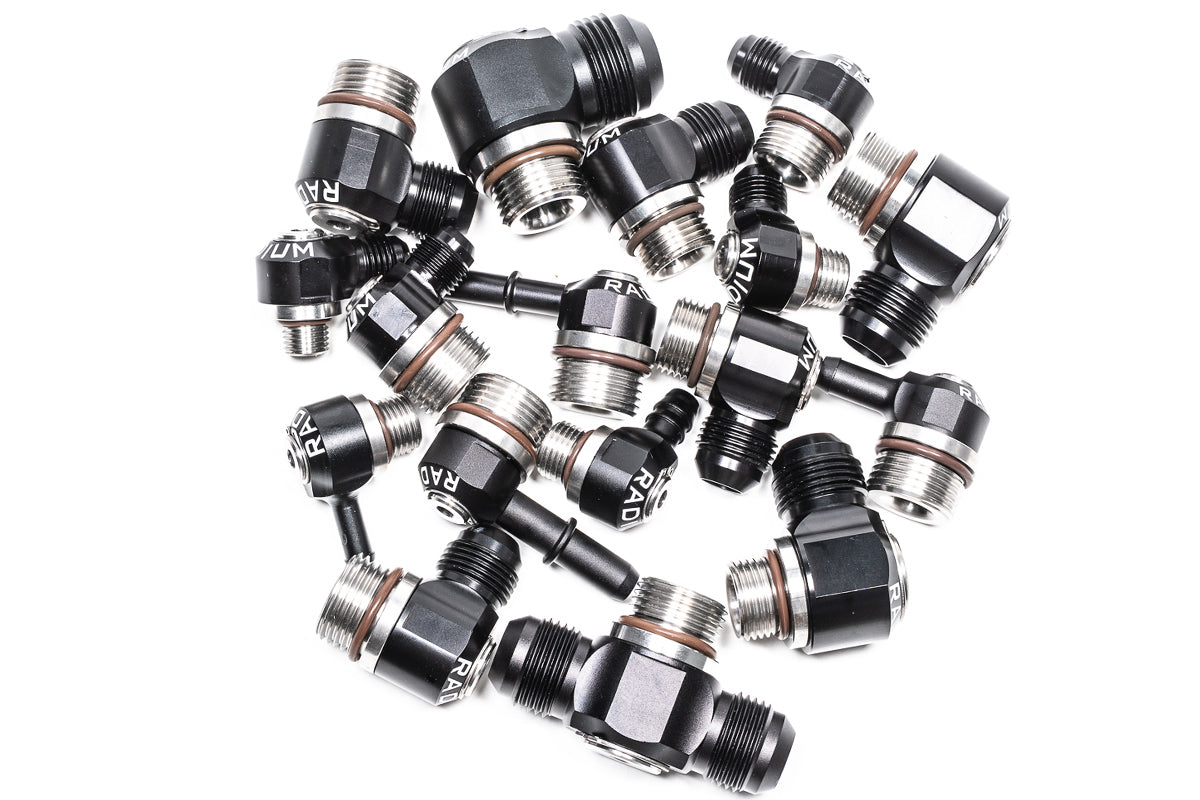

Radium 20-1000-0465 Low Profile Swivel Banjo Fitting, 4AN ORB to 6.5mm Barb

Radium 20-1000-0465 Low Profile Swivel Banjo Fitting, 4AN ORB to 6.5mm Barb

Application: Universal – 4AN ORB (7/16"-20) ports (fuel rails, surge tanks, regulators)
Part Type: Low profile 360° swiveling banjo fitting, 4AN ORB to 6.5mm hose barb
Part Number: 20-1000-0465

The Radium 20-1000-0465 Low Profile Swiveling Fitting adapts a 4AN ORB port to a 6.5mm hose barb. It rotates a full 360 degrees, even after it has been installed, which makes it an excellent option for 90-degree connections where hose routing and clearance are tight, and its very low profile keeps the installed height to just 20.2mm (0.797in).

Radium designs these swiveling fittings for fuel rails, fuel surge tanks and other universal applications using a 4AN ORB (7/16"-20) port. They are suitable for high pressure fuel and oil systems up to 400psi, and are safe for use with all fuel types, oil and engine coolant.

Key Features

• 360° Swivel: Rotates a full 360 degrees, even after installation
• Low Profile: Installed height of 20.2mm (0.797in), bottom installed surface to top
• 90-Degree Connection: 4AN ORB port to 6.5mm hose barb
• High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
• Compatibility: Safe for use with all fuel types, oil and engine coolant
• FKM O-Rings: FKM O-ring seals rated for all oil and fuel types
• Construction: Anodised billet aluminium and stainless steel

What's Included

• 1 x 20-1000-0465 Low Profile Swiveling Fitting
• 1 x FKM O-ring

Important Notes

• Do not exceed 400psi
• When installing ORB fittings, lubricate the O-ring with O-ring lube, petroleum jelly or oil to prevent damage during assembly
• Hose, hose ends and other fittings are sold separately

Vehicle Fitment

• Universal – any 4AN ORB (7/16"-20) port, such as fuel rails, fuel surge tanks and fuel pressure regulators

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
