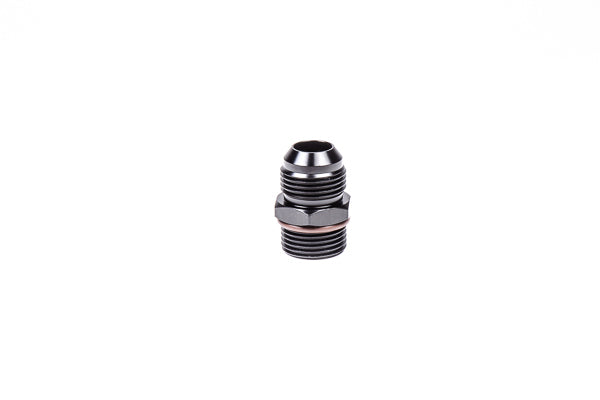

Radium 12AN ORB to 12AN Male Remote Fitting

Radium 12AN ORB to 12AN Male Remote Fitting

Remote mounting adapter fitting engineered by Radium Engineering to convert 12AN ORB (O-Ring Boss) ports to 12AN male connections. This fitting enables remote mounting of external quick-fill DSV (Dry Sump Valve) systems off the fuel cell, providing flexible installation options for high-performance fuel systems.

Compatibility

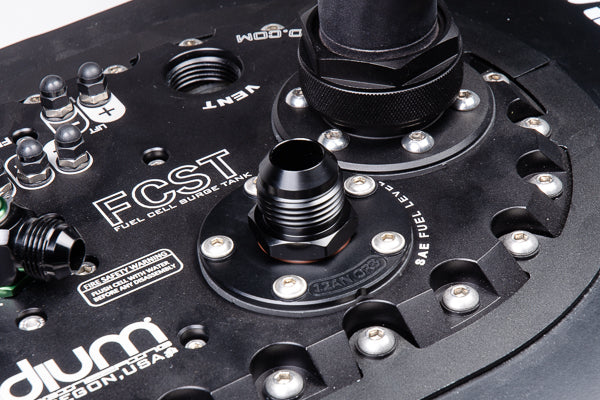

• Radium 20-049X-XX FCST (Fuel Cell Surge Tank) - secures directly into 12AN ORB vent port
• Older FCST units - use in conjunction with 20-0439 12AN ORB to 5-Bolt SAE Adapter

Key Features

• ✓ 12AN ORB to 12AN male conversion
• ✓ Enables remote mounting of external quick-fill DSV
• ✓ Direct installation into FCST 12AN ORB vent port
• ✓ CNC-machined construction for precise fitment
• ✓ Anodized finish for corrosion resistance
• ✓ E85 and all fuel types compatible
• ✓ Professional-grade motorsport component

Technical Specifications

• Application: Radium FCST remote quick-fill mounting
• Part Number: 14-0434
• Inlet: 12AN ORB (3/4"-16 O-Ring Boss)
• Outlet: 12AN male
• Construction: CNC-machined aluminum
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for remotely mounting external quick-fill DSV systems off Radium fuel cell surge tanks. Perfect for motorsport applications requiring flexible quick-fill system placement for optimal accessibility and installation clearance.

Benefits

• Enables remote mounting of quick-fill systems
• Direct installation into FCST vent port
• CNC-machined precision ensures leak-free fitment
• Compatible with current and older FCST models
• Anodized finish provides long-term durability
• Professional motorsport-grade construction

Important Note: For older FCST units, use in conjunction with 20-0439 12AN ORB to 5-Bolt SAE Adapter. For current 20-049X-XX FCST models, secures directly into 12AN ORB vent port.
