Radium 12AN ORB 5-Bolt SAE Adapter

Radium 12AN ORB 5-Bolt SAE Adapter

Application: Older-generation Radium FCST fuel cell surge tanks (20-014X-XX)
Part Type: 12AN ORB to 5-bolt flange vent adapter
Part Number: 20-0439

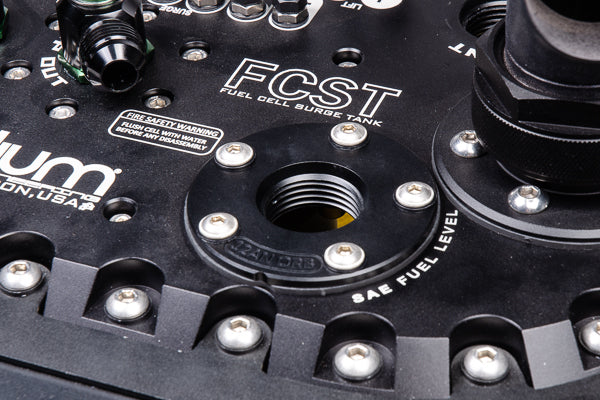

The Radium 20-0439 adapter is designed for older-generation Radium FCST fuel cell surge tanks (20-014X-XX series), which were built with a small vent port. It mounts to the 5-bolt flange and provides a 12AN ORB port, allowing the higher-flow 12AN venting components in Radium's fuel cell vent range to be used on these earlier tanks.

Key Features

• 5-Bolt Flange to 12AN ORB: Converts the FCST 5-bolt flange to a 12AN ORB port
• Suits Older FCST: For 20-014X-XX series tanks with the original small vent
• Complete: Supplied with gasket and mounting hardware

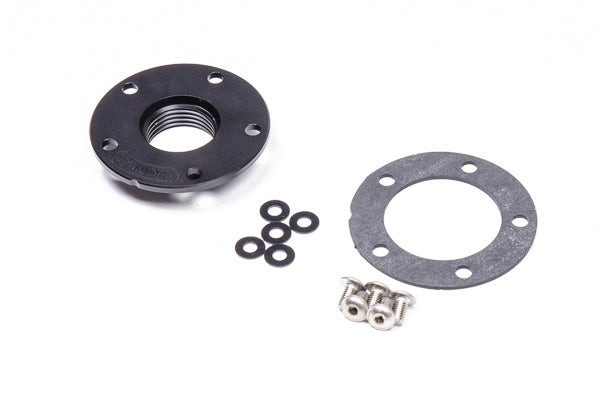

What's Included

• 5-bolt flange adapter
• Gasket
• Mounting hardware

Optional Parts

• Radium Fuel Cell Vent Kit - 12AN (20-0484-12) – high-flow 12AN vent kit for quick-fill systems
• Radium 12AN Female Fitting to Air Filter (20-0485) – 12AN female fitting with air filter for direct fill caps

Important Notes

• A fuel level sender cannot be installed while this adapter is in use
• Only for older FCST units (20-014X-XX)

Vehicle Fitment

• Radium FCST fuel cell surge tanks, older generation (20-014X-XX) – Universal, see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
