Öhlins TTX Suspension Kit – Porsche 997 GT3 Cup

Öhlins TTX Suspension Kit – Porsche 997 GT3 Cup

Front Part Number: POF 5Q10 (TTX 46) | Rear Part Number: POF 6J00 (TTX 36) | Fitment: Porsche 997 GT3 Cup

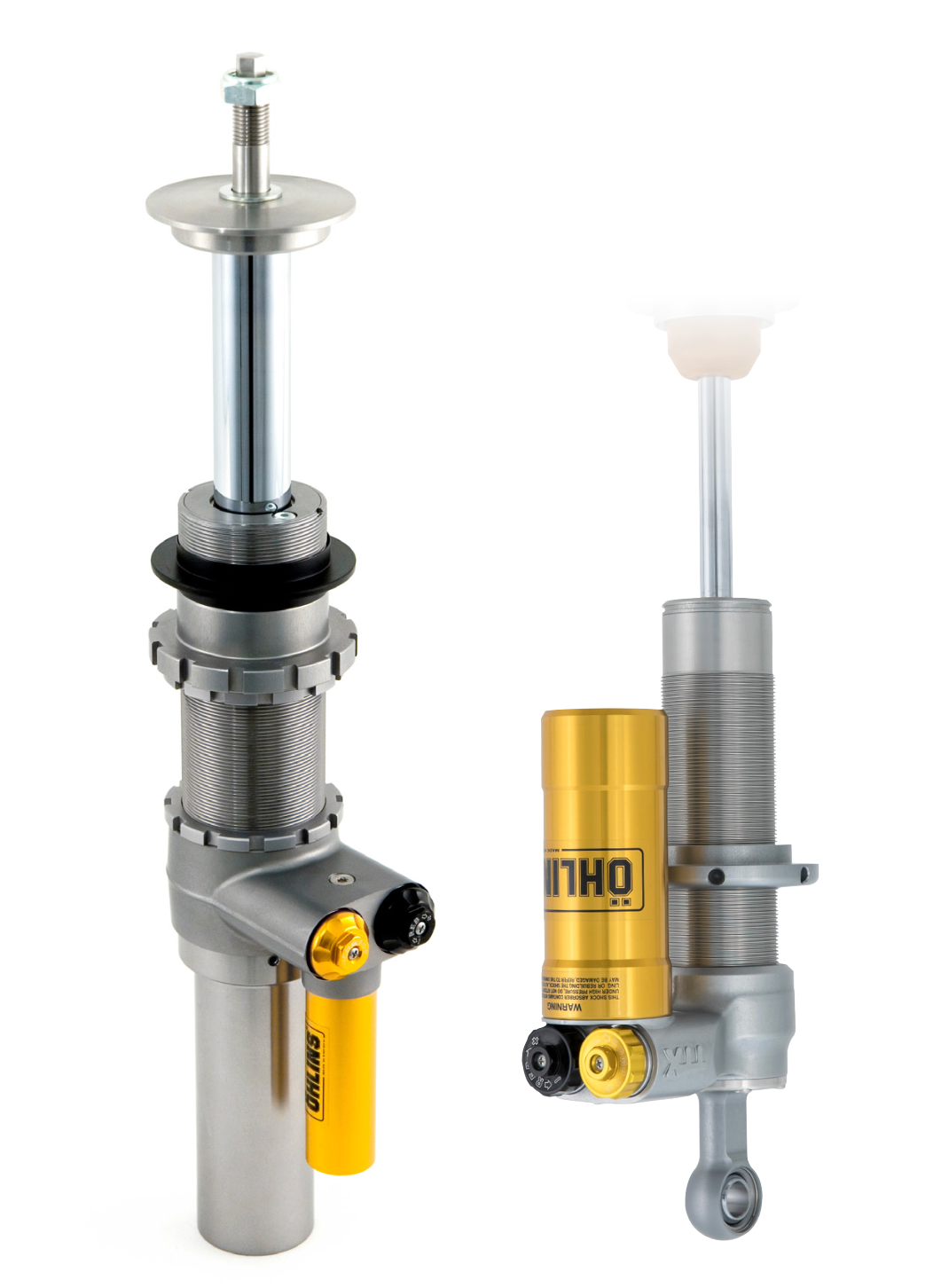

The Öhlins TTX suspension kit for the Porsche 997 GT3 Cup combines the TTX 46 front McPherson strut with the TTX 36 rear piggyback damper — a purpose-built, fully independent 2-way adjustable system engineered for circuit racing. Forged cylinder heads, solid pistons, and fully pressure-balanced internals deliver the precision and consistency demanded at the highest levels of GT motorsport.

⚠️ Note: Springs are NOT included with this kit. Sold as dampers only.

Technical Specifications

TTX 46 Front Features

• TTX technology — Öhlins' motorsport-grade twin tube through rod damper system
• 46mm solid piston twin tube through rod design
• Forged cylinder head for maximum structural integrity
• 30mm shaft diameter
• External reservoir for increased oil volume and thermal management
• Independent 1-way compression and 1-way rebound adjusters
• Fully pressure balanced internals
• Compatible with 60mm ID spring (not included)

TTX 36 Rear Features

• TTX technology — twin tube piggyback damper design
• 36mm solid piston twin tube construction
• 14mm solid shaft
• Independent 1-way compression and 1-way rebound adjusters
• Fully pressure balanced internals
• High end performance specification
• Compatible with 57mm ID spring (not included)

Why Öhlins TTX?

• ✅ Purpose-engineered for the Porsche 997 GT3 Cup — not a road car adaptation
• ✅ Fully independent 2-way adjustment — compression and rebound tuned separately for precise setup
• ✅ Solid piston twin tube through rod technology delivers consistent damping under sustained race loads
• ✅ External reservoir on the front strut provides superior thermal management over long stints
• ✅ Trusted by GT racing teams worldwide as the benchmark in circuit suspension performance
