Ohlins TTX Advanced Trackday Coilovers - BMW M2 G87 / M3 G80 / M4 G82/G83

Ohlins TTX Advanced Trackday Coilovers - BMW M2 G87 / M3 G80 / M4 G82/G83

Application: BMW M2 G87, M3 G80, M4 G82/G83
Part Type: Motorsport Shocks
Part Number: BMV MX01

The Öhlins Advanced Trackday kit for the BMW M2, M3 and M4 G8x platform brings Öhlins' race-proven TTX (Twin-Tube) technology to the street and circuit. The dampers are developed from Öhlins' involvement in GT and Touring car racing, and have been extensively track tested on the G8x chassis.

A lightweight, through-rod TTX McPherson strut up front and a true-coilover TTX rear shock give precise body control at high speed, while 2-way fully independent compression and rebound adjustment lets you dial the car in for each circuit, and be just a few clicks away from a comfortable setting for the drive home.

Key Features

• TTX technology: true twin-tube, cavitation-free design for consistent damping
• 2-way adjustable: fully independent compression and rebound adjustment
• Front: lightweight aluminium McPherson strut with through-rod design; length adjustable to set ride height without changing suspension travel
• Front top mounts: adjustable camber and caster top mounts with spherical bearings, developed by Öhlins and Millway
• Adjustable drop links: front anti-roll bar drop links with uniballs

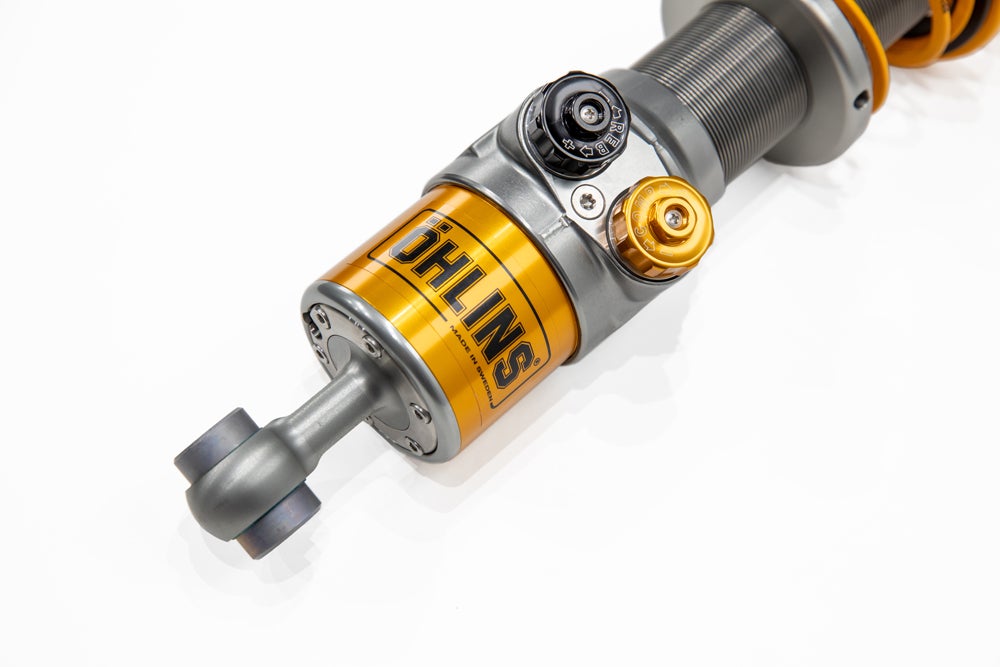

• Rear: lightweight aluminium true-coilover shock with clevis-style aluminium top mounts and spherical bearings
• Upgradeable: front upgradeable to 3-, 4- or 5-way adjustable incl. blow-off valve; rear upgradeable to 3- or 4-way
• R-compound validated: developed and validated for use with R-compound tyres
• Rebuildable: fully serviceable, with a 2-year limited warranty

What's Included

• 2x front TTX shock absorbers (BMV 5U11) with length adjusters
• 2x rear TTX shock absorbers (BMV 6Z00)
• Front main springs 160 N/mm (48140-29) and helper springs (05173-12)
• Rear main springs 130 N/mm (48170-23) and helper springs (05173-12)
• Front camber/caster adjustable top mounts (L/R)
• Rear top mounts (05927-30)
• Adjustable front anti-roll bar drop links (05928-12)
• Spring seats, supports, spacers and mounting hardware
• Preload adjuster tool, Öhlins sticker kit and owner's manual

Add-On / Optional Parts

• Öhlins Cancellation Kit – BMW M3/M4 G8x (35020-33) – required for cars fitted with factory electronic (EDC) dampers
• Front length adjusters 06245-05 (x2) – required for xDrive models, sold separately (contact Coore)
• EDC Bracket Kit TTX BMW G8x (35021-05)

Important Notes

• The EDC cancellation kit is not included and must be ordered separately for cars with factory adaptive dampers.
• xDrive models require 2x front length adjusters (06245-05), sold separately.
• Track-focused product – may produce more noise than standard on public roads.
• Öhlins strongly recommends professional installation; some original bolts must be replaced. A wheel alignment is required after fitting.
• Öhlins recommends reinforcing the rear mounting points (roll cage, X-brace or similar) due to coilover spring loads.

Vehicle Fitment

• BMW M2 G87 (2023+)
• BMW M3 G80 Sedan (2021+)
• BMW M4 G82 Coupe / G83 Convertible (2021+)
• RWD direct fit – xDrive requires front length adjusters 06245-05

Not sure if this suits your vehicle? Email sales@coore.com.au
