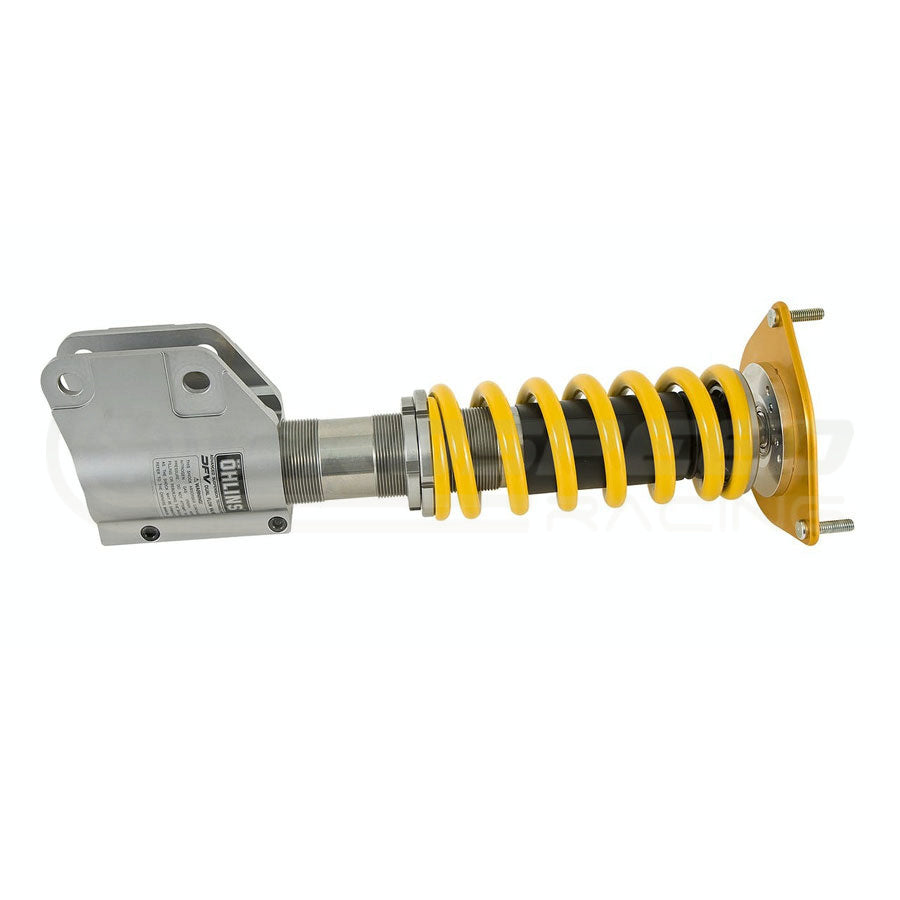

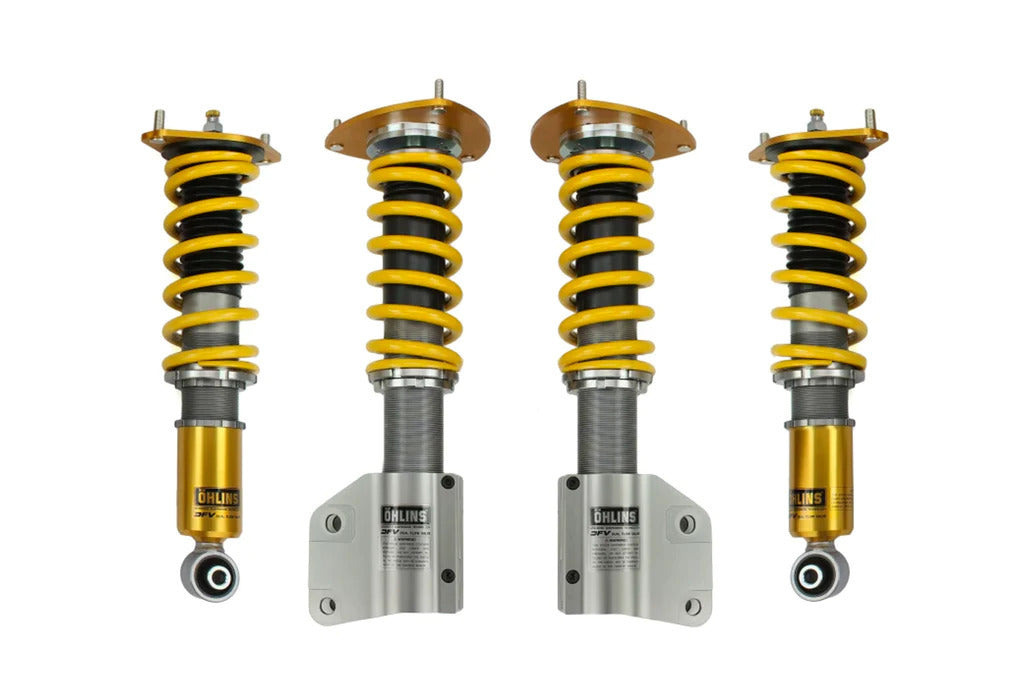

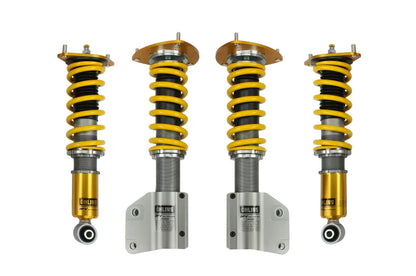

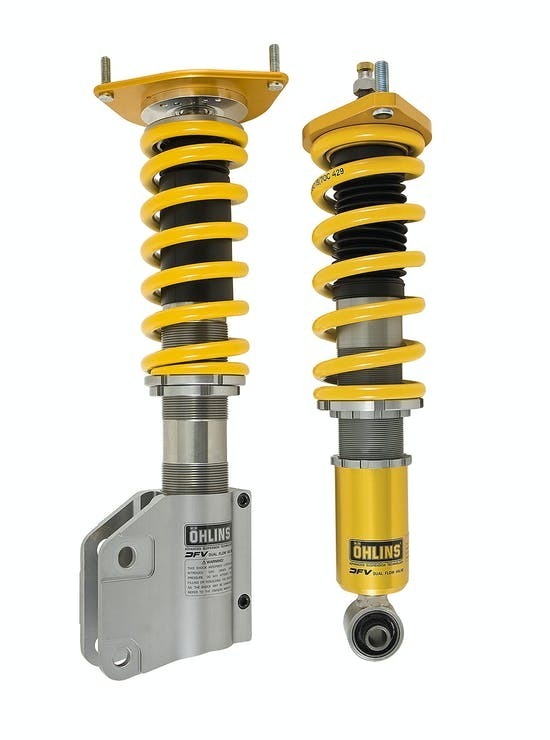

Öhlins Road & Track Coilovers – Subaru WRX VA (2015–2021) / STI GR/GV/VA (2008–2021)
Part Number: SUS MI10S1 | Fitment: Subaru WRX VA 2015–2021 & Subaru STI GR, GV, VA 2008–2021
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut with camber-adjustable top mounts included, and a conventional rear shock, with springs included as a complete car set.
Vehicle Fitment
| Subaru WRX | VA — 2015–2021 |
| Subaru WRX STI | GR — 2008–2010 |
| Subaru WRX STI | GV — 2011–2014 |
| Subaru WRX STI | VA — 2015–2021 |
Technical Specifications
| Part Number | SUS MI10S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 90 N/mm — included |
| Rear Spring Rate | 70 N/mm — included |
| Lowering Range | Approx. 20mm below standard (front & rear) |
| Front Top Mounts | Camber-adjustable top mounts — included |
| Rear Top Mounts | Top mounts — included |
| Springs Included | Yes — front & rear springs included |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
Included Springs
| Position | Spring Rate |
|---|---|
| Front | 90 N/mm |
| Rear | 70 N/mm |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment
- Single bleed adjuster — compression and rebound
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Front & rear springs included
Front Features
- McPherson strut
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 20mm lower than standard
- Coil springs included (90 N/mm)
- Camber-adjustable top mounts included

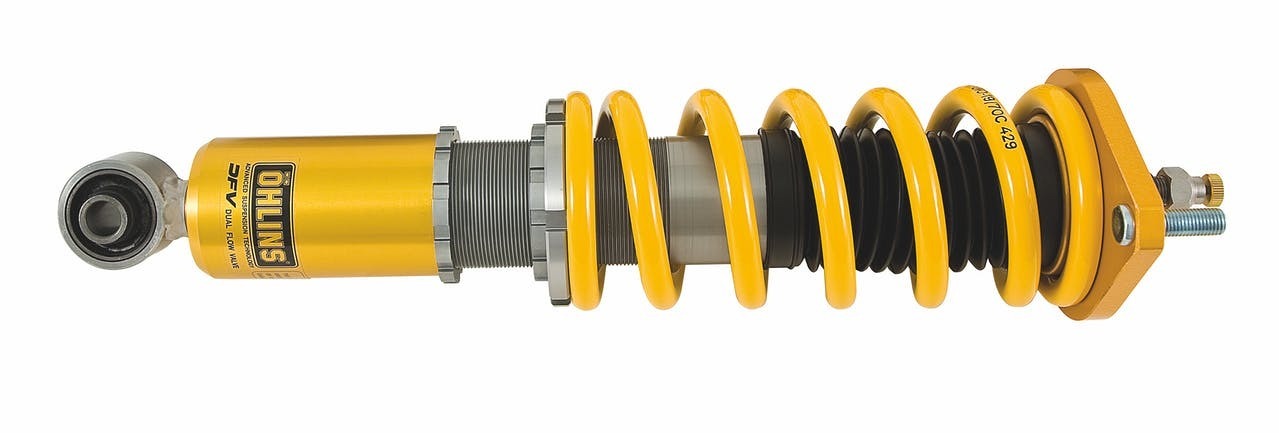

Rear Features
- Conventional shock absorber
- Single bleed adjuster
- Height adjustable — approx. 20mm lower than standard
- Coil springs included (70 N/mm)
- Top mounts included
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Camber-adjustable front top mounts included — dial in your alignment for street or track
- ✅ Covers WRX VA & STI GR/GV/VA — one kit for 14 years of the platform
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
