Öhlins TTX Advanced Trackday Kit – Nissan GT-R R35 (4-Way)
Öhlins TTX Advanced Trackday Kit – Nissan GT-R R35 (4-Way)
SKU: SKU: NIR-GN00
More info
Öhlins TTX Advanced Trackday Kit – Nissan GT-R R35 (4-Way)
Part Number: NIR-GN00 | Fitment: Nissan GT-R R35
The Öhlins TTX Advanced Trackday kit for the Nissan GT-R R35 features ILX36 True Twin Tube technology with 4-way adjustable damping — independent high and low speed compression and rebound adjustment — giving you complete control over your GT-R's suspension for every track, tyre, and condition. Featuring uniball aluminium top mounts front and rear, separate length adjusters, and springs included as a complete kit.
⚠️ Note: If the car is equipped with EDC (Electronic Damper Control), an Öhlins EDC cancellation kit is required (sold separately). See additional parts table below.
Vehicle Fitment
| Nissan GT-R | R35 — All years |
Technical Specifications
| Part Number | NIR-GN00 |
| Technology | TTX — True Twin Tube (ILX36), cavitation-free damping |
| Damping Adjustment | 4-way — independent hi/lo speed compression & rebound |
| Piston | 36mm (front & rear) |
| Reservoir | Internal reservoir (front & rear) |
| Front Spring Rate | 260 N/mm — included (other rates on request) |
| Rear Spring Rate | 150 N/mm — included (other rates on request) |
| Lowering Range | Approx. 20mm below standard (recommended setting) |

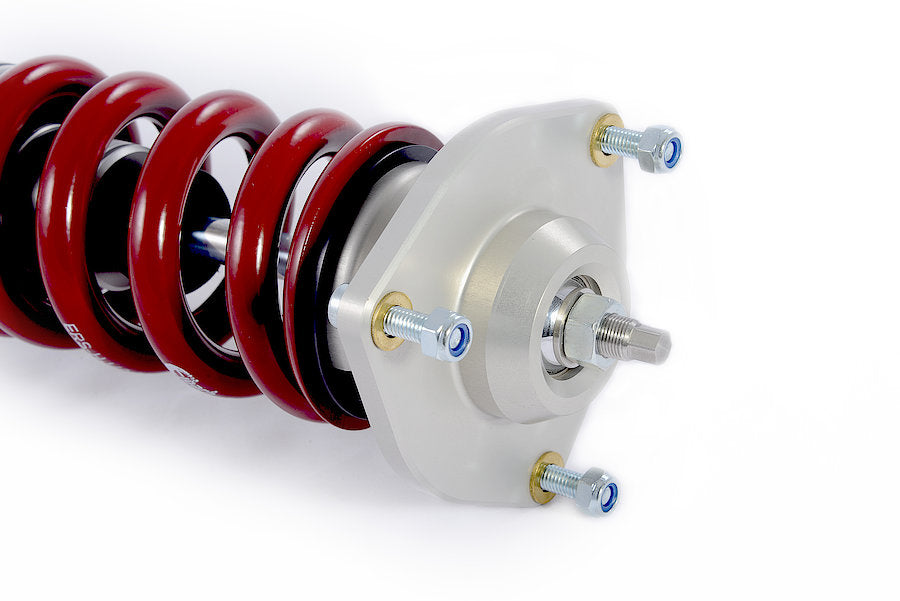

| Top Mounts | Uniball aluminium top mounts — included (front & rear, not camber adjustable) |
| Springs Included | Yes — complete kit incl. springs & mounting parts |
| Height Adjustment | Yes — separate length adjuster (front & rear) |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |

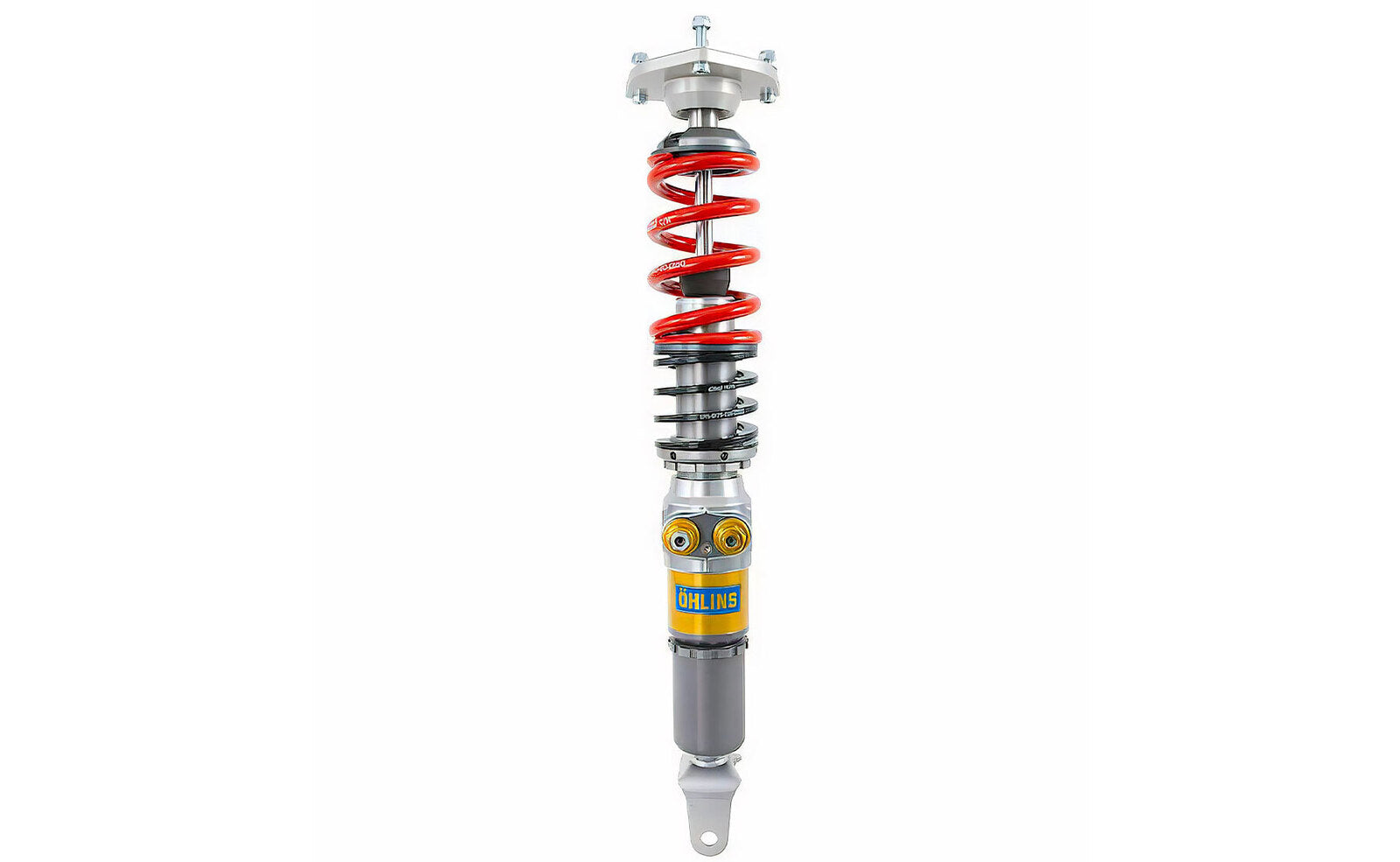

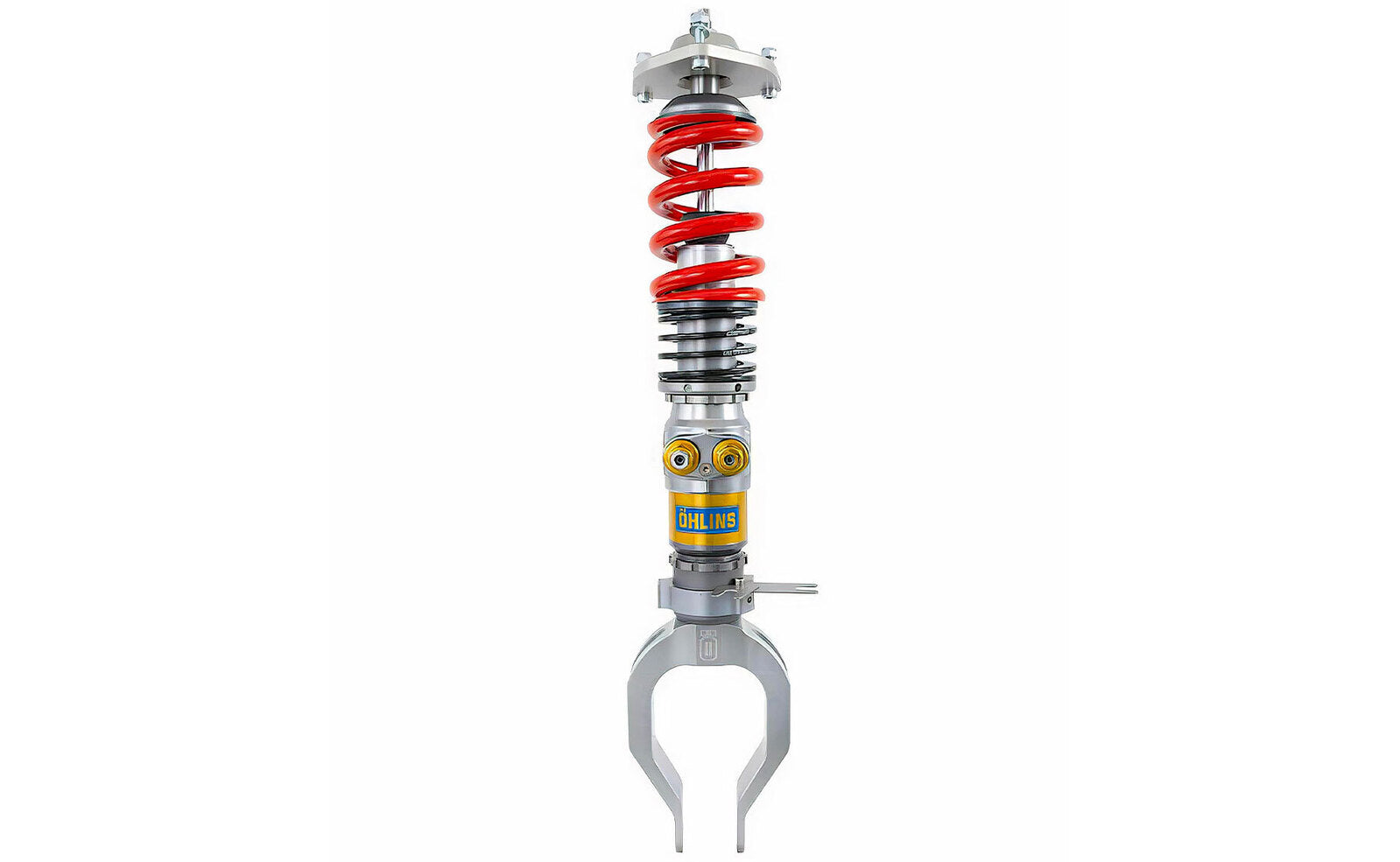

Front Features — ILX36 (Internal Reservoir)
- ILX36 shock absorber with internal reservoir — 36mm piston

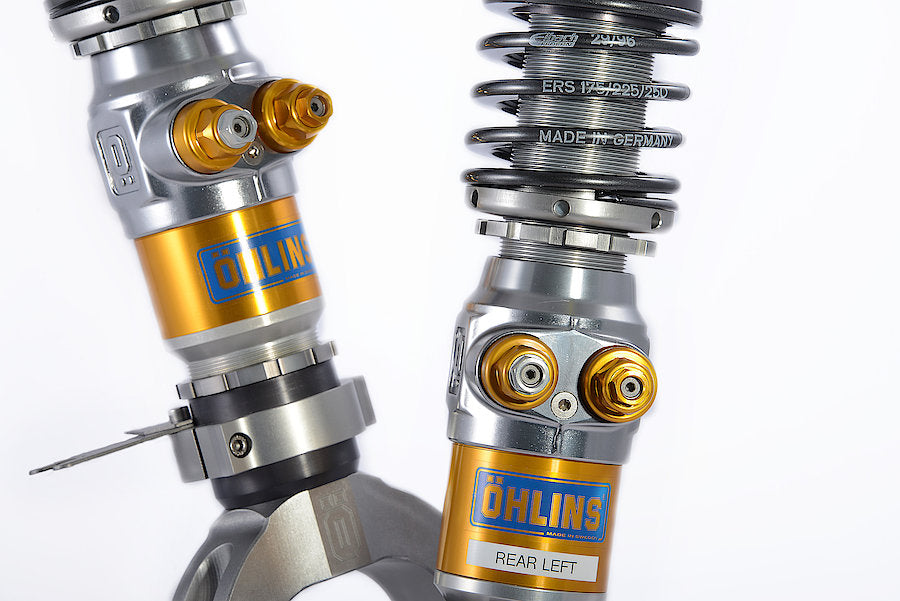

- Compression and rebound damping adjustment in high and low speed
- Spring preload adjuster
- Separate length adjuster
- Height adjustable — approx. 20mm lower with recommended setting
- Spring rate 260 N/mm — included (other rates on request)
- Uniball aluminium top mounts — included
Rear Features — ILX36 (Internal Reservoir)
- ILX36 shock absorber with internal reservoir — 36mm piston
- Compression and rebound damping adjustment in high and low speed
- Spring preload adjuster
- Separate length adjuster
- Height adjustable — approx. 20mm lower with recommended setting
- Spring rate 150 N/mm — included (other rates on request)
- Uniball aluminium top mounts — included

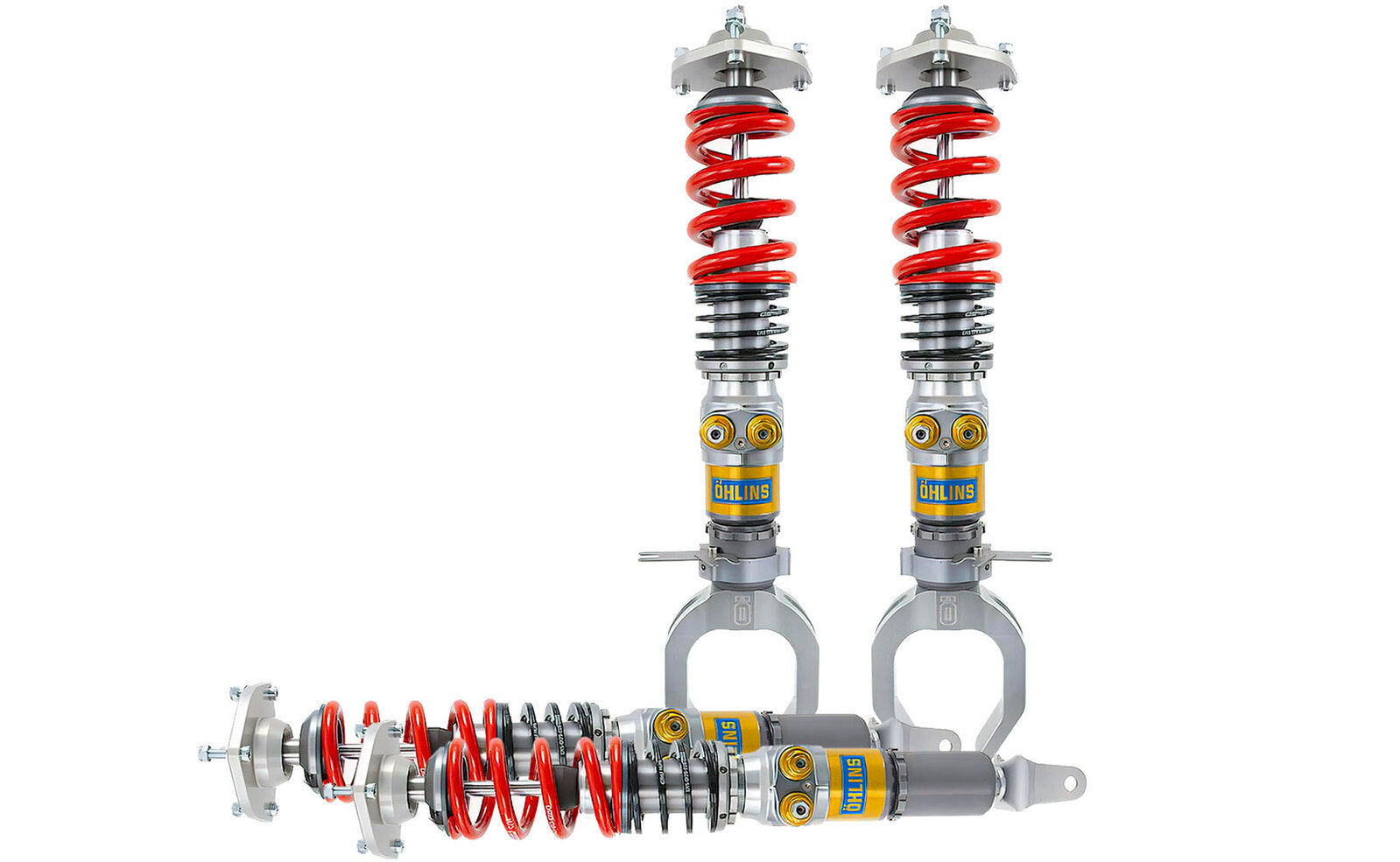

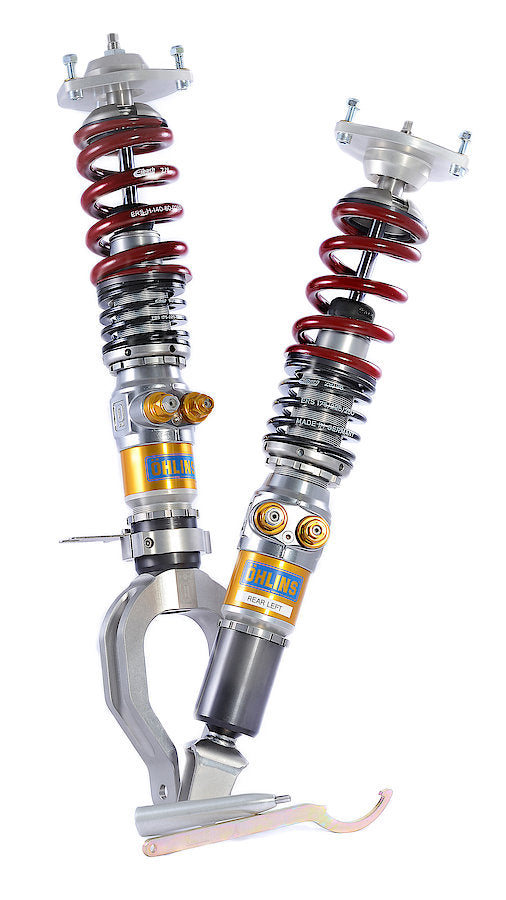

Kit Contents
- Complete coilover kit including springs and all mounting parts
- Uniball aluminium top mounts (front & rear)
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
EDC Cancellation Kit (if required)
The EDC cancellation kit is not included and must be ordered separately.
| Part No | Description | Included |
|---|---|---|
| 35020-06 | Öhlins EDC Cancellation Kit | No — ordered separately |
Why Öhlins TTX Advanced Trackday?
- ✅ TTX True Twin Tube ILX36 technology — cavitation-free damping under sustained race conditions
- ✅ 4-way independent damping — hi/lo speed compression & rebound for precise track tuning
- ✅ Uniball aluminium top mounts included — front & rear, race-grade fitment
- ✅ Separate length adjusters front & rear — precise ride height control
- ✅ Rebuildable and fully serviceable — ISO 9227 corrosion tested, 2-year warranty
