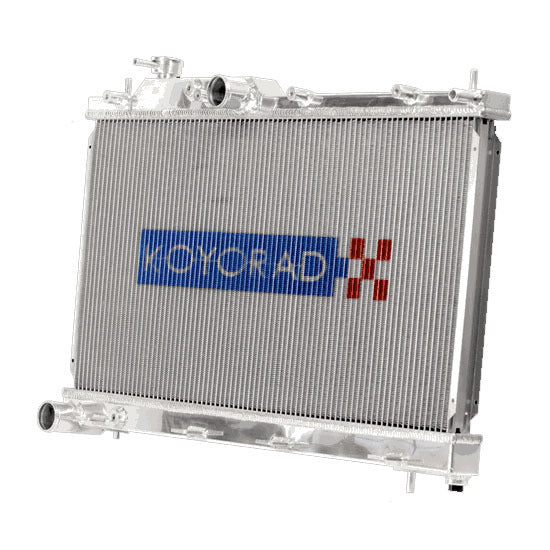

Koyo VH13026 Hyper V-Core Aluminium Racing Radiator – Subaru Forester SG XT 2.5L Turbo
Part Number: VH13026 | Cross Reference: KV092217 | Fitment: Subaru Forester SG XT 2.5L Turbo – Manual & Automatic Transmission
Coore is the authorised Australian distributor for Koyo performance radiators — so when you buy here, you're getting genuine Koyo product backed by local stock and support.
The Koyo Hyper V-Core 36mm Series represents the pinnacle of Koyo's all-aluminium radiator lineup. Developed specifically for high-heat, space-constrained applications where factory inlet/outlet positioning rules out a conventional N-FLO design, the Hyper V-Core uses a specially engineered fin and tube pitch geometry that dramatically increases surface area without compromising airflow. The result is a radiator that runs cooler, fits cleaner, and outlasts the OEM unit — all with a direct bolt-in installation.
Vehicle Fitment
| Vehicle | Engine | Transmission | Years |
|---|---|---|---|
| Subaru Forester SG XT | 2.5L Turbo (EJ255) | Manual & Automatic | 2004–2008 |
Specifications
| Part Number | VH13026 |
| Cross Reference | KV092217 |
| Series | Hyper V-Core 36mm |
| Construction | All-aluminium, Nocolok brazed |
| Fitment Type | Direct OEM replacement – bolt-in, no modification required |
| Transmission | Manual & Automatic |

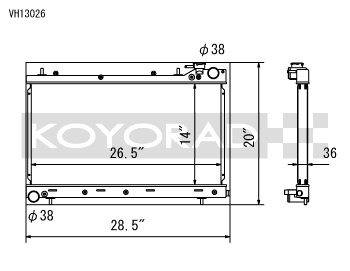

| Core Width | 26.5" (673mm) |
| Core Height | 14" (356mm) |
| Overall Width | 28.5" (724mm) |
| Overall Height | 20" (508mm) |
| Core Thickness | 36mm |
| Inlet / Outlet Diameter | Ø38mm (top & bottom) |
| Weight | 3 kg |
Key Features
- ✅ Hyper V-Core fin & tube geometry — maximises surface area and airflow in tight engine bays
- ✅ Nocolok furnace brazed — tubes, fins, headers, and brackets bonded as one unit for vibration and debris resistance
- ✅ Billet filler neck — precision-machined for strength, durability, and a positive seal
- ✅ OE-specific mounting points — retains factory fan shroud, inlet/outlet hose positions, and top/bottom mounting pins
- ✅ Heliarc hand-welded — every unit individually welded for the strongest possible aluminium-to-aluminium bond
- ✅ Direct bolt-in fitment — no cutting, drilling, or fabrication required
Installation Notes
- 2003–2005 Turbo XT (5MT): Return hose adaptation required — tap into the existing return hose using a T-fitting and approximately 300mm of coolant hose (not included).
- 2003–2005 models: The filler neck on this radiator requires a specific radiator cap suited to 2003–2005 Forester XT applications — sold separately.
- Automatic transmission vehicles: Compatible, however an external transmission oil cooler is required — sold separately.
