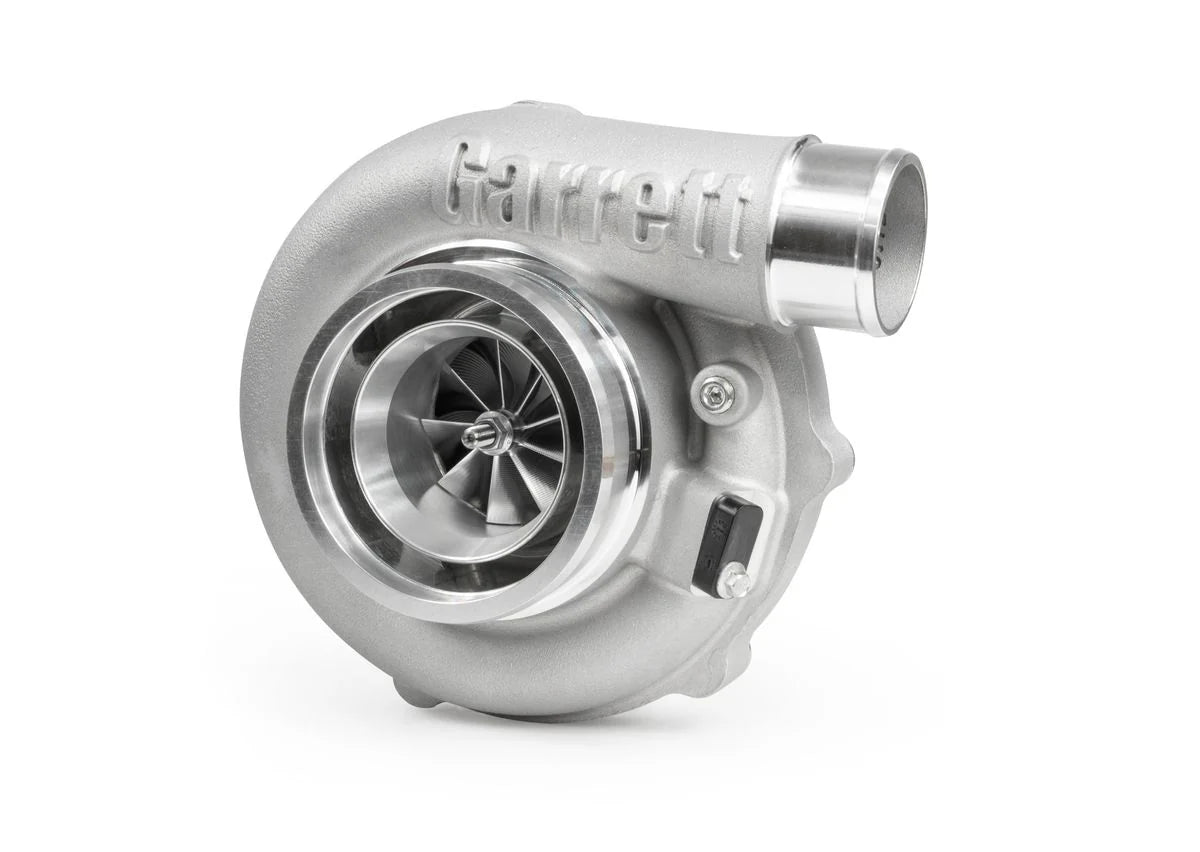

Garrett G35-990 G-Series II Supercore 62mm/76mm 0.72 A/R 68mm/62mm

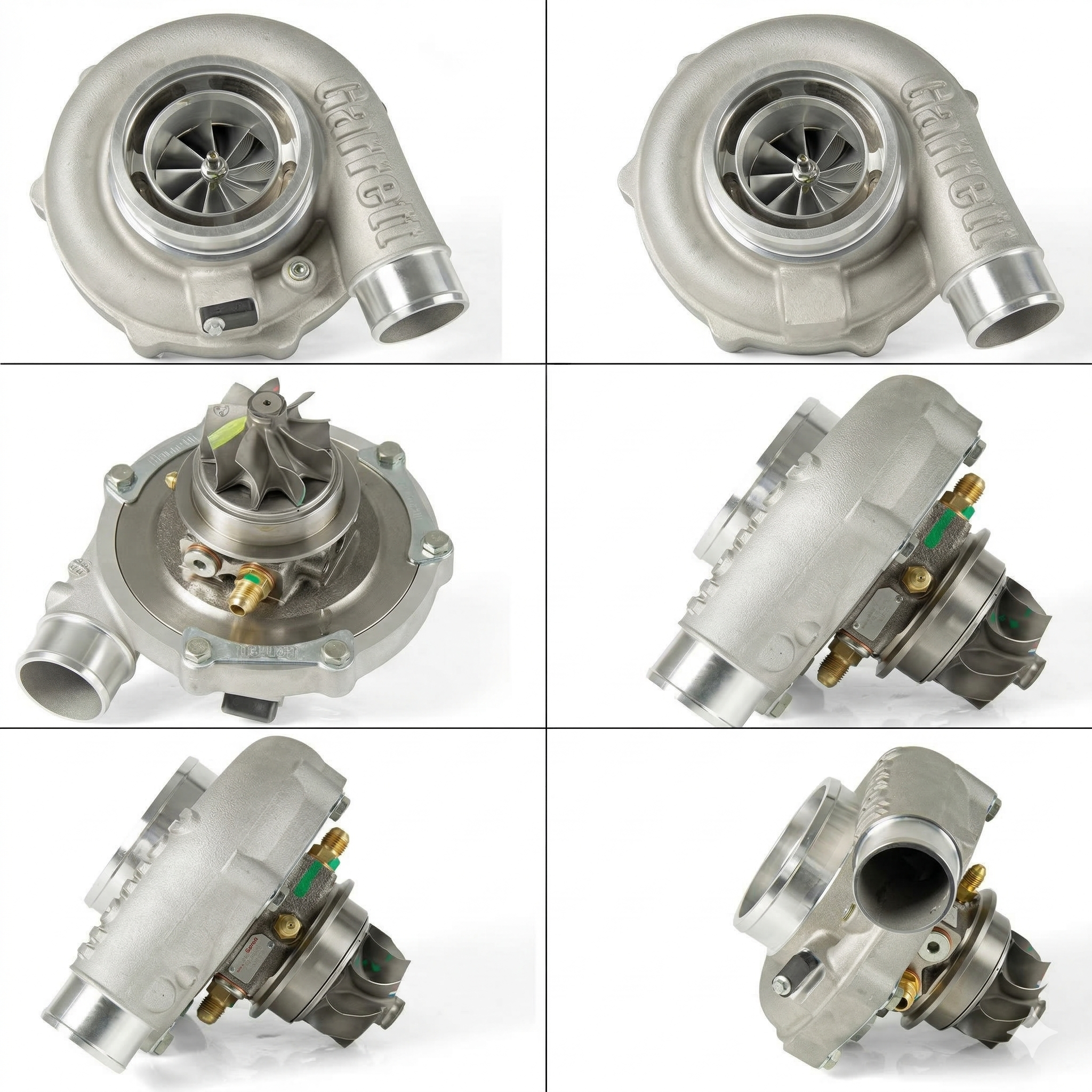

Garrett G35-990 G-Series II Supercore

The Garrett G35-990 G-Series II Supercore is engineered for serious performance builds demanding 550–990hp from a 2.0L–5.5L engine. This is the Standard Rotation Supercore only — Turbine Housing is not included.

Power & Application

• Power Rating: 550hp – 990hp
• Recommended Engine Displacement: 2.0L – 5.5L
• Bearing System: Ball Bearing
• Lubrication: Water and Oil

Compressor

• Inducer: 62mm
• Exducer: 76mm
• Trim: 65
• A/R: 0.72

Turbine

• Inducer: 68mm
• Exducer: 62mm

Why Garrett G-Series II?

• ✔ Advanced aerodynamics for maximum compressor efficiency
• ✔ Ball bearing CHRA for rapid spool and reduced turbo lag
• ✔ Water and oil cooled for thermal stability under sustained boost
• ✔ Designed and validated by Garrett Motion — a global leader in forced induction
• ✔ Supercore configuration allows full flexibility in turbine housing selection

Note: Turbine housing is not included. Sold as Supercore only. Please confirm turbine housing compatibility before ordering.
