Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb

Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb

Application: Radium FCST-X fuel cell surge tanks (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00)
Part Type: FCST-X 3-bolt remote mount fill neck, straight 1.5in barb
Part Number: 20-1027

A remote fuel filler setup has three parts: the remote filler (housing and cap), the remote fill neck that connects to the FCST or fuel cell, and the filler hose that links them. The 20-1027 is the remote fill neck for the FCST-X – a simple straight 1.5in machined barb that bolts to the FCST-X 3-bolt filler flange.

It's typically used with a body-mounted remote filler such as the Radium 20-1005-V or 20-1004-V (not included). The fill neck is sealed with an FKM O-ring and secured with stainless hardware.

Key Features

• FCST-X Specific: Bolts to the FCST-X 3-bolt filler flange
• Straight Barb: Machined straight 1.5in barb for the filler hose
• Seal: FKM O-ring seal
• Hardware: Stainless steel hardware

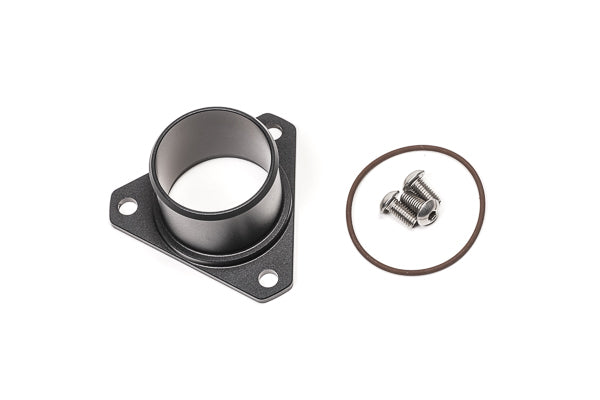

What's Included

• Flanged fill neck for 1.5in ID hose
• FKM O-ring seal
• Stainless steel hardware

Optional Parts

• Radium Engineering Remote Mount Fuel Filler - 1.5" Vented (20-1005-V) – body-mounted 1.5in remote standard filler
• Radium Engineering Dry Break - 1.5" Female Remote Mount (Vented) (20-1004-V) – body-mounted 1.5in remote dry break
• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – 1.5in ID filler hose kit
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) – the same fill neck with a 24AN 75° elbow

Important Notes

• FCST-X only – not compatible with the original 6-bolt FCST (Radium 20-0527 suits those)
• Remote filler and filler hose are sold separately
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks: 20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
