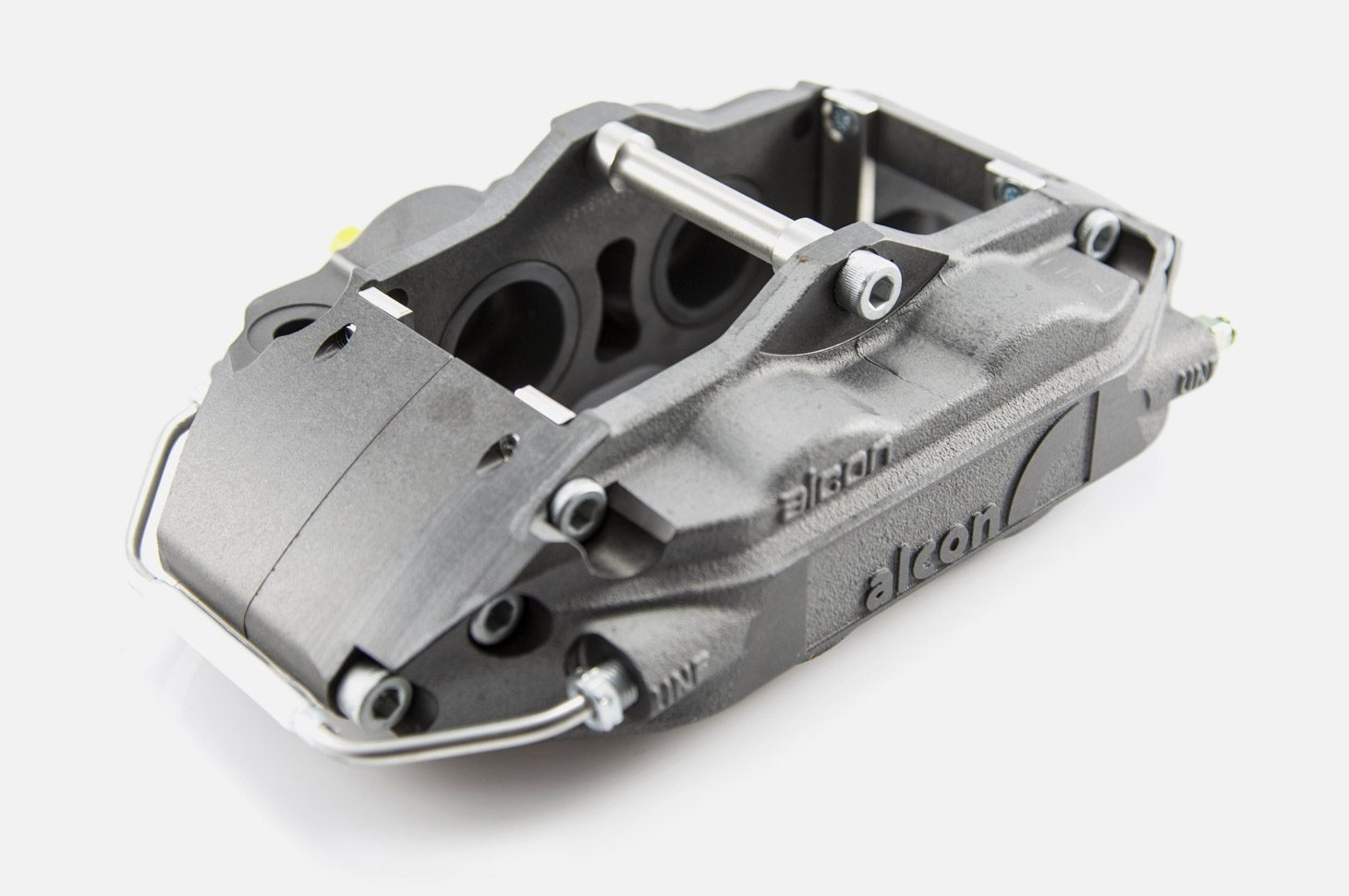

Alcon CRH304 4-Piston Brake Calipers - Pair

Alcon CRH304 4-Piston Brake Calipers

The Alcon CRH304 calipers represent the pinnacle of brake engineering for serious motorsport and high-performance street applications. Featuring Alcon's renowned 4-piston monoblock design, these calipers deliver exceptional stopping power, fade resistance, and pedal feel under the most demanding conditions.

Technical Specifications:

• Radial mount for maximum rigidity and firm, consistent pedal
• Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
• 2kg anti-knock back springs
• Remove pad retainer bolt and sleeve to change pads
• Stainless steel fluid transfer pipe
• Disc diameter range Ø250 – 304mm
• Disc thickness range 25.4 – 28mm
• Fluid inlet 3/8-24 UNF (-3) male
• Dry weight 1.9kg excluding pads
• Alcon pad reference 4463/39 area 80cm2 or 4463/42 area 92cm2, 16mm thick, 113.5mm long

Key Features:

• 4-piston monoblock caliper design for maximum rigidity and consistent performance
• Lightweight construction reduces unsprung weight
• High-temperature capability for extended track sessions
• Precision CNC-machined from billet aluminum
• Multiple pad compound options available
• Proven on track and street worldwide

Performance Benefits:

• Superior heat dissipation for consistent performance during extended track sessions
• Reduced brake fade under heavy use
• Improved modulation and pedal feedback
• Reduced unsprung weight improves handling and suspension response
• Direct replacement upgrade for OEM brake systems

About Alcon:

Alcon has been at the forefront of brake technology for over 35 years, supplying braking systems to Formula 1, Le Mans, and top-tier motorsport teams globally. Every Alcon component is engineered and manufactured in the UK to the highest standards, combining race-proven technology with street reliability.

Fitment: Please contact us to confirm fitment for your specific vehicle application. Additional components such as rotors, brake lines, and mounting hardware may be required.

Lead Time: This is a special-order item. Please allow 4-6 weeks for delivery from the UK. Contact us for current stock availability.

Professional installation is strongly recommended. Brake system modifications should only be performed by qualified technicians.
