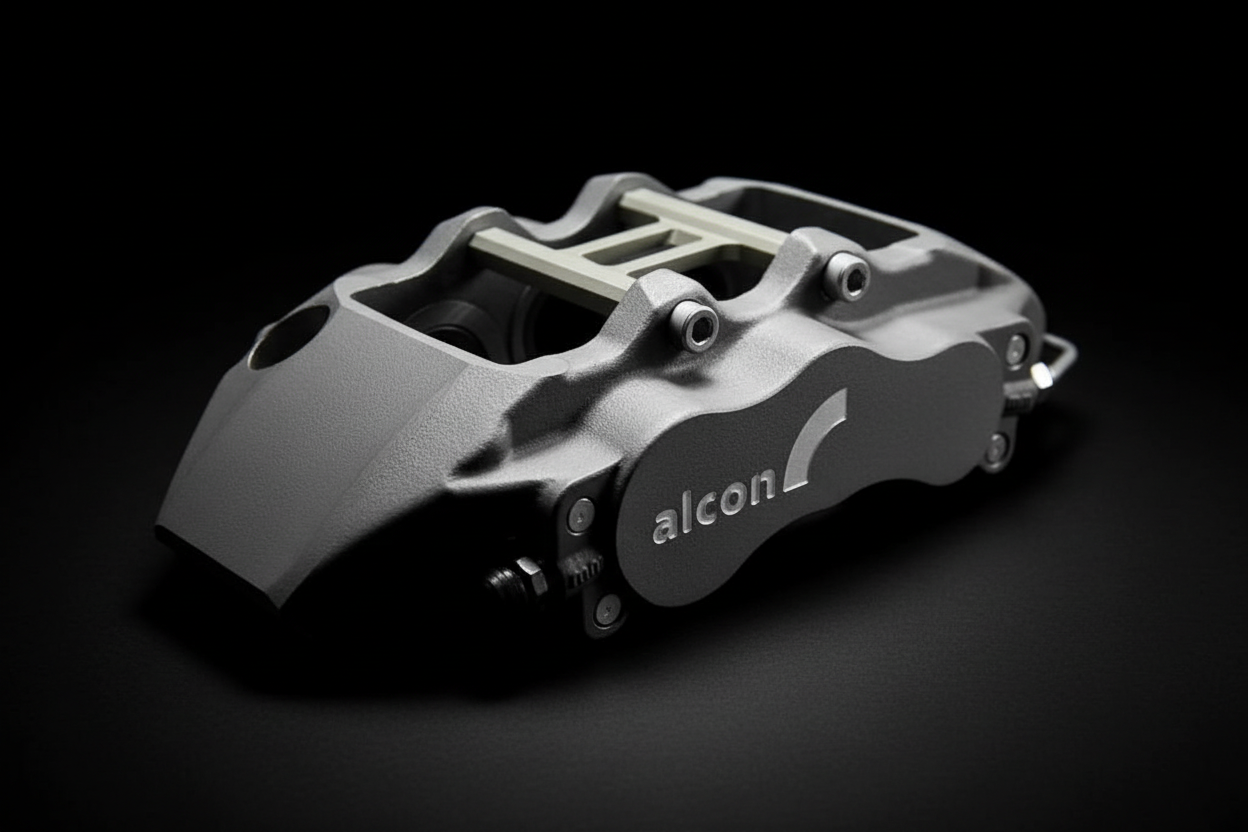

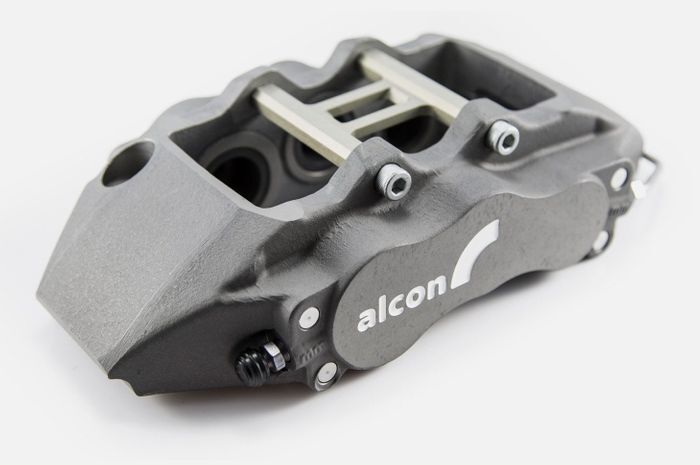

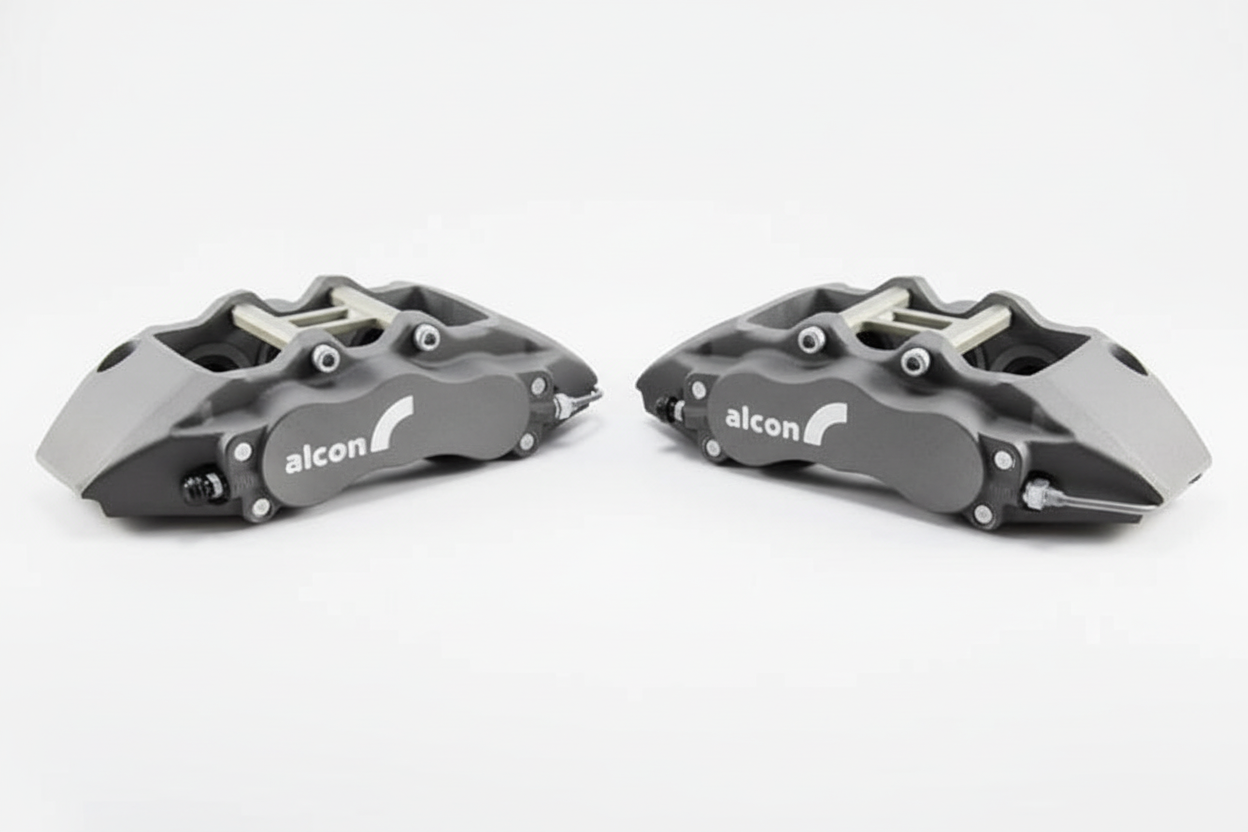

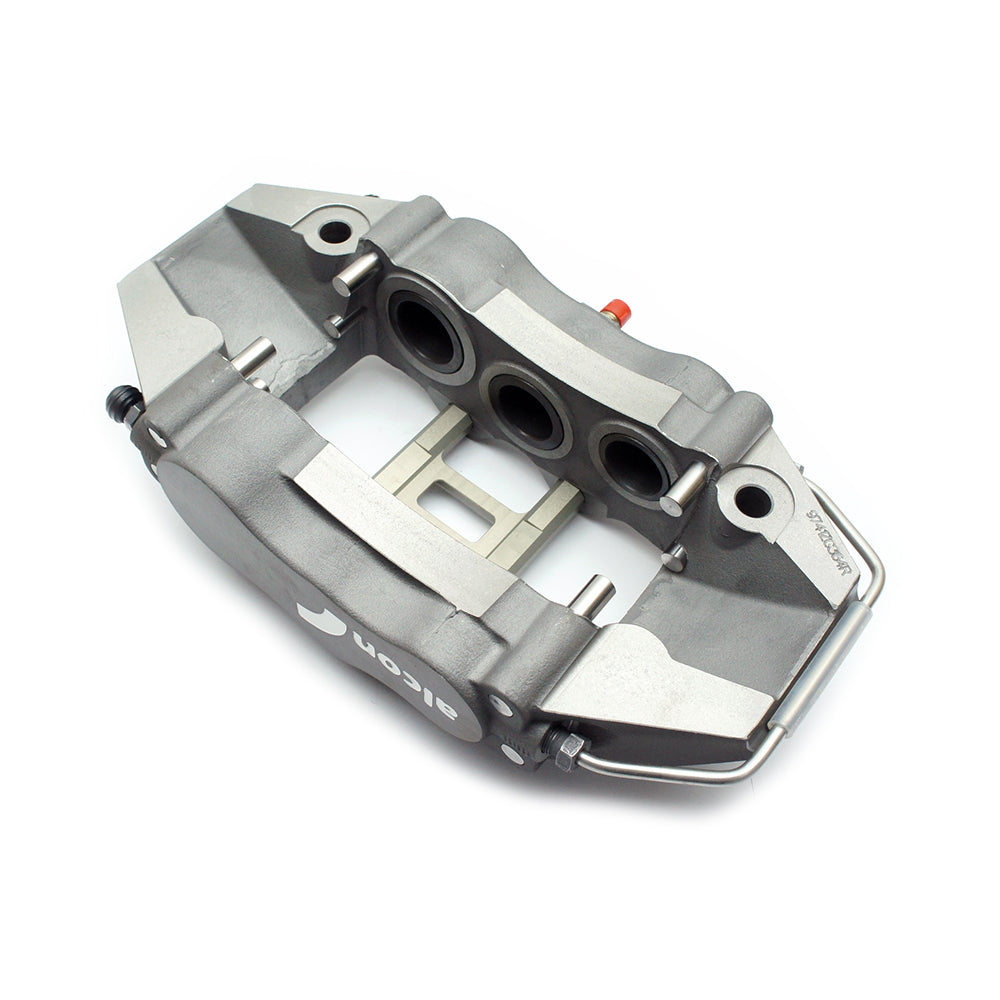

Alcon CR6380 "Motorsports" 6 Piston Calipers 30.2/34.9/38.1 (PAIR)

The Alcon CR6380 "Motorsports" 6 Piston brake caliper delivers exceptional stopping power through triple differential bore sizing (30.2mm, 34.9mm, 38.1mm). Engineered for serious motorsport applications, this radial-mount caliper provides maximum rigidity and consistent pedal feel under the most demanding track conditions. The six-piston configuration ensures superior pressure distribution across the brake pad, reducing fade and delivering precise modulation lap after lap.

Key Features

Piston Configuration: Triple differential bore sizing (Ø30.2mm / Ø34.9mm / Ø38.1mm) minimizes pad taper wear for extended pad life
Mounting: Radial mount design for maximum rigidity and firm, consistent pedal response
Piston Material: Aluminum pistons as standard, with optional stainless steel pistons available to reduce heat transfer to brake fluid
Anti-Knock Back: 2kg anti-knock back springs maintain optimal piston position during high-speed cornering
Wear Protection: Hard stainless steel wear plates for extended caliper service life
Pad Support: Hard stainless steel pad support and abutment pins ensure consistent pad alignment
Pad Retention: Fixed retainer bar system maximizes caliper stiffness (caliper removal required for pad changes)
Application: Motorsport, racing, and extreme track day use where maximum stopping power is essential

Performance Benefits

Maximum Stopping Power: Six-piston design delivers exceptional braking force for high-performance applications
Superior Rigidity: Radial mount configuration eliminates flex for consistent pedal feel
Reduced Pad Wear: Differential bore sizing minimizes uneven pad taper, extending pad service intervals
Heat Management: Optional stainless steel pistons reduce heat transfer, maintaining brake fluid integrity
Professional Grade: Proven motorsport caliper design trusted by racing teams worldwide
