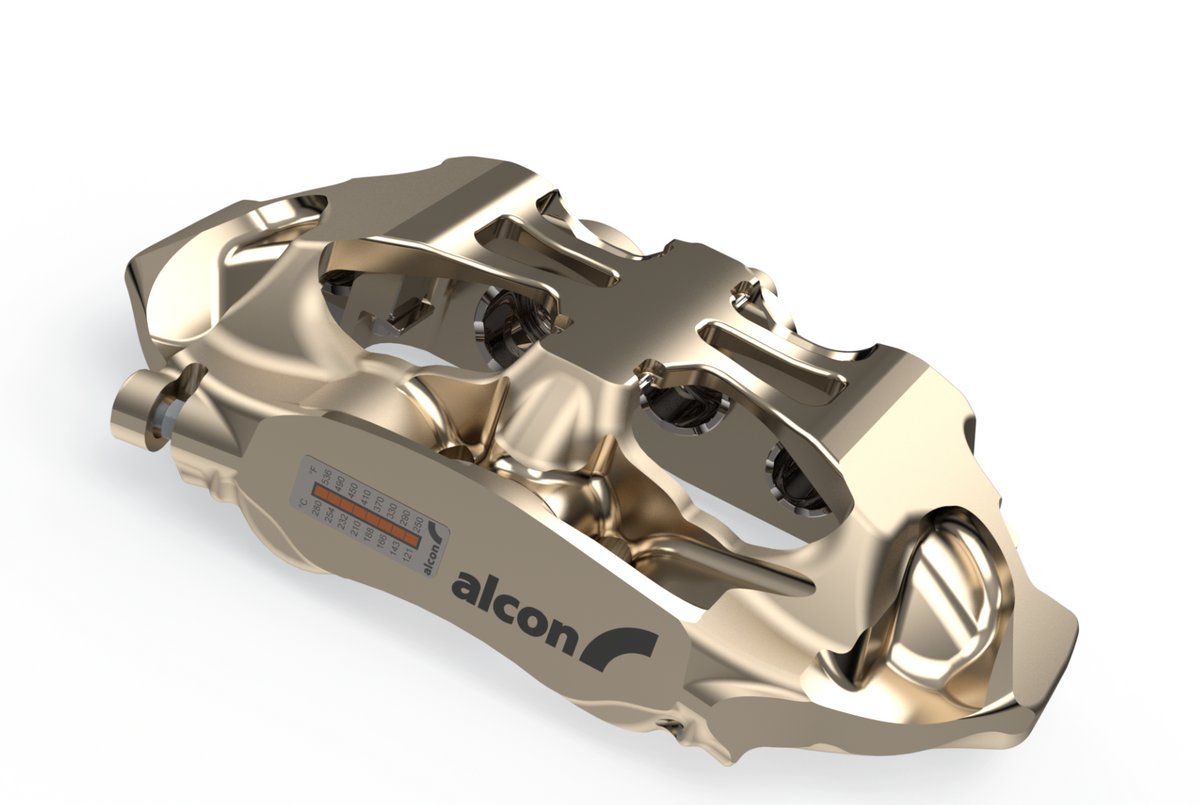

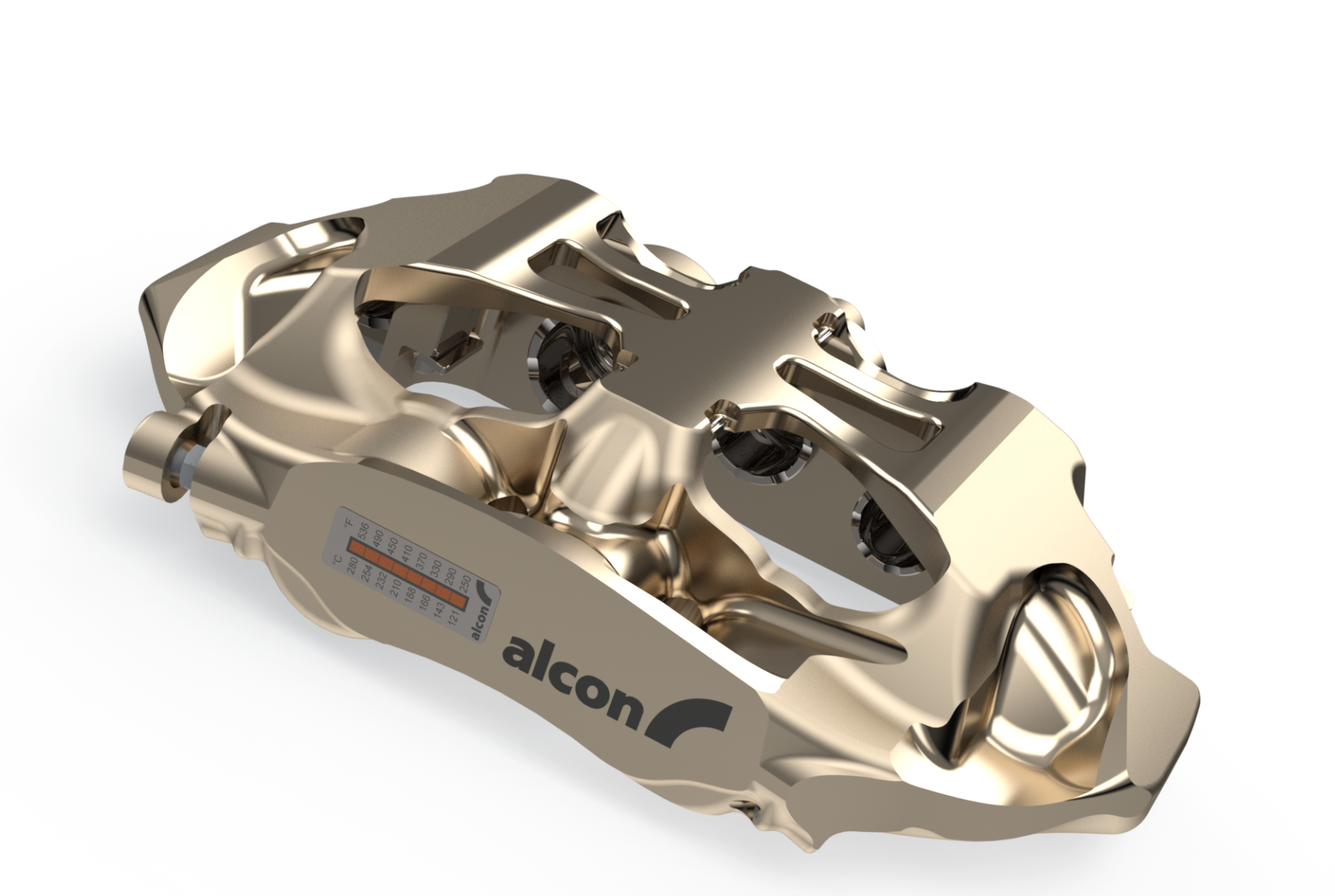

Alcon Next Generation GT 6-Piston Monobloc Brake Calipers – ENP Coated (Per Pair)

Alcon CAR9549ZG113PSLT/RT ENP-Coated 6-Piston Brake Calipers

Alcon forged aluminium alloy monobloc brake calipers featuring a topology-optimised design, ENP coating and six stainless steel pistons. Designed for applications using brake discs up to 395 mm diameter and 32 mm thickness, with a trailing mounting orientation.

The monobloc construction combines a premium forged aluminium alloy body with a weight-conscious design. This configuration uses staggered 30.2 mm, 34.9 mm and 38.1 mm stainless steel pistons, with two pistons of each diameter per caliper.

Part Numbers

• CAR9549ZG113PSLT: Left-hand caliper
• CAR9549ZG113PSRT: Right-hand caliper

Service Parts Reference

The supplied parts documentation lists the following service components. This reference does not indicate that replacement parts are supplied separately with the calipers.

• PSS3042X650: 30.2 mm stainless steel piston, 2 per caliper
• PSS3542X650: 34.9 mm stainless steel piston, 2 per caliper
• PSS3842X650: 38.1 mm stainless steel piston, 2 per caliper
• SSC3435X616: 2 kg anti-knockback spring, quantity 2
• SSC3435X609: 2 kg anti-knockback spring, quantity 4
• CSK303538E771: replacement axle seal set containing 4 × 30.2 mm, 4 × 34.9 mm and 4 × 38.1 mm piston seals
• FSB3430X689: bleed screw
• SER0080X176: EPDM O-seal
• ASC4495X599: abutment plate
• SSC4495X600: pad support
• BSS0080X1634: M4 × 0.7 × 10 Torx head cap screw
• PSC4495X689: upper wear plate
• THS0080X087: Alcon thermal strip, 121–280°C

Confirm mounting dimensions, disc and pad compatibility for your application before ordering. No vehicle-specific fitment is stated.
