Advan GT Beyond 5x120

Advan GT Beyond 5x120

Brand: Advan Racing
Model: GT Beyond
Construction: Mould-form forged A6061 aluminium
PCD: 5x120

GT Beyond is the first update to the timeless ADVAN Racing GT design since it was launched.

It is made from A6061 aluminium using the mould-form forging method, and uses a barrel rim to clear today’s large, high-performance brake systems. Because of the barrel rim, the outer rim depth is the same across all sizes, and five concave spoke profiles are matched to rim width, inset and vehicle.

Key Features

• Construction: Mould-form forged A6061 aluminium

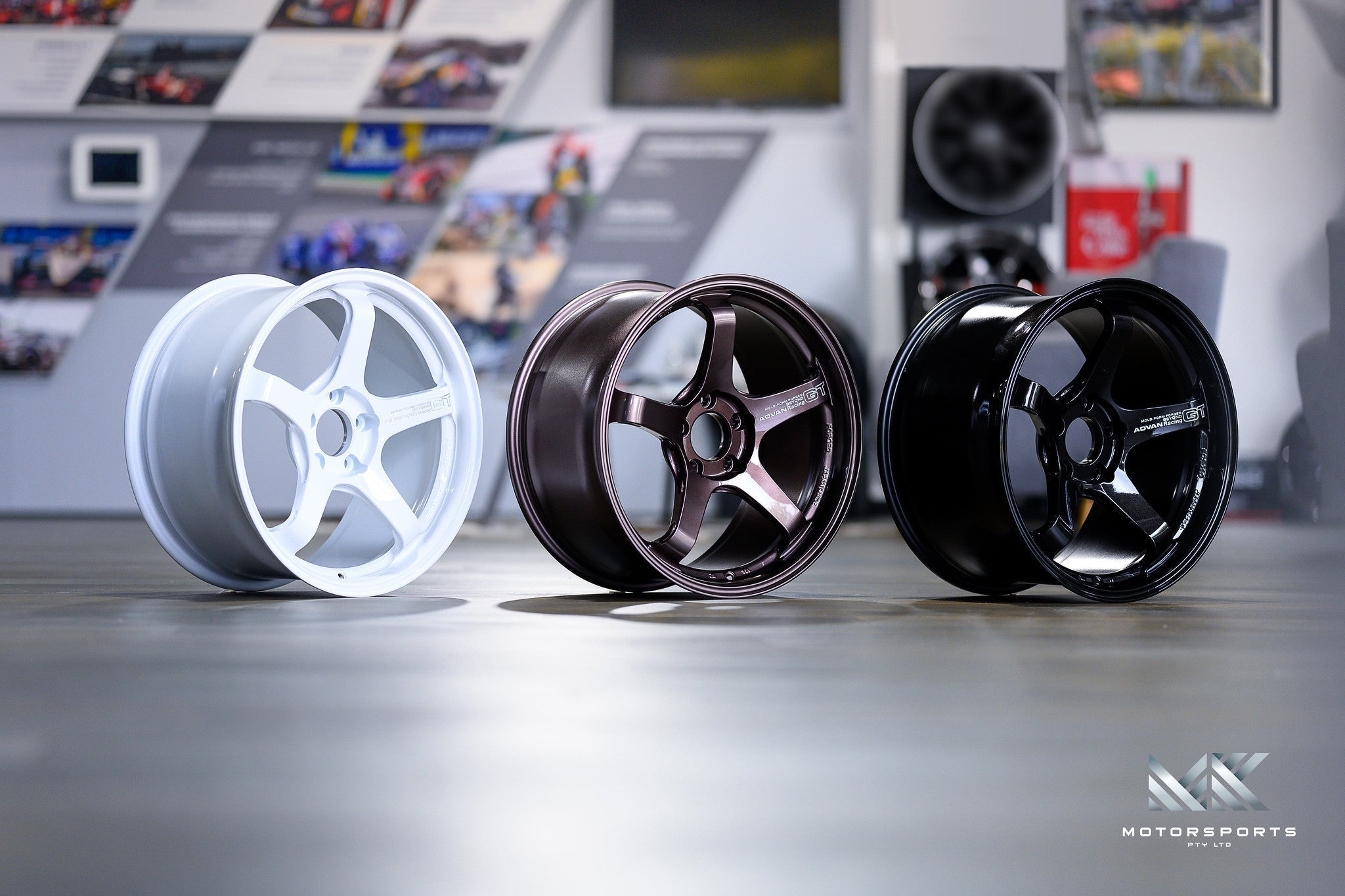

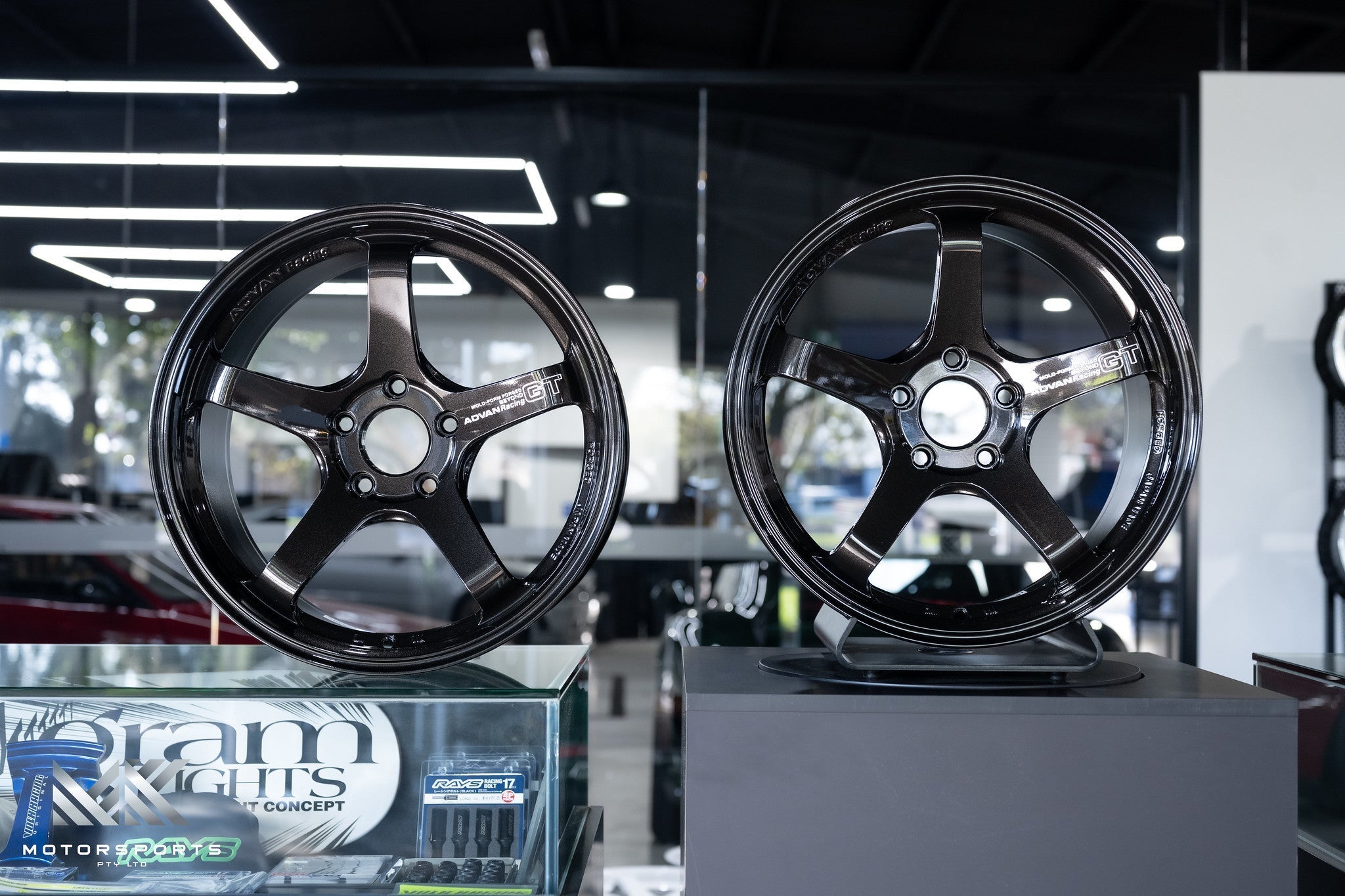

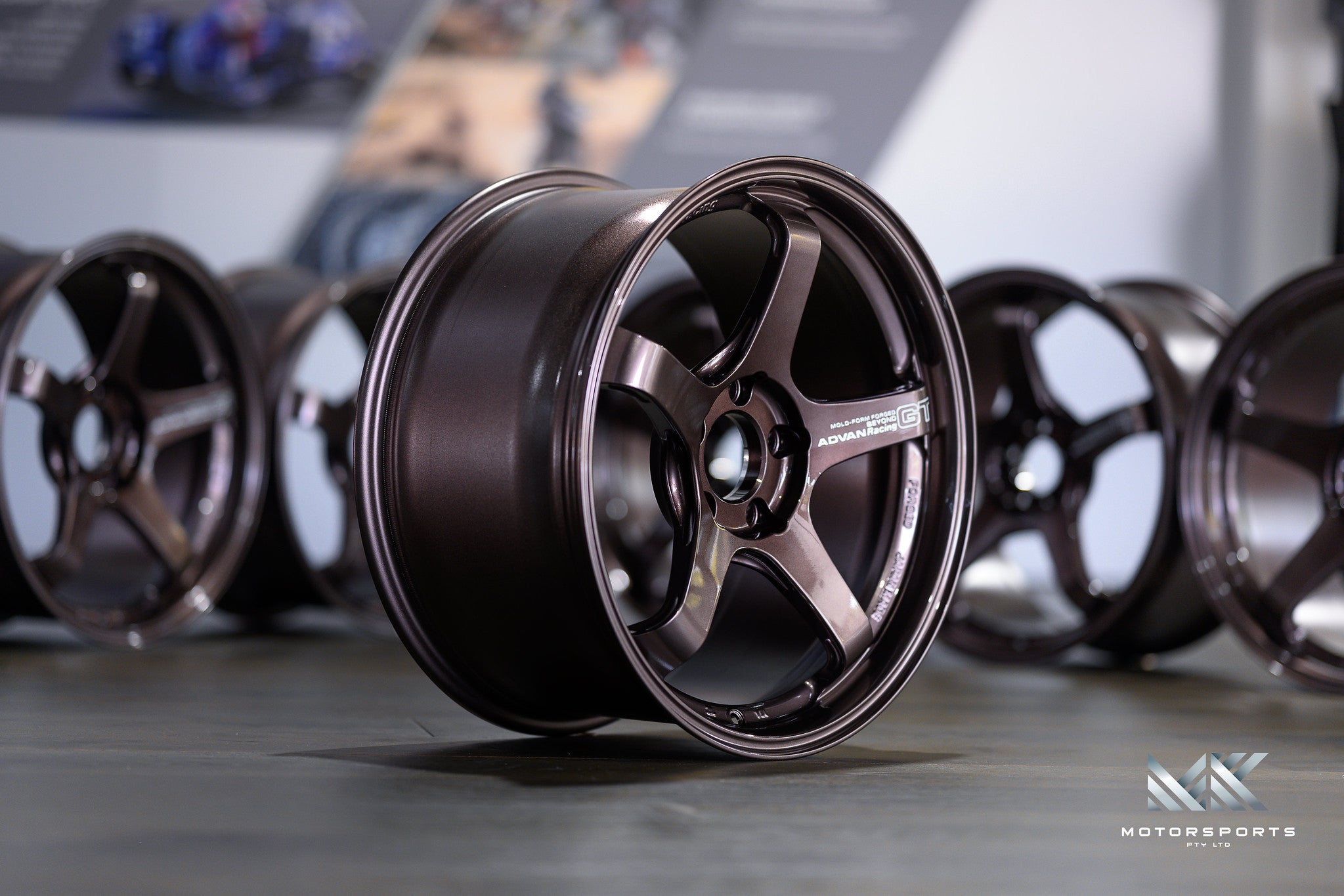

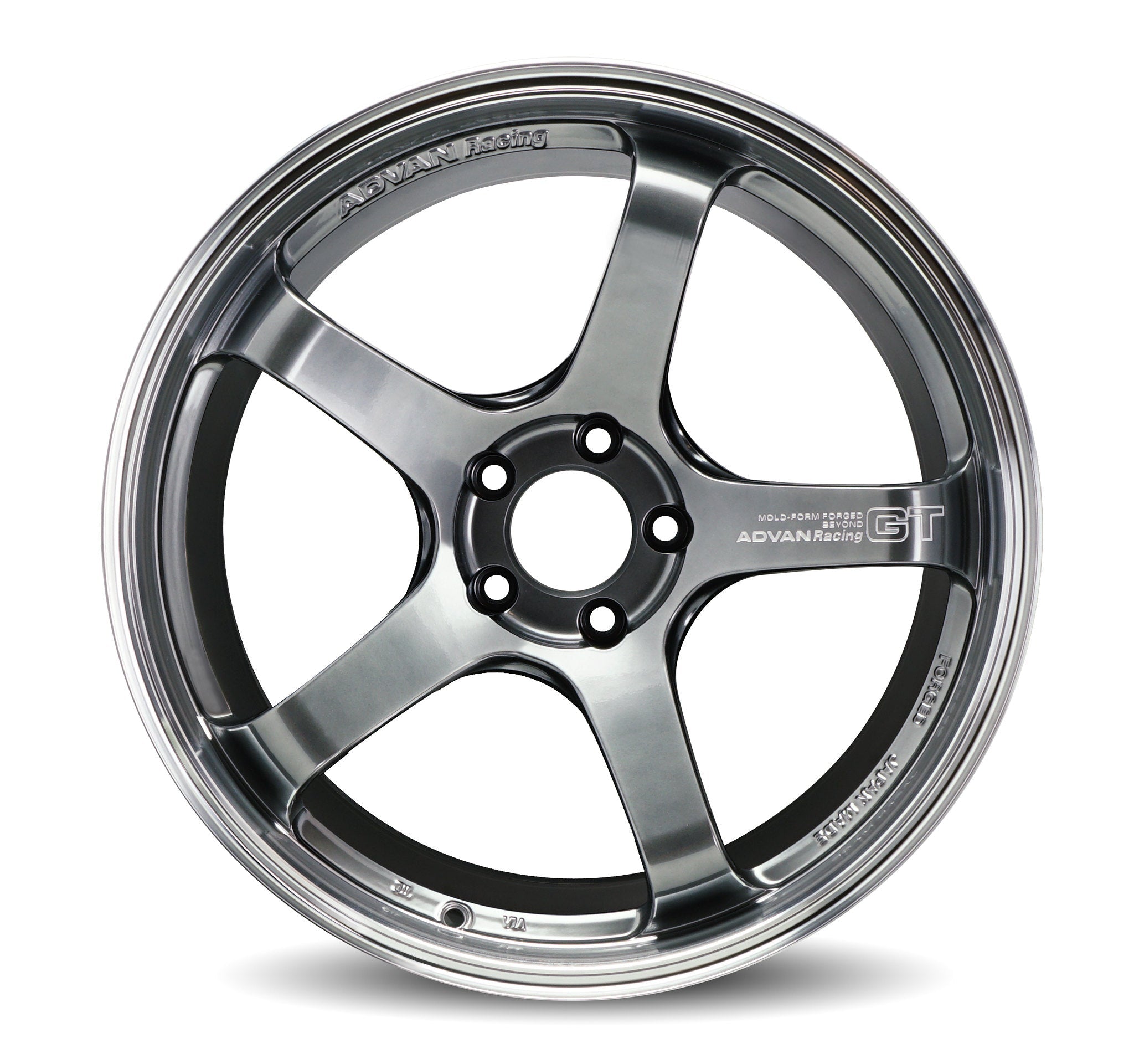

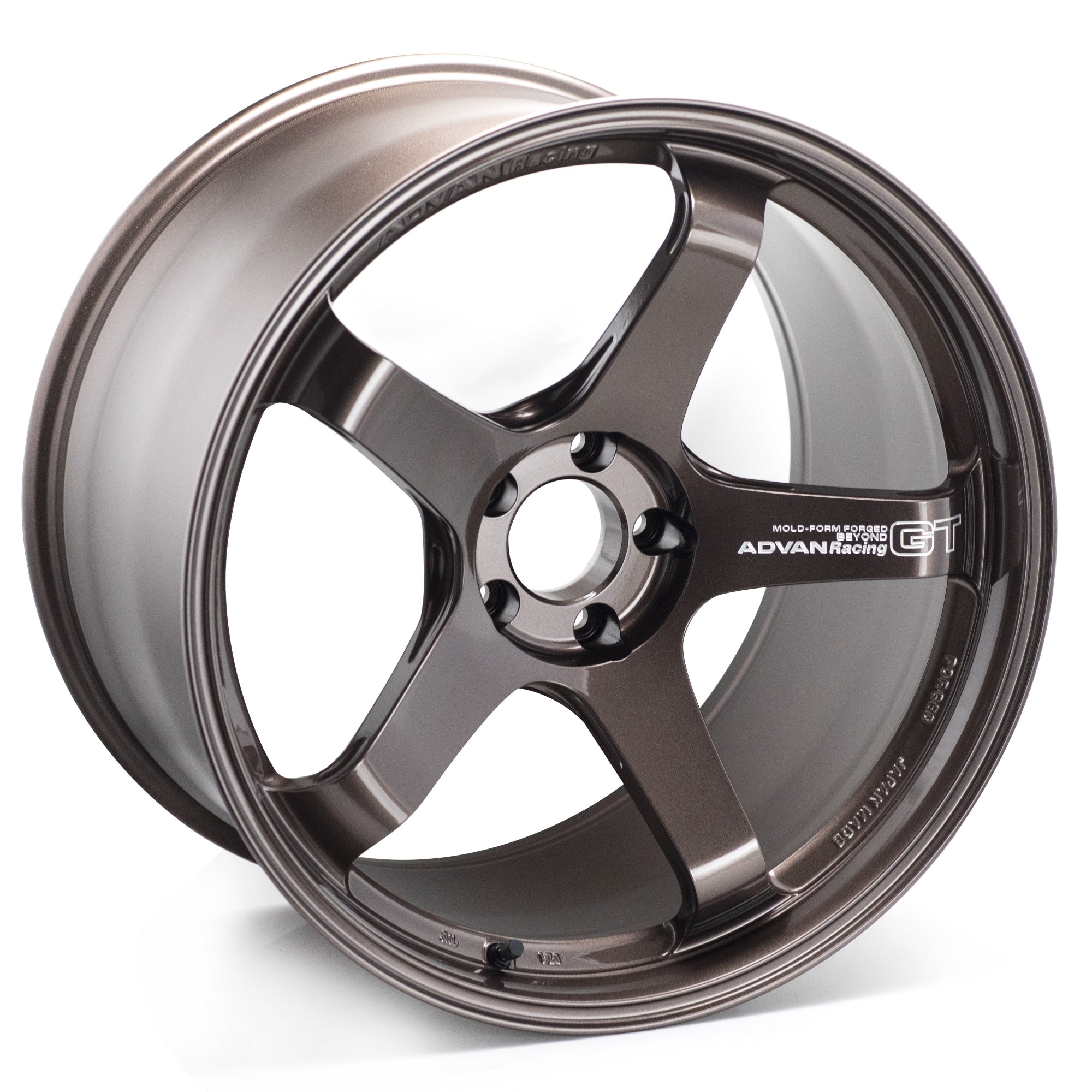

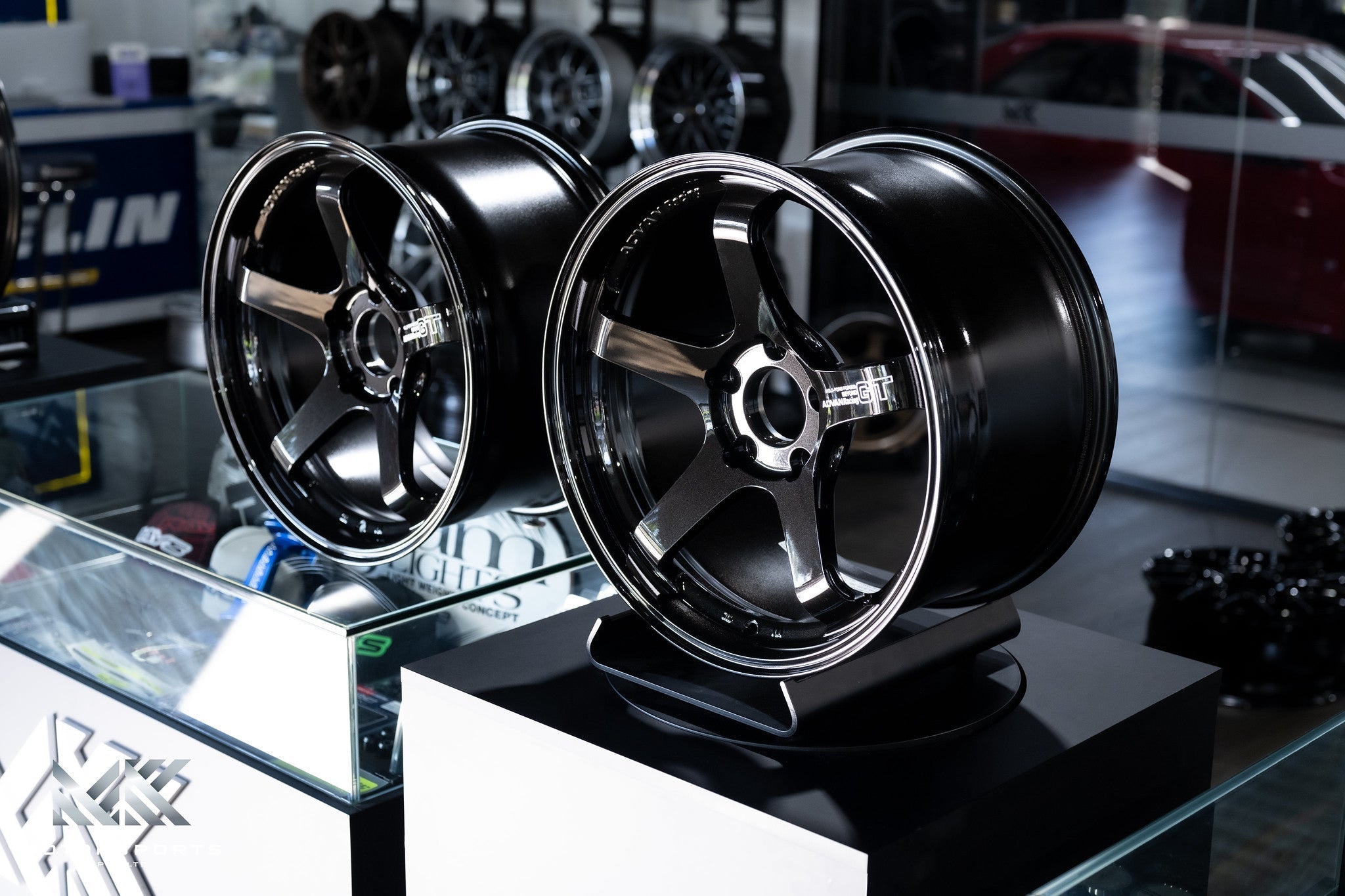

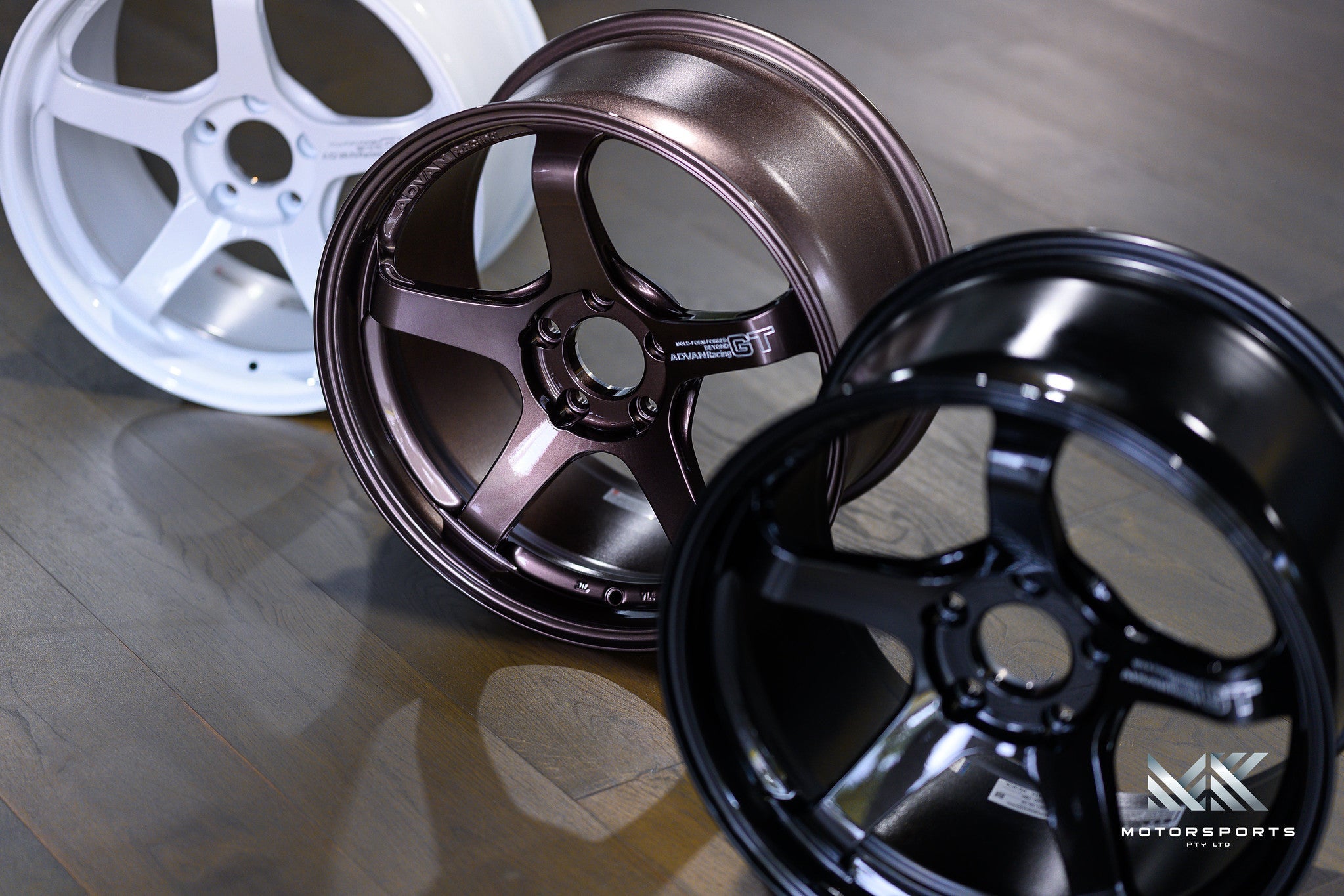

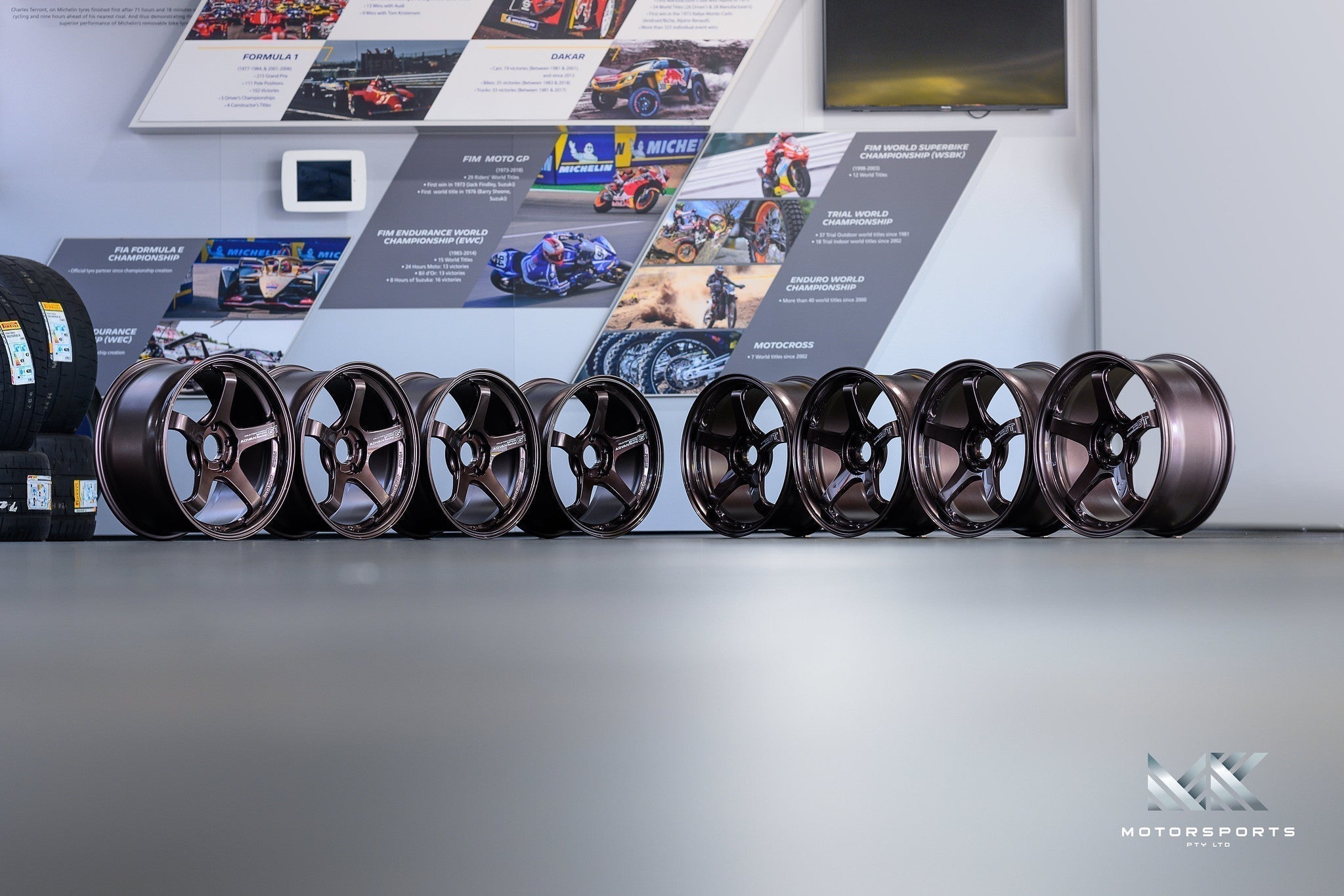

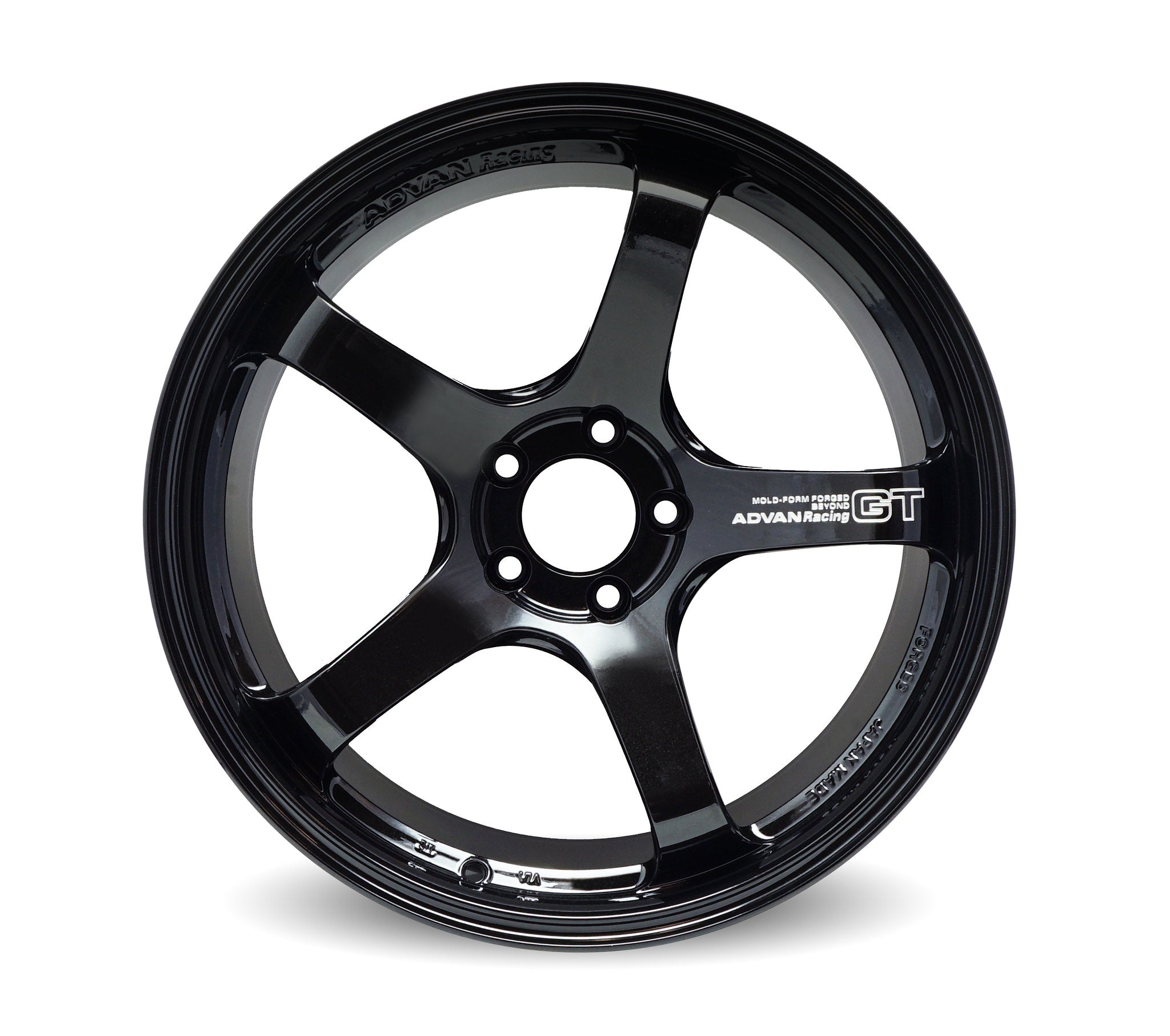

• Finish: Hyper Platinum Black (MPB), Racing Titanium Black (TBK), Racing Copper Bronze (RCB), Racing White (RWW)
• Barrel rim for large brake clearance, with five concave spoke profiles (C1–C5)

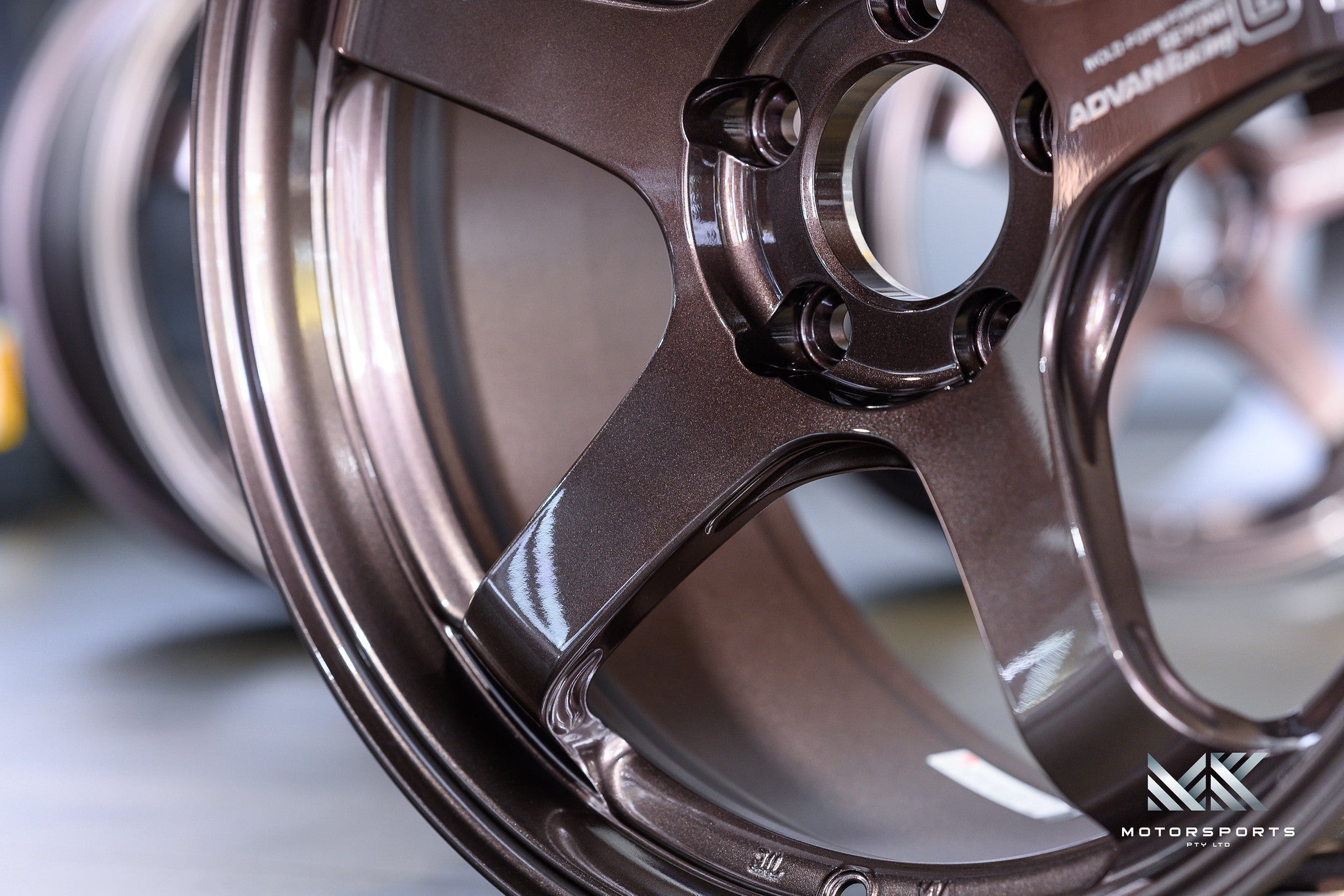

• Side cuts only where the spokes meet the hub and at their outer ends, balancing low weight and rigidity

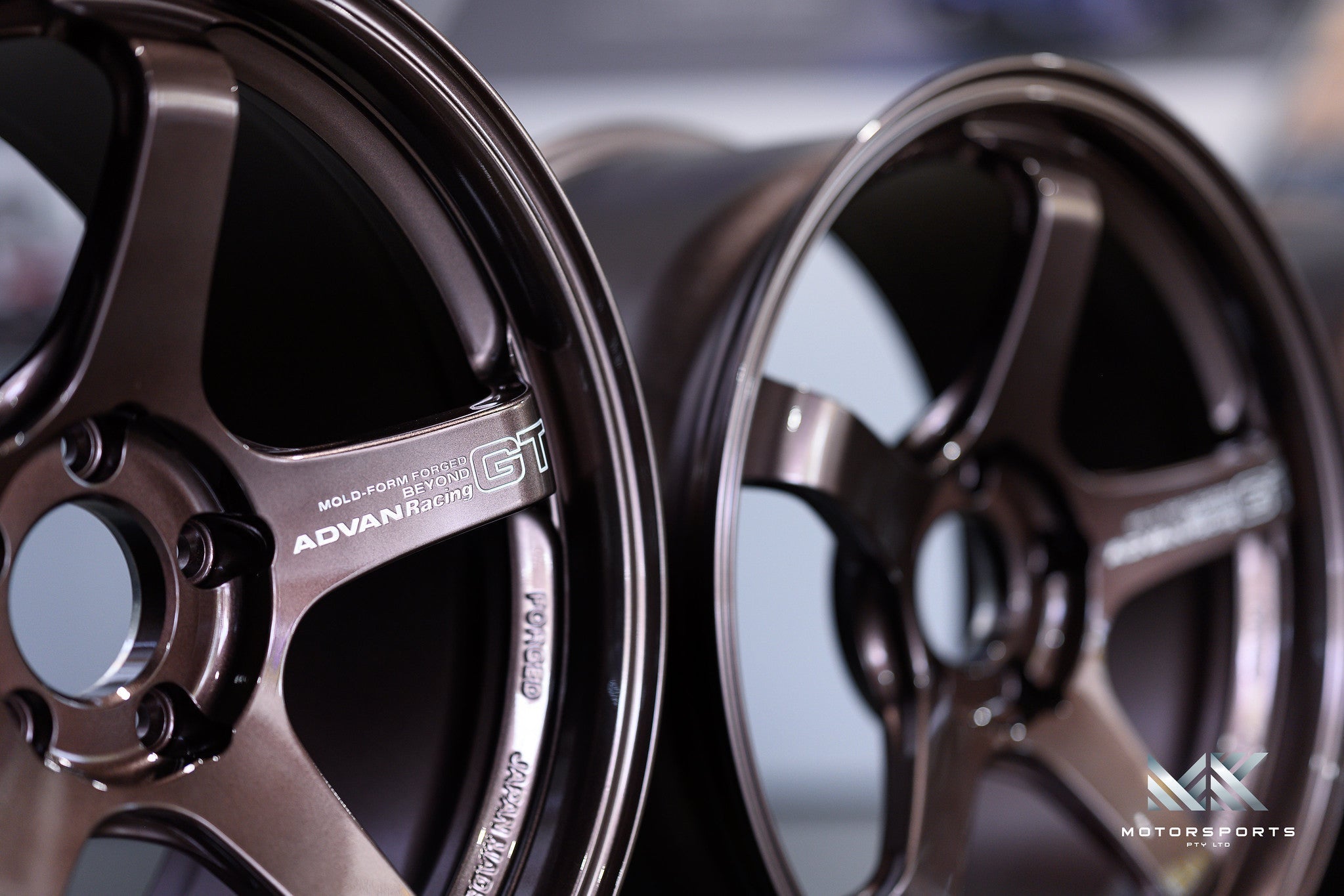

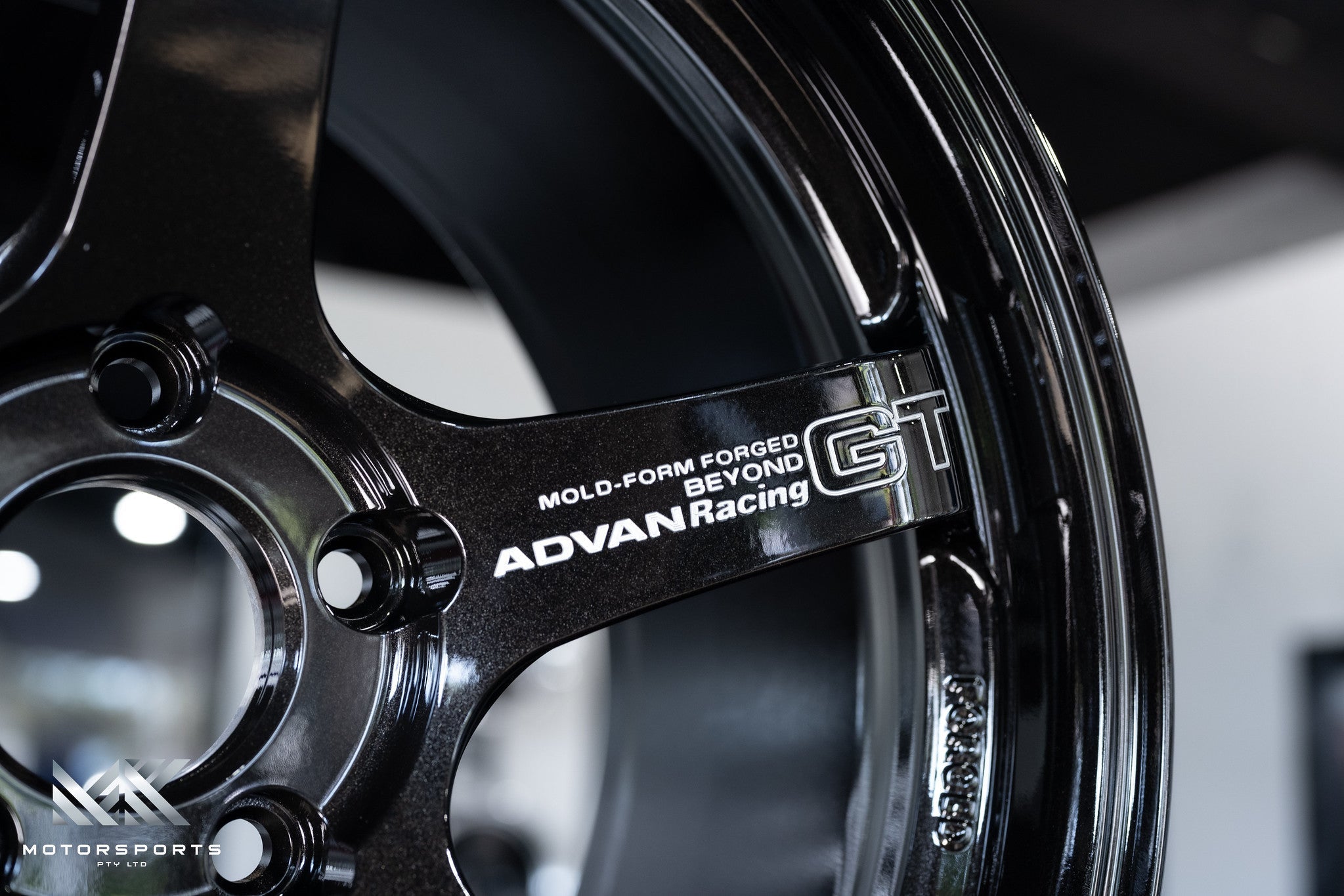

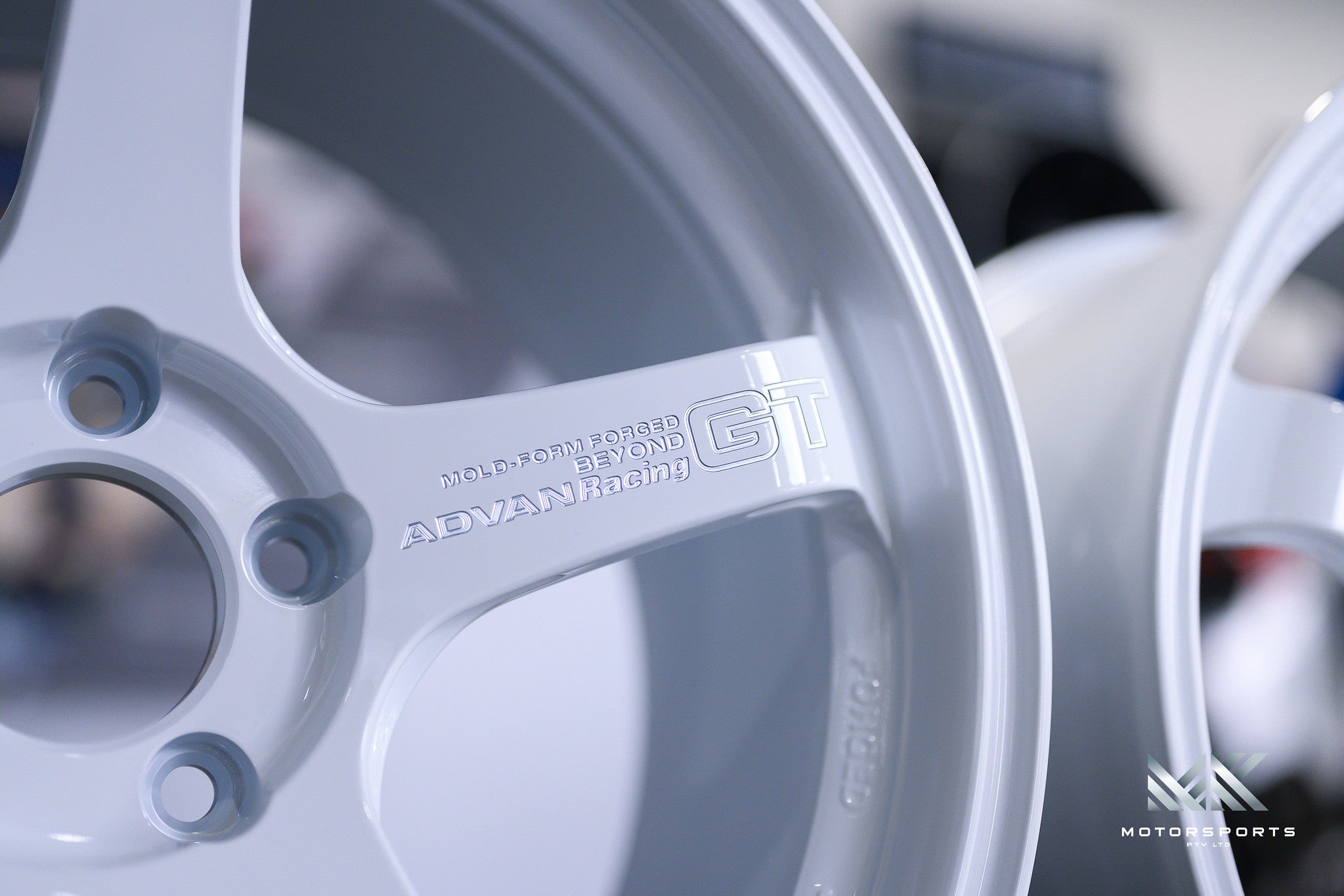

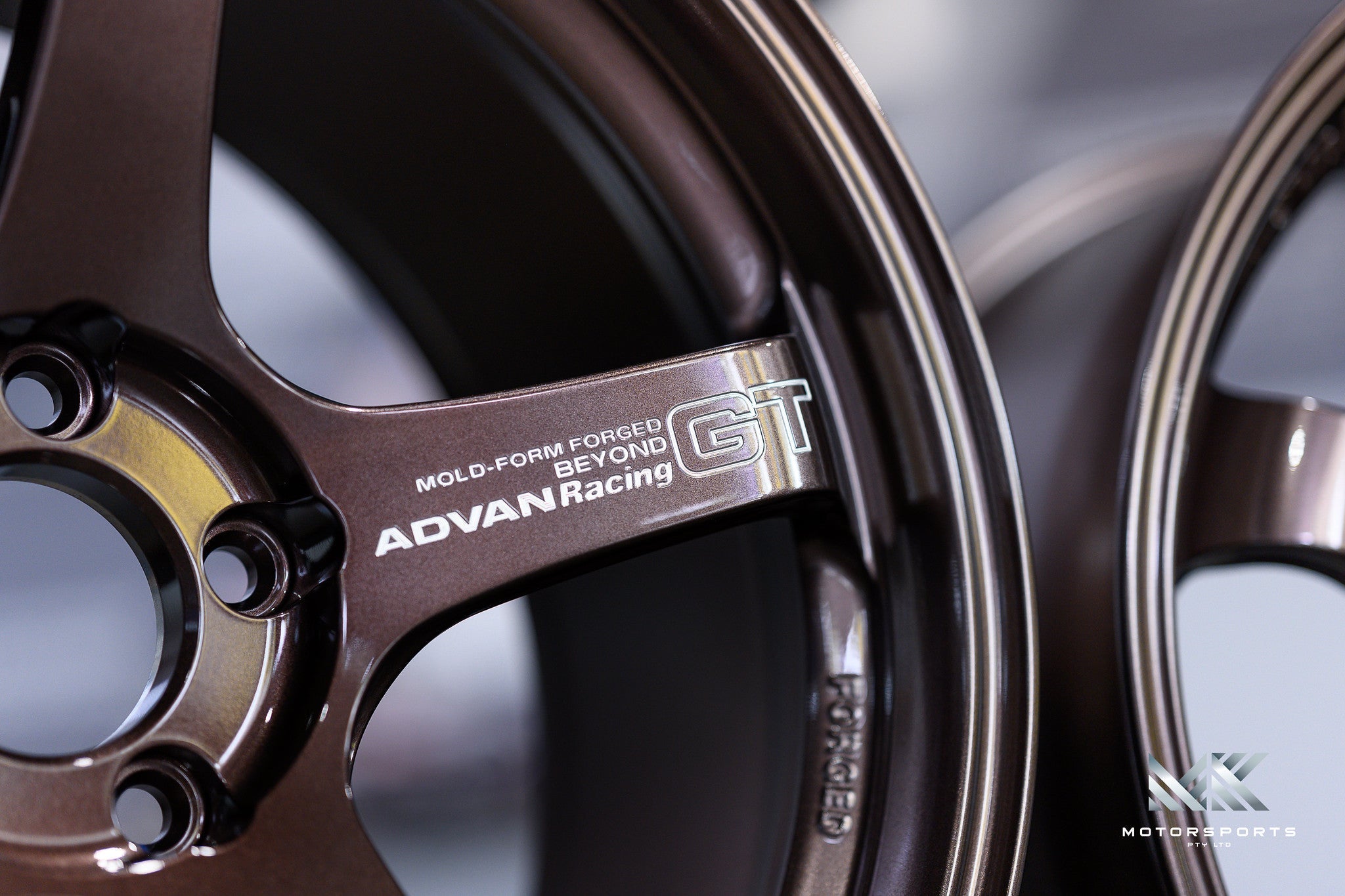

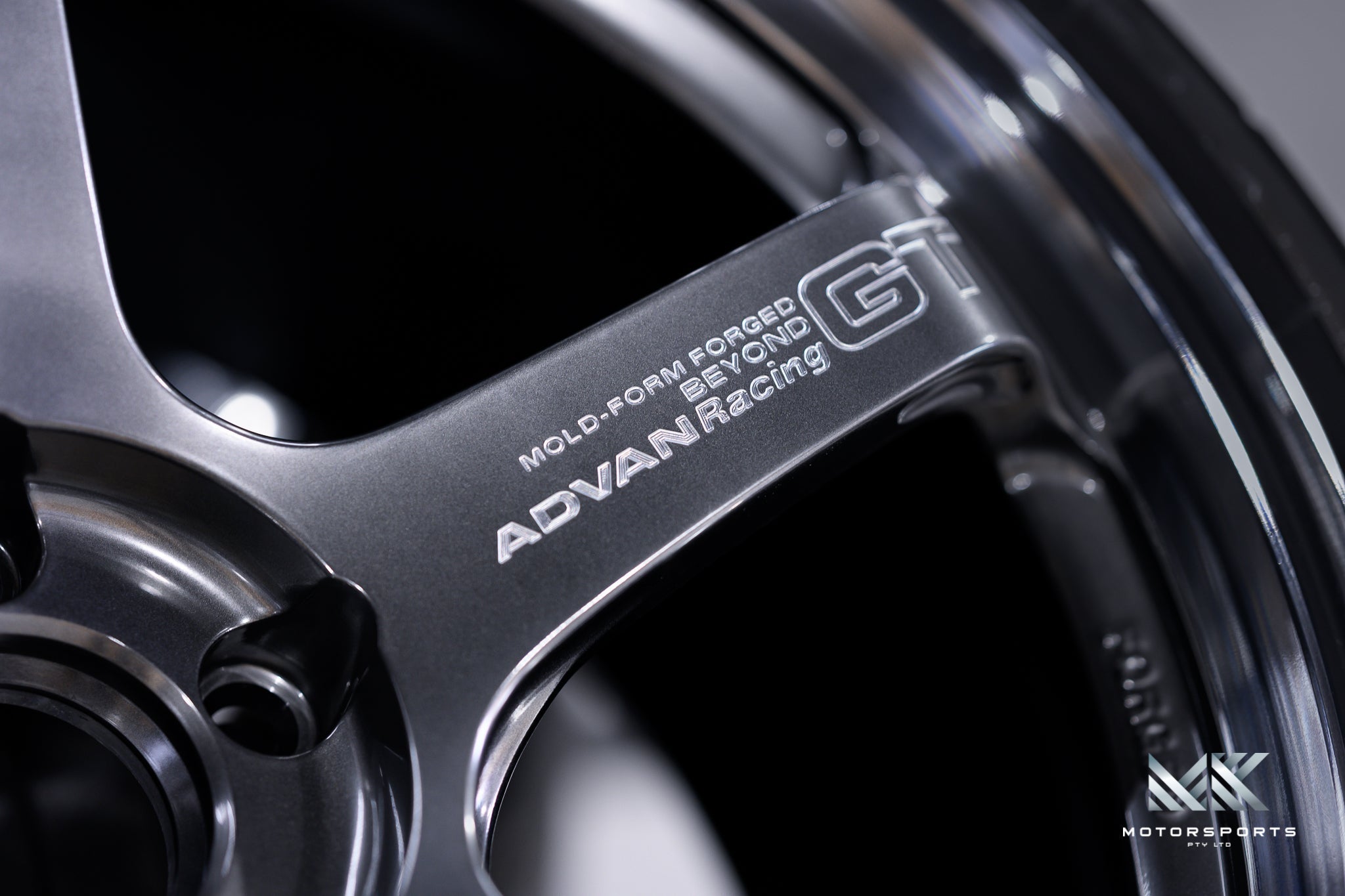

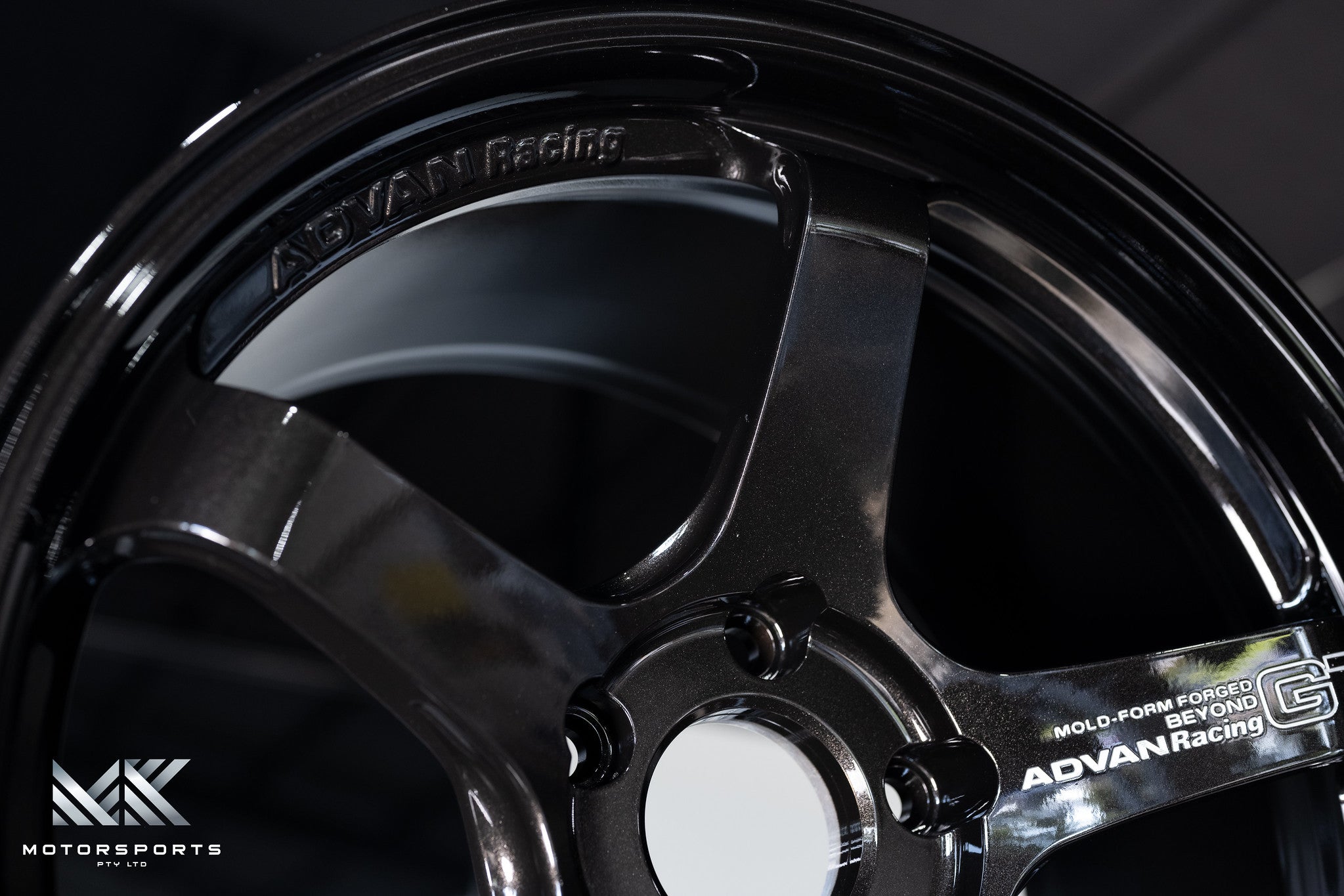

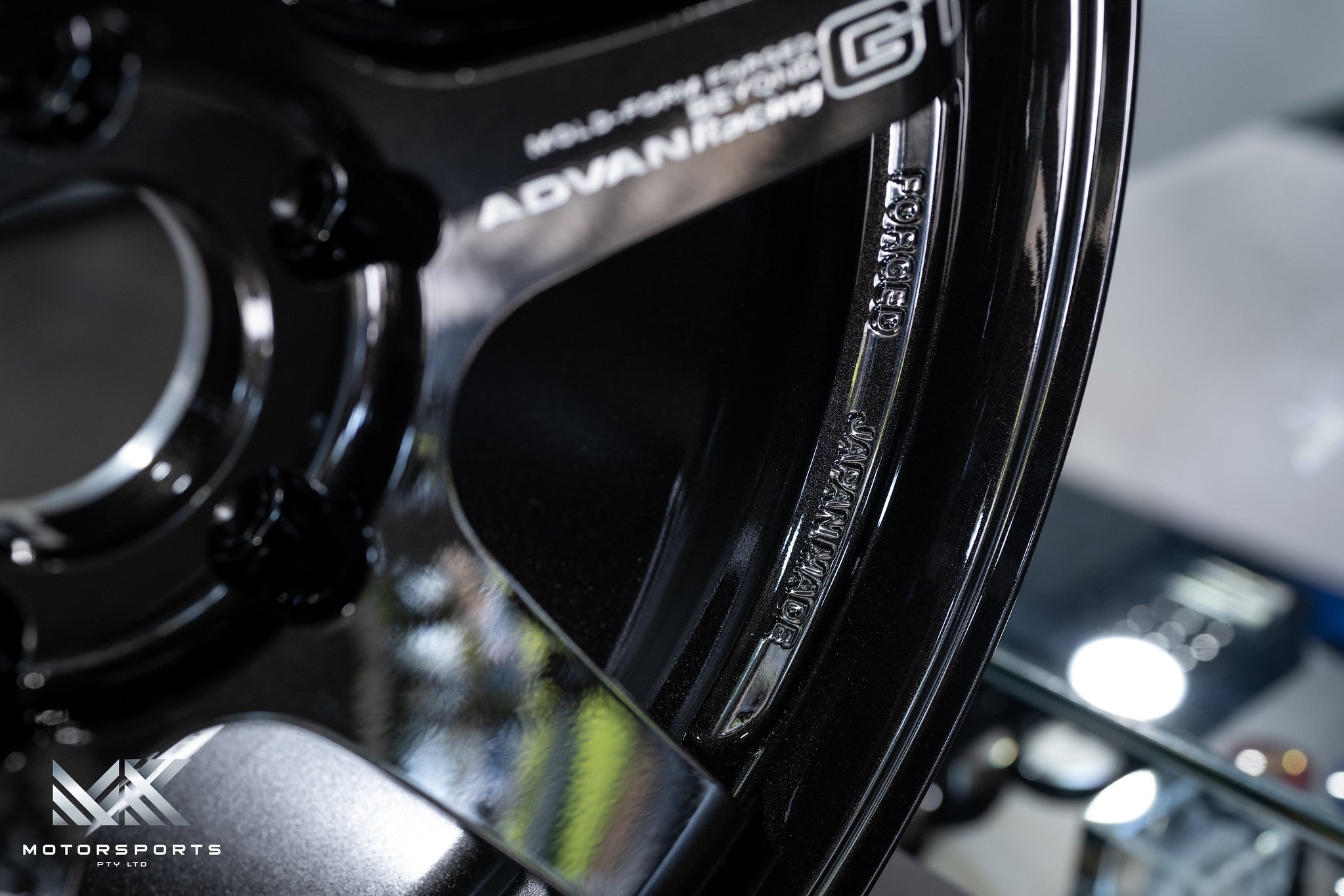

• Logo milled into the spoke faces on a 3D NC milling machine, reading “BEYOND” in place of the GT Premium Version’s “A6061-T6”

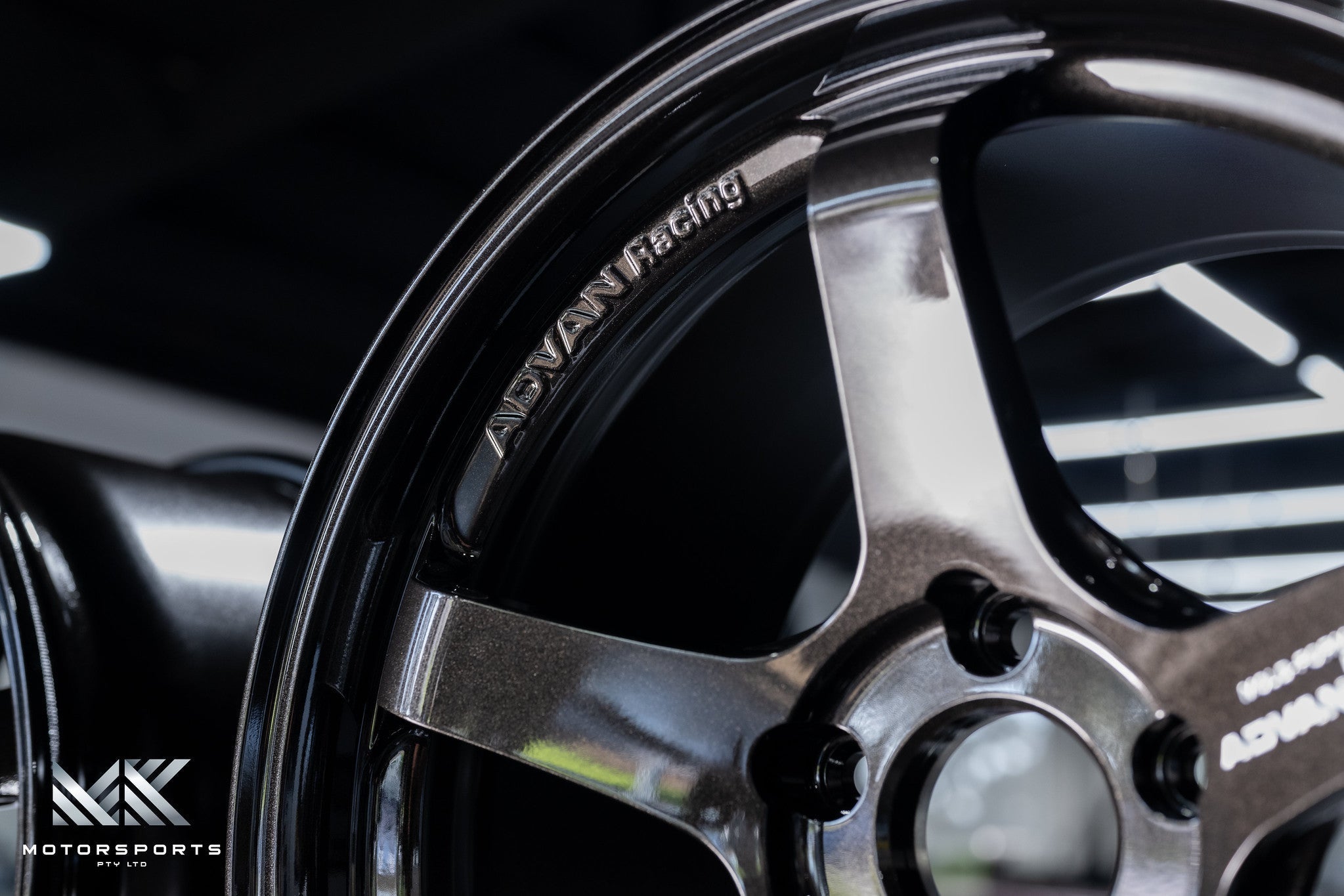

• Anti-slip rim treatment to reduce tyre slip

Available Sizes

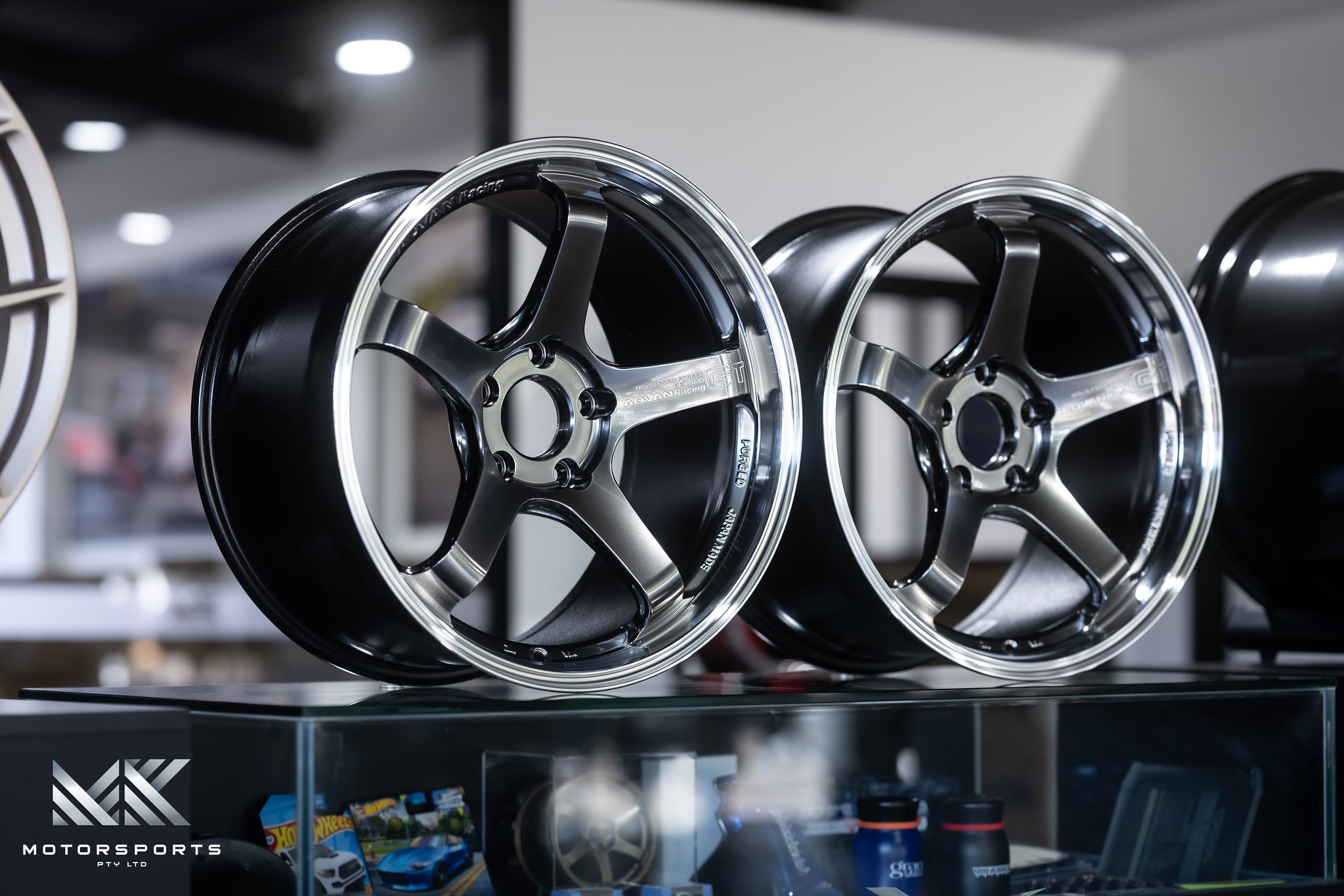

• 18x8 +44 5x120 (Concave C1)
• 18x9 +53 5x120 (Concave C2)

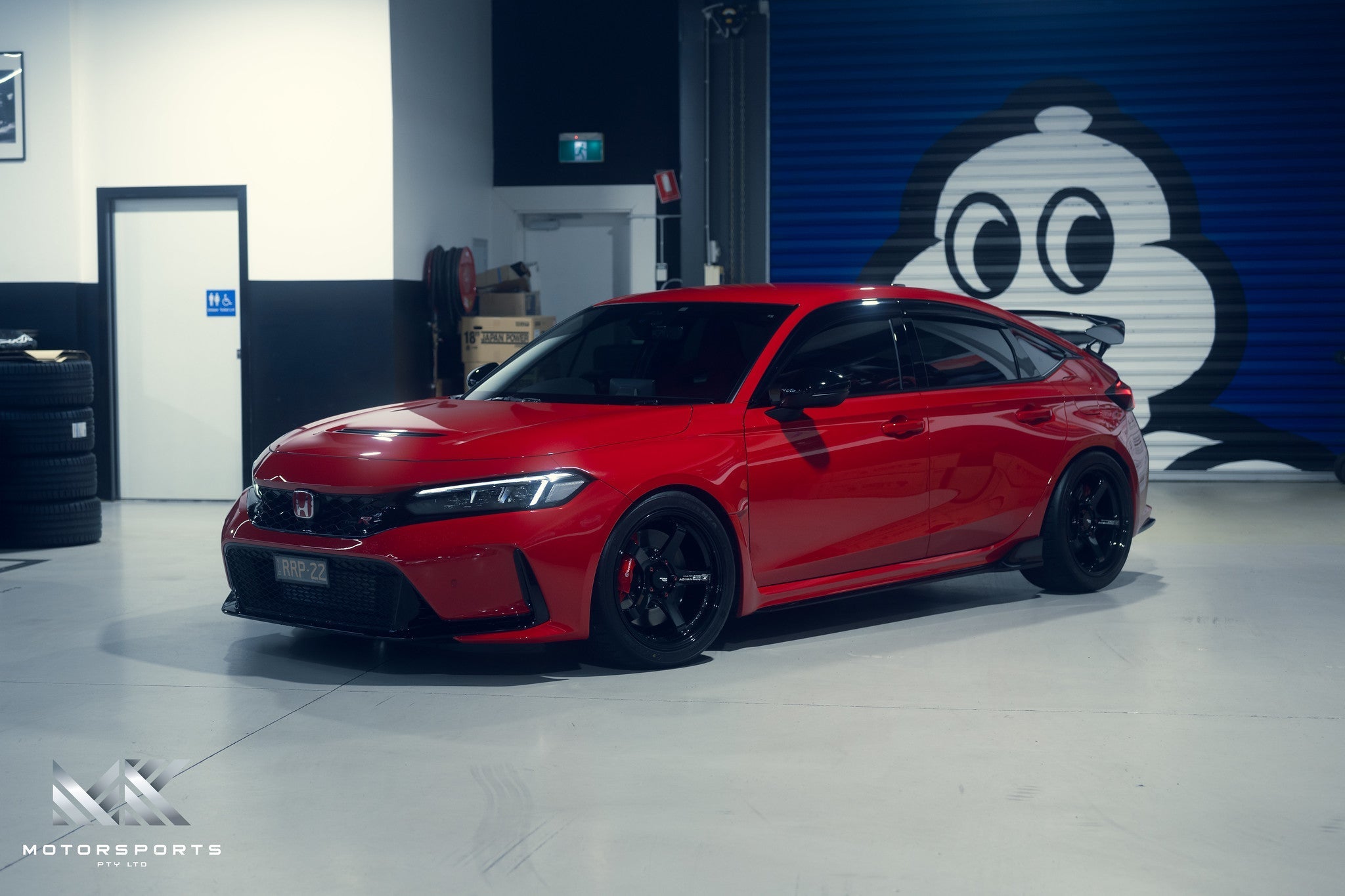

• FK8/FL5 Type R — 18x9.5 +45 5x120 (Concave C3)
• 18x9.5 +22 5x120 (Concave C4)
• FK8/FL5 Type R — 18x10 +40 5x120 (Concave C4, custom size)
• 18x10.5 +34 5x120 (Concave C5)
• 19x8 +45 5x120 (Concave C2)
• 19x8.5 +35 5x120 (Concave C2)
• 19x9 +50 5x120 (Concave C3)
• 19x9 +22 5x120 (Concave C4)
• FK8/FL5 Type R — 19x9.5 +45 5x120 (Concave C3)
• 19x9.5 +22 5x120 (Concave C4)
• 19x10 +32 5x120 (Concave C4)
• 19x10.5 +34 5x120 (Concave C5)
• 20x9.5 +20 5x120 (Concave C4)
• 20x10.5 +34 5x120 (Concave C5)
• 20x11 +35 5x120 (Concave C4)
• F87 M2 — Front 19x9 +22 (Concave C4), Rear 19x10 +32 (Concave C4), 5x120
• F8x M2/M3/M4 — Front 18x9.5 +22 (Concave C4), Rear 18x10.5 +34 (Concave C5), 5x120
• F8x M3/M4 — Front 19x9.5 +22 (Concave C4), Rear 19x10.5 +34 (Concave C5), 5x120
• F8x M3/M4 — Front 20x9.5 +20 (Concave C4), Rear 20x10.5 +34 (Concave C5), 5x120
• F8x M3/M4 — Front 20x9.5 +20 (Concave C4), Rear 20x11 +35 (Concave C4), 5x120

Concave profile (C1–C5) indicates spoke concavity — higher numbers are deeper.

Important Notes

• Price is for a set of four wheels.

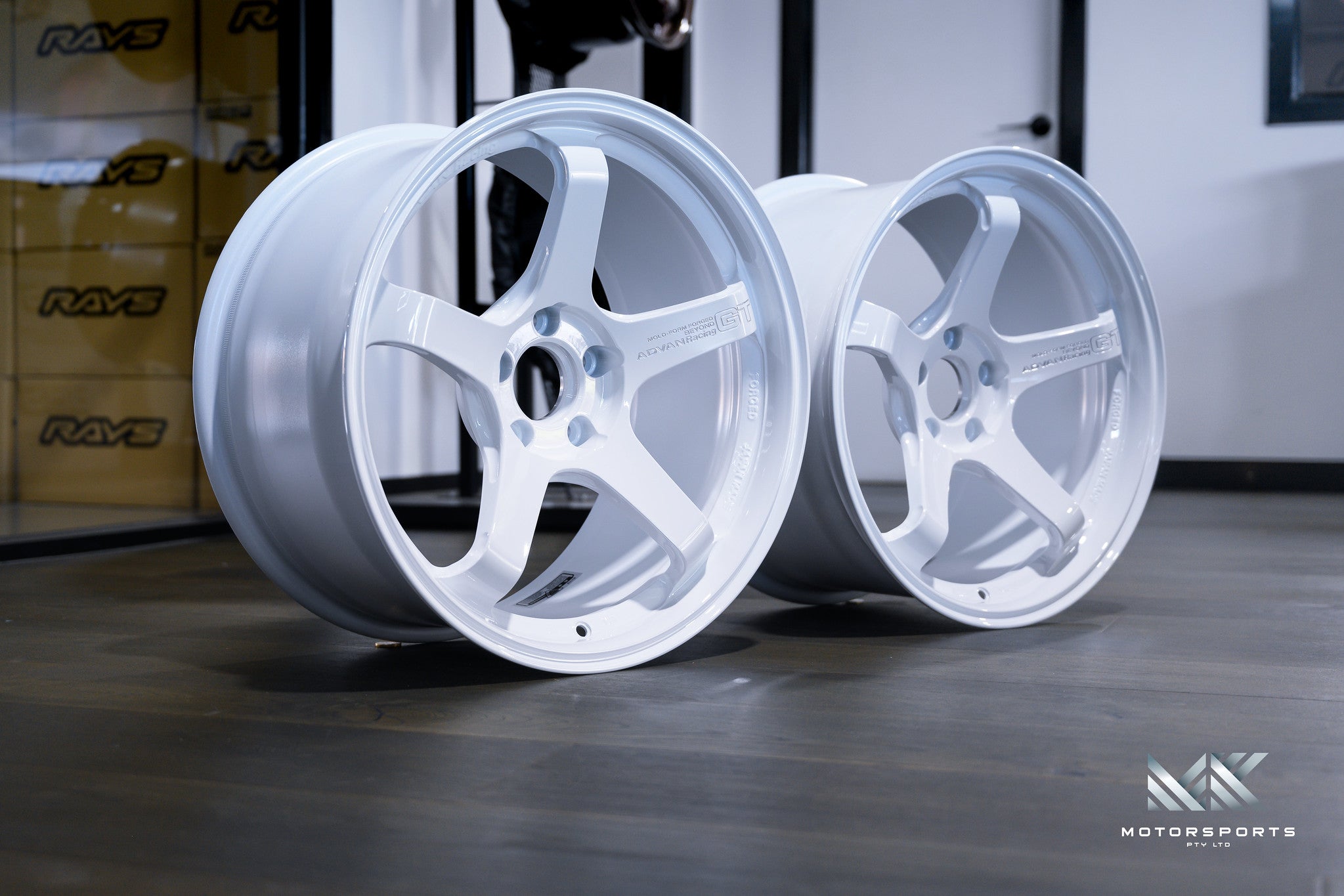

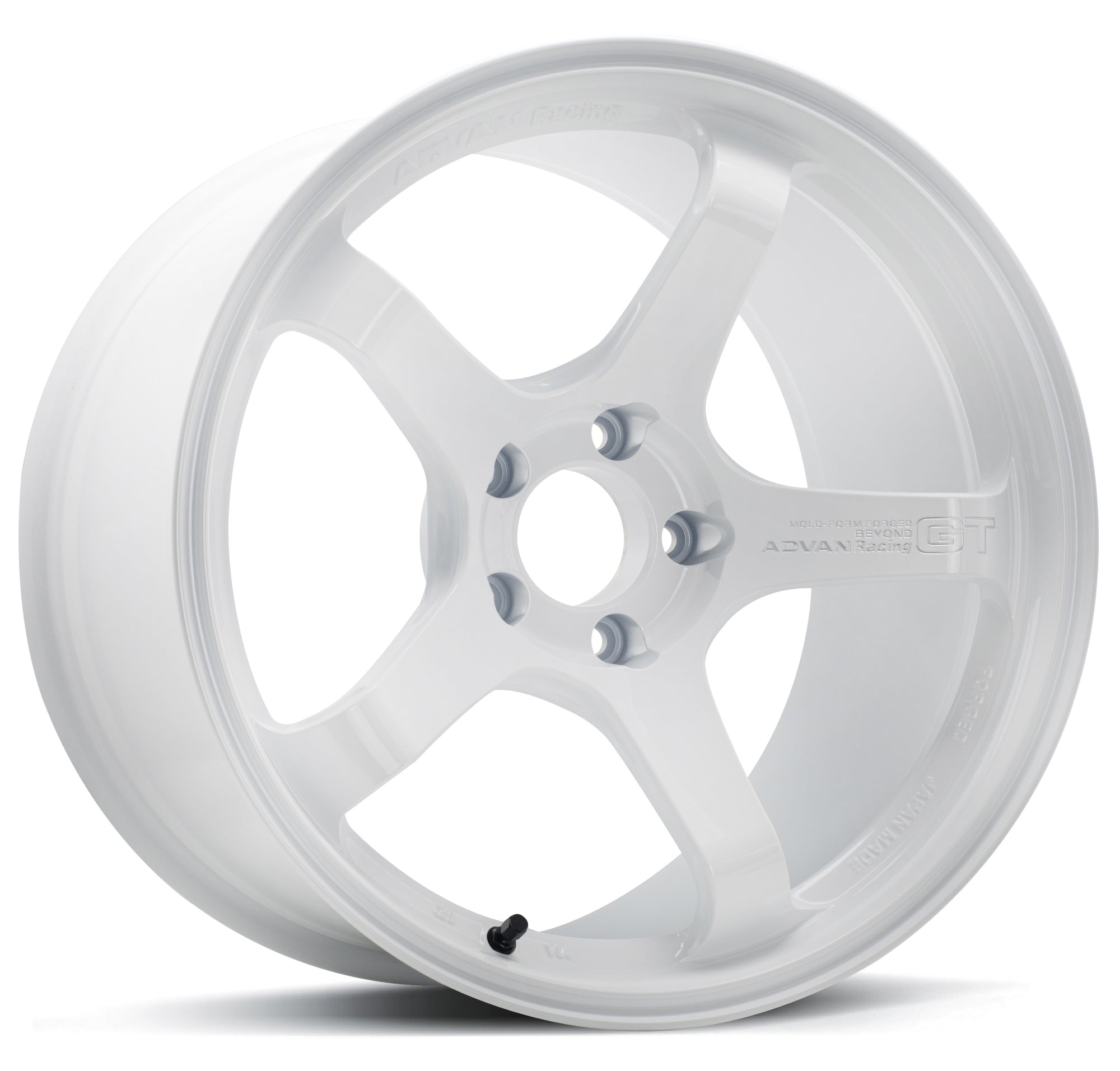

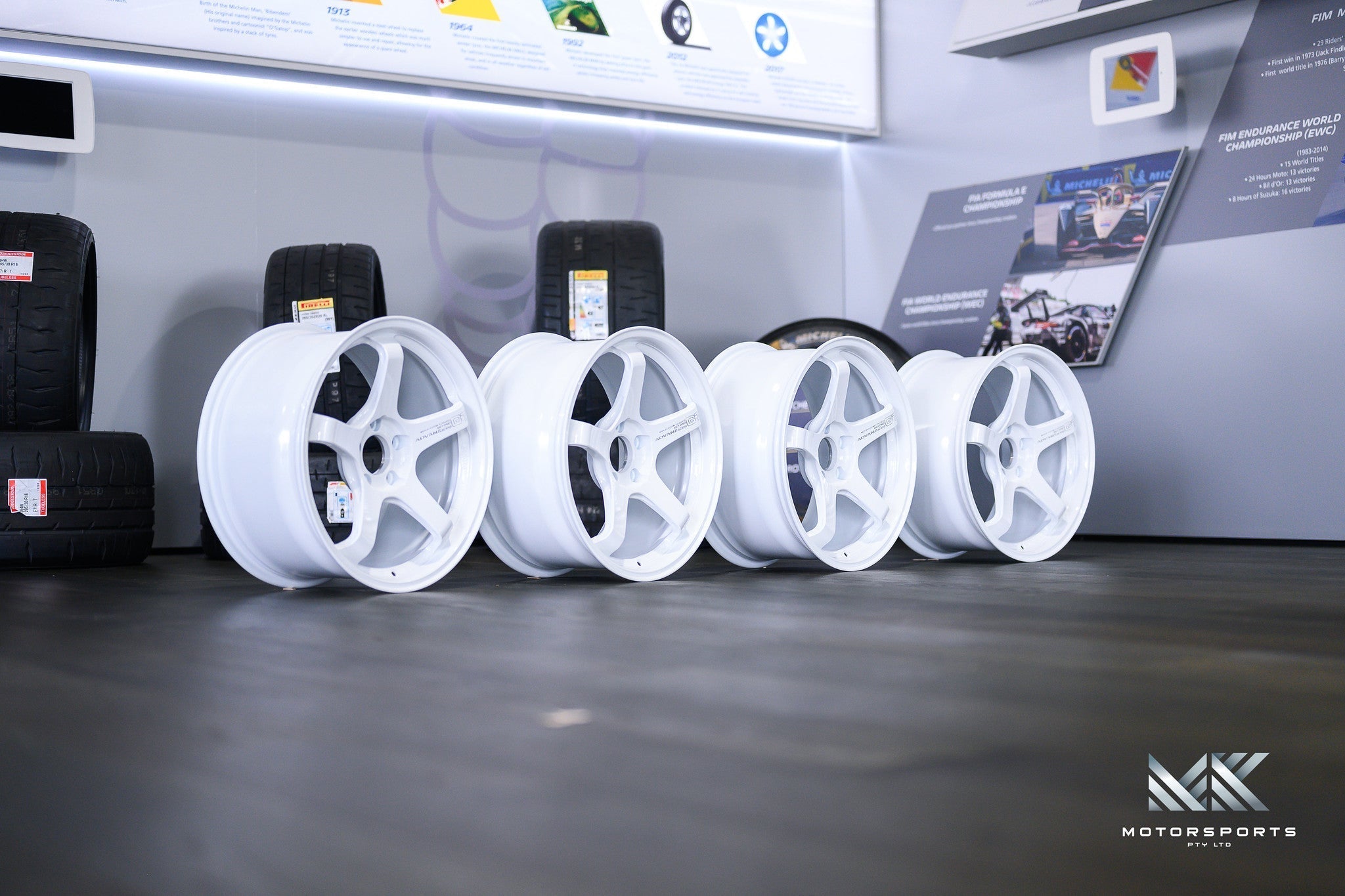

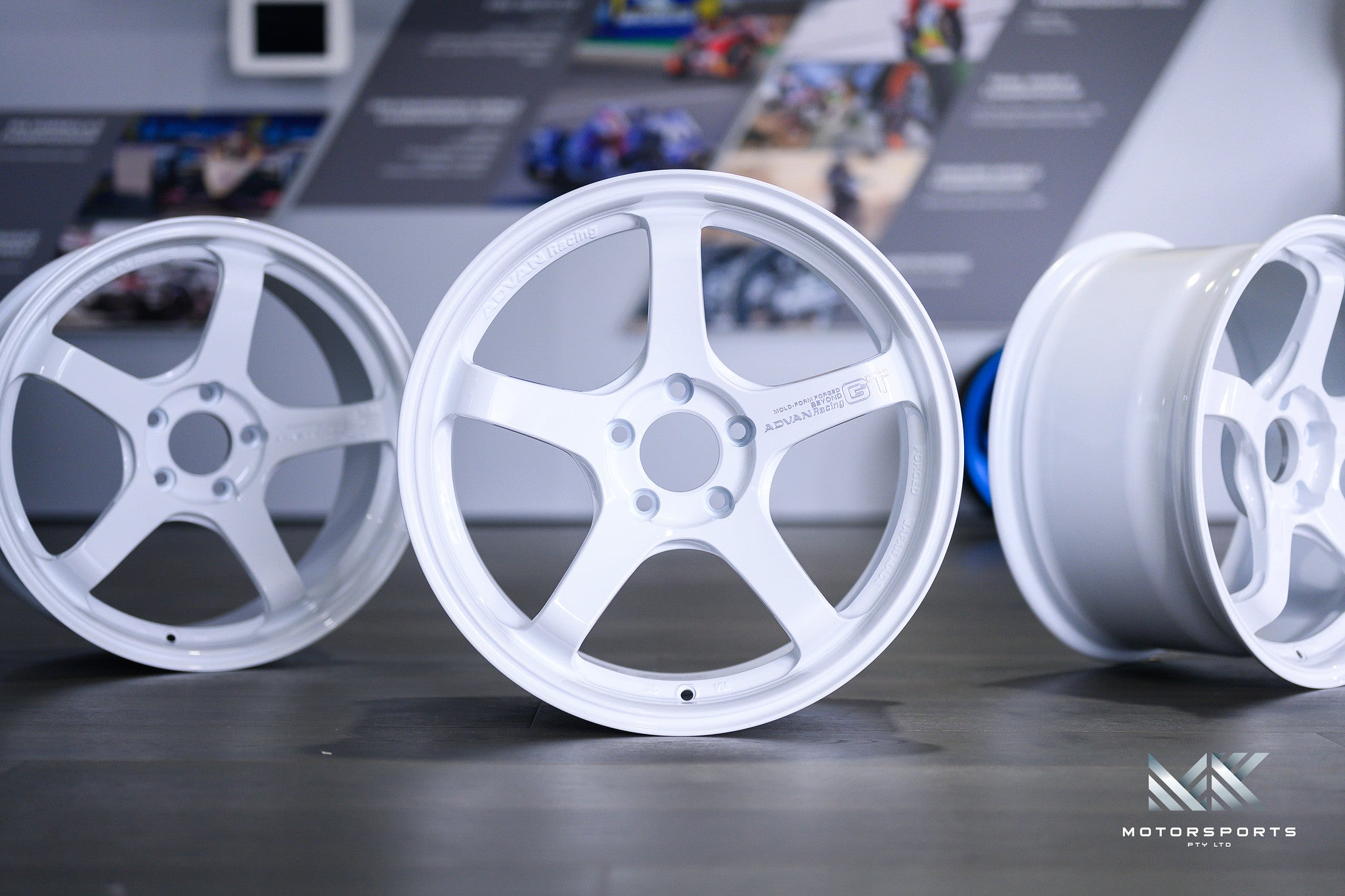

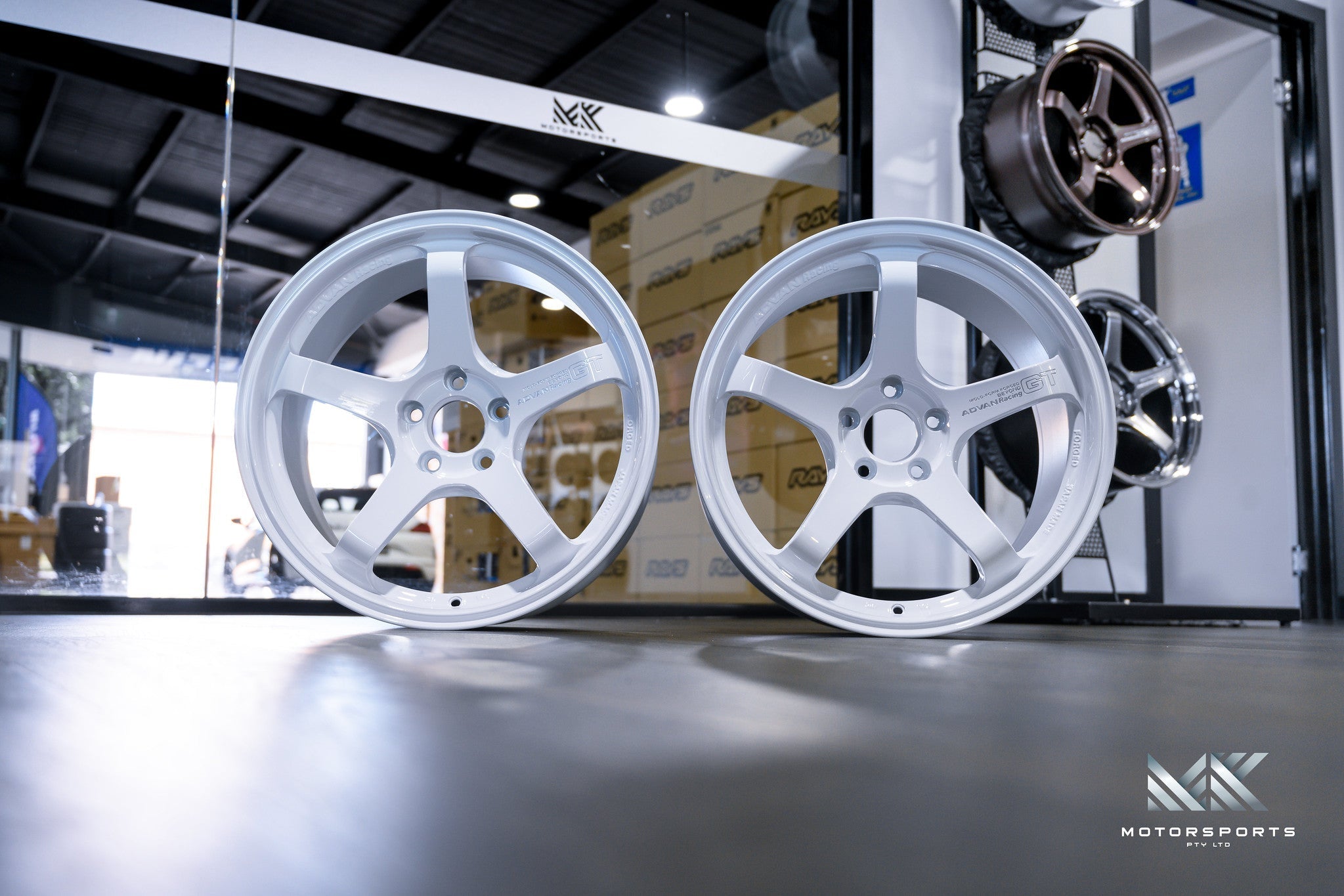

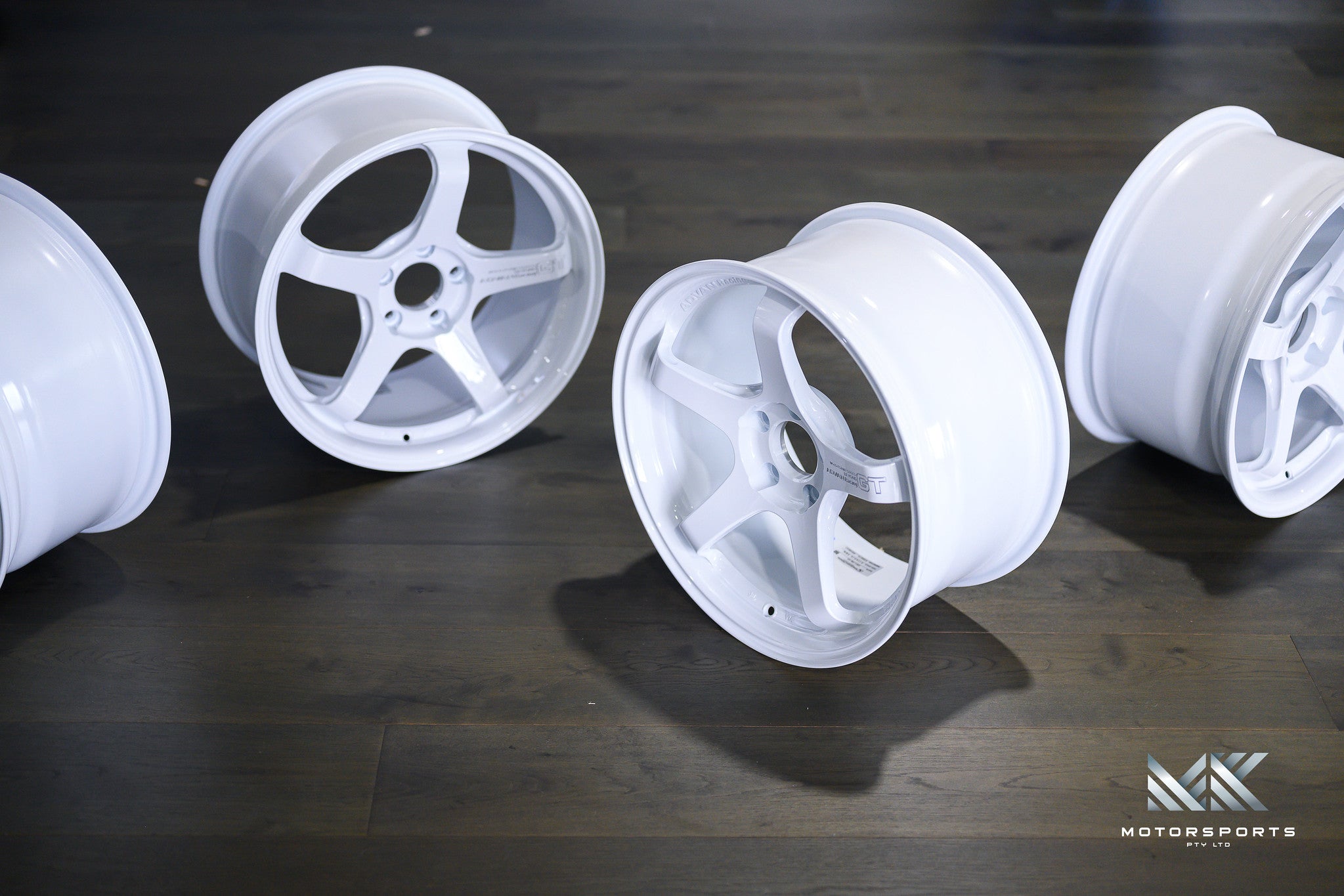

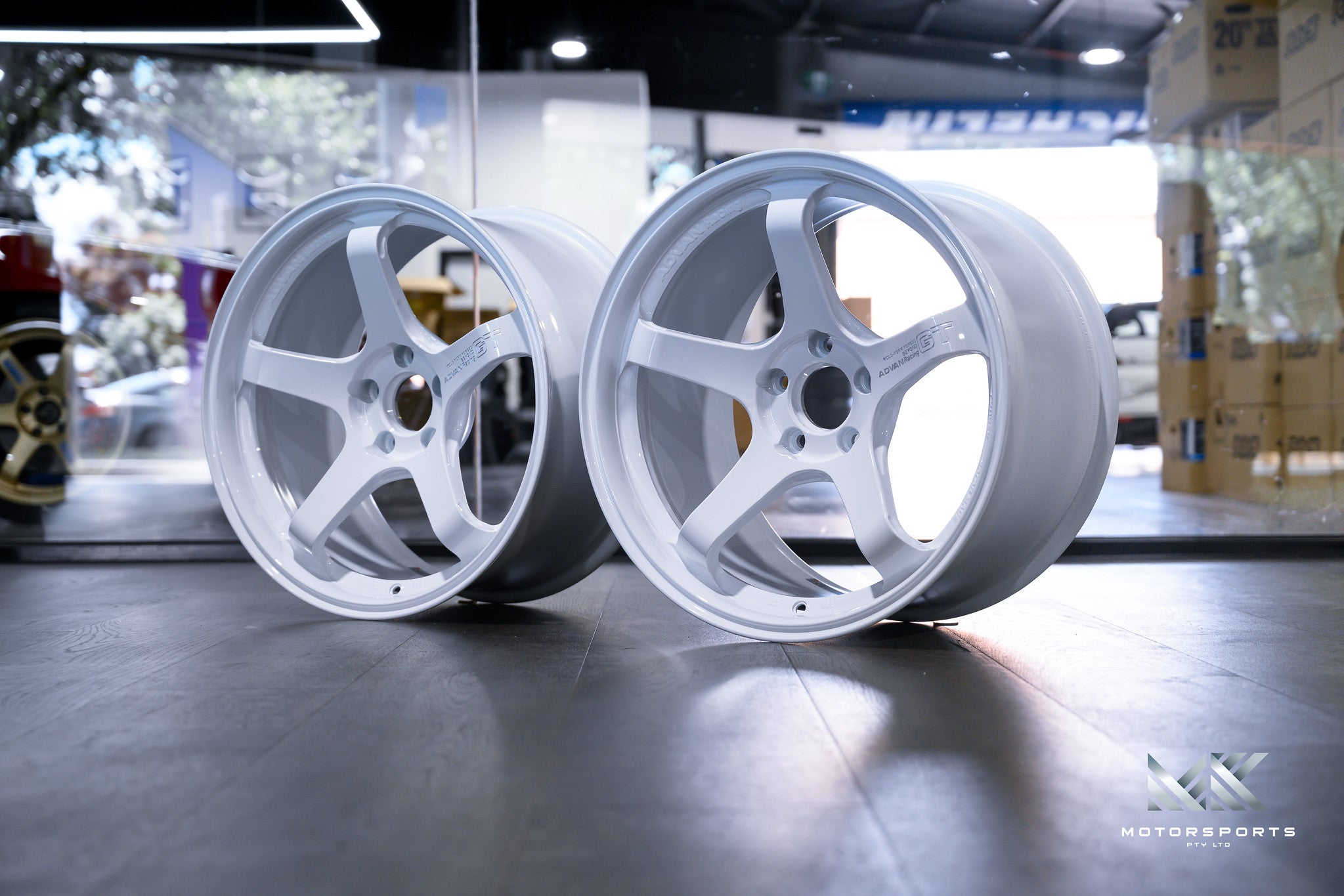

• Racing White (RWW) is available in 18-inch sizes only.
• The FK8/FL5 Type R 18x10 +40 size is a custom size.

Fitment

• Vehicle-specific sizes and staggered sets are listed for the FK8/FL5 Type R, F87 M2, F8x M2/M3/M4 and F8x M3/M4.
• For the individual sizes, fitment depends on your vehicle's PCD, centre bore, brake clearance and offset requirements.

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment and lead time.
