Radium Fuel Rail Kit - Nissan 350Z/370Z/Skyline V35/V36/Infiniti G35/G37 (VQ35/37)

Radium Fuel Rail Kit - Nissan 350Z/370Z/Skyline V35/V36/Infiniti G35/G37 (VQ35/37)

Application: Nissan 350Z, 370Z, Skyline V35/V36 and Infiniti G35/G37 – VQ35DE, VQ35HR and VQ37VHR engines
Part Type: Upgrade fuel rails (pair)
Part Number: 20-0458

The Radium Engineering VQ fuel rails are a high-flow upgrade for Nissan and Infiniti VQ35DE, VQ35HR and VQ37VHR V6 engines. Machined from 6061 aluminium and black anodised, each rail features a large internal bore and is compatible with all common fuel types including E85.

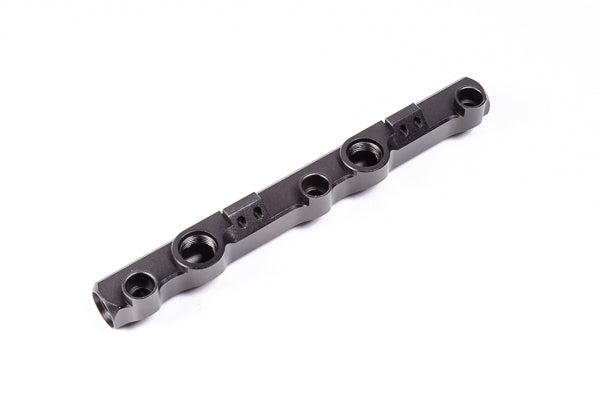

Each rail has four 8AN ORB ports (two on the ends and two on the bottom) and 14mm injector bores. The extra ports accept accessories such as a pressure transducer or fuel pulse dampers, and the rails can be plumbed in parallel, in series or as a return-style system. The rails mount with stainless steel brackets and hardware, and the OEM injector clips can be reused on the VQ35DE and VQ35HR.

Key Features

• Billet Construction: Machined 6061 aluminium, black anodised
• Large Internal Bore: Supports high-power fuel requirements
• 8AN ORB Ports: Four per rail – two end ports and two bottom ports
• 14mm Injector Bores: Suits OEM injectors and aftermarket injectors with OEM VQ fitment
• Flexible Plumbing: Run in parallel, in series or as a return-style system
• Stainless Mounting: Stainless steel brackets and hardware; OEM injector clips reused on VQ35DE/VQ35HR
• Fuel Compatibility: Suits all common fuels including E85

What's Included

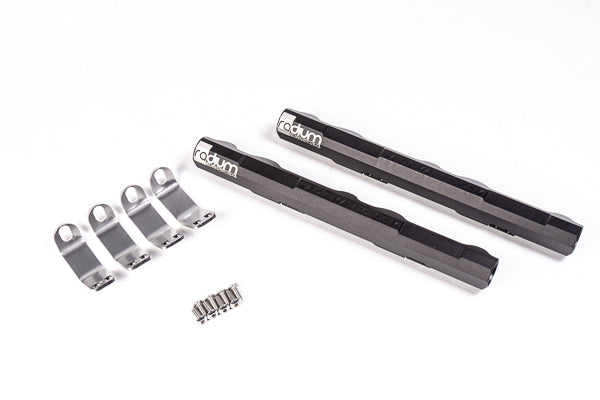

• 2x Fuel rails
• 4x Stainless steel mount feet
• Stainless steel mounting hardware

Optional Parts

• Radium Fuel Rail Plumbing Kit - Nissan 350Z 03-07/Skyline V35 (VQ35DE) (20-0468) – plumbing kit for VQ35DE engines (includes the 20-0460 FPD adapter)
• Radium Fuel Rail Plumbing Kit - Nissan 350Z 07-09/370Z/Skyline V36/Infiniti G35/G36 V36 (VQ35HR/VQ37VHR) (20-0469) – plumbing kit for VQ35HR and VQ37VHR engines (includes 20-0459 FPD adapters)
• Radium 14-0150 8AN ORB Plug, Round Internal Hex (14-0150) – two required in the centre ports of one rail on VQ35DE engines
• Radium FPD Adapter 8AN ORB / 27mm Bore - Nissan 350Z 07-09/370Z/Skyline V36/Infiniti G35/G36 V36 (VQ35HR/VQ37VHR) (20-0459) – reuses the OEM fuel pulse dampers (already included in the 20-0469 plumbing kit)
• Radium FPD Adapter 8AN ORB/11mm Bore/42mm Spacing/M6 - Nissan 350Z 03-07/Skyline V35 (VQ35DE) (20-0460) – reuses the OEM fuel pulse damper (already included in the 20-0468 plumbing kit)

Important Notes

• This listing is for the fuel rails only – plumbing kits, fittings, regulators and pulse dampers are sold separately
• This is an upgrade rail – OEM or OEM-equivalent injectors must be used. Radium does not make injector recommendations
• VQ35DE only: two Radium 14-0150 8AN ORB plugs must be fitted to the centre ports of one rail due to the OEM intake manifold bosses
• The VQ37VHR is not compatible with any Radium aftermarket fuel pulse damper – only the OEM dampers can be used
• VQ rail fitment has very tight clearances, so pulse dampers can only be fitted in certain positions – refer to Radium's fitment chart and dimensional drawings
• Top feed conversion rails for side-feed or air-assist applications are a separate product
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan / Infiniti VQ35DE engines
• Nissan / Infiniti VQ35HR engines
• Nissan / Infiniti VQ37VHR engines

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
