Torque Solution HD Turbo Inlet Pipe: Subaru WRX 02-07, STI 04-21 – Carbon Fiber – OEM / 2.4" Turbo Inlet

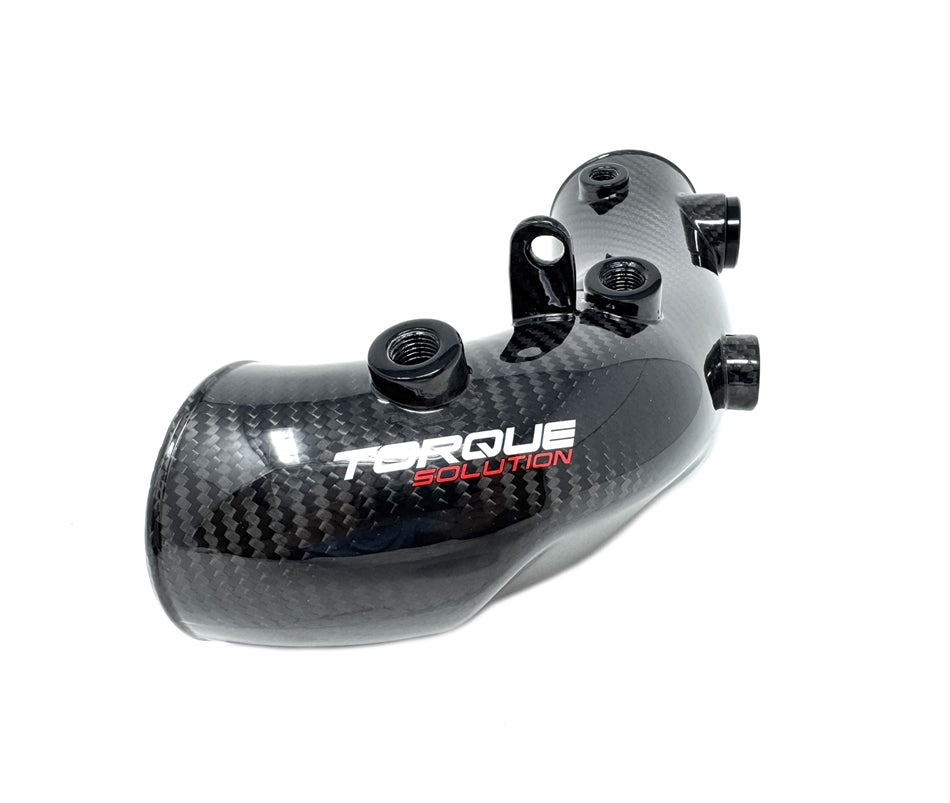

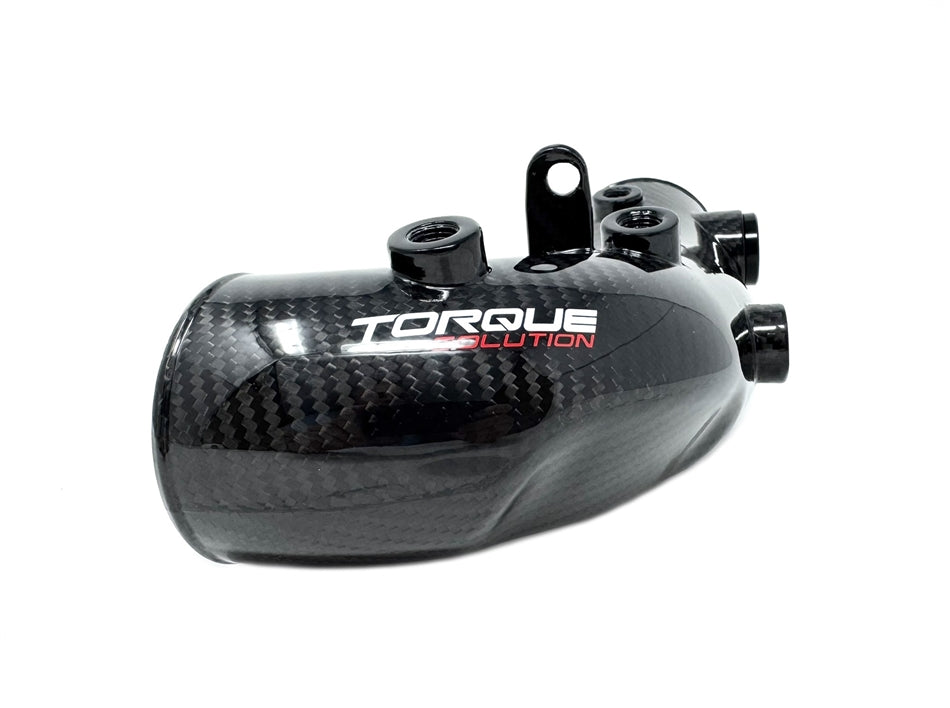

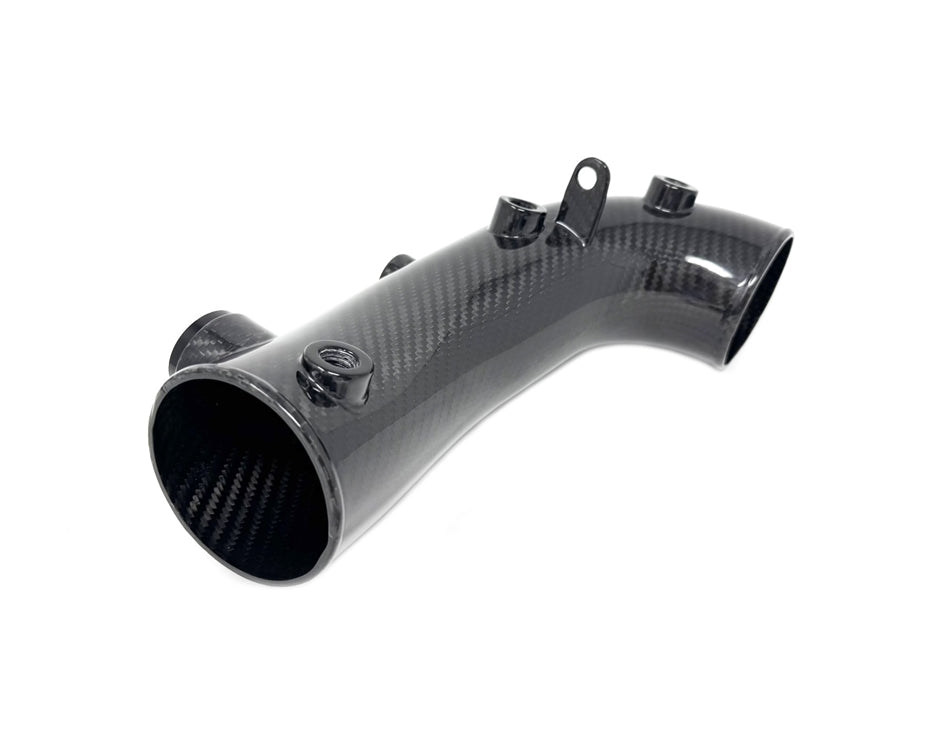

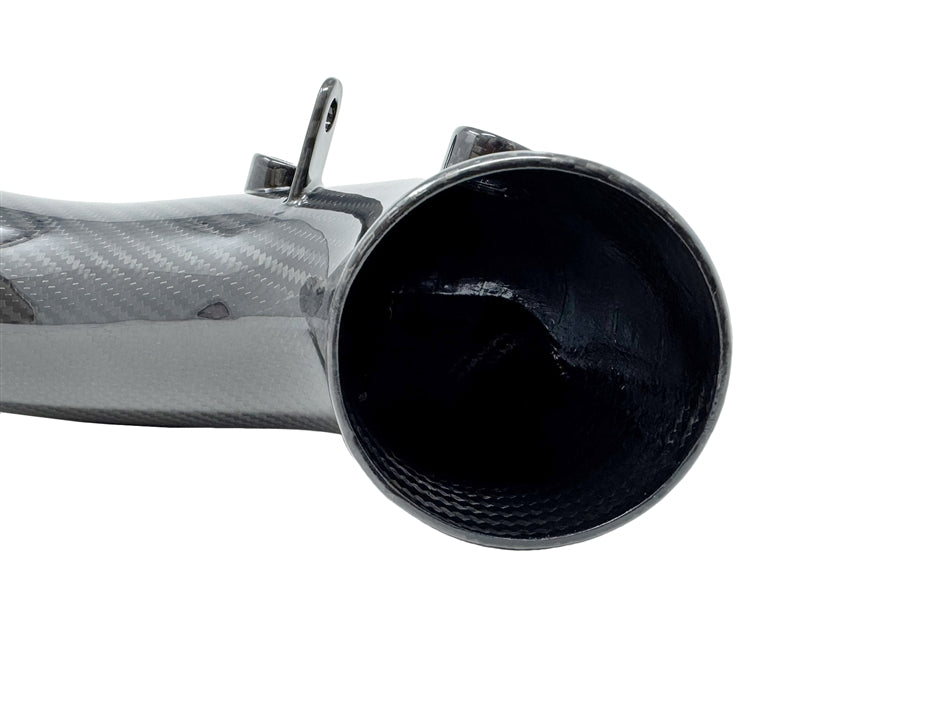

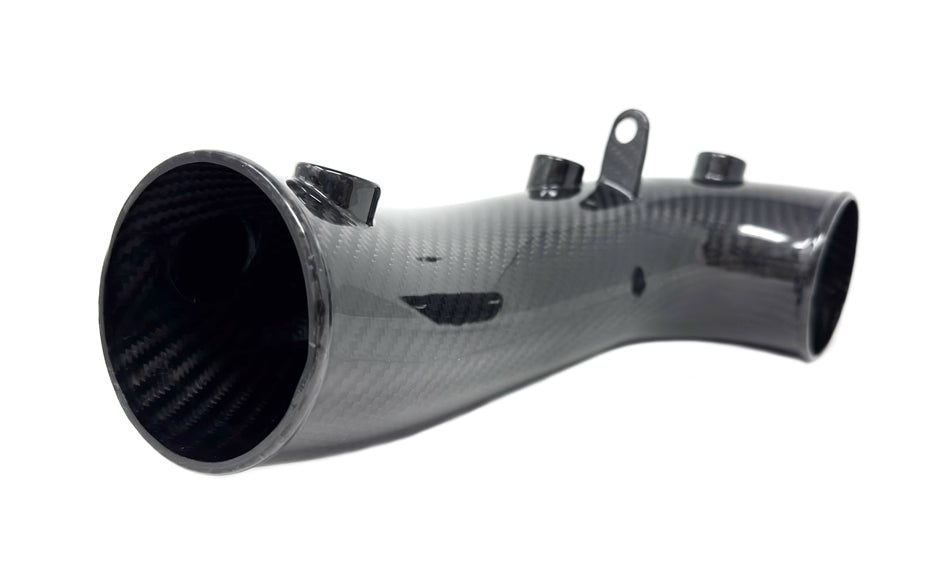

Torque Solution HD Carbon Fiber Turbo Inlet Pipe

Applications: Subaru WRX 2002–2007, STI 2004–2021
Part Number: TS-SU-881CF-O

The Torque Solution Carbon Fiber HD Hard Turbo Inlet Pipe is designed for Subaru EJ engines that utilise a STI or similar intake manifold. The HD inlet is significantly larger in size and smooths the airflow entering the turbo compared to the restrictive OEM corrugated inlet hose. All necessary hardware is included to complete the install, whether configuring the car in standard recirculated configuration or a full speed density build. Simply choose the configuration based on your turbo inlet size — available in 2.4" (OEM), 3" (PTE, Blouch, Garrett) or 84mm/3.3" (FP).

• Carbon Fiber w/ Torque Solution Logo
• Smooths and Increases Airflow Entering Turbo
• Eliminates Failure-Prone Corrugated Rubber Hose
• 4-Ply Silicone Couplers
• Includes Silicone Friendly Stainless Steel Hose Clamps
• Direct Fitment
• Includes All Necessary Hardware To Install

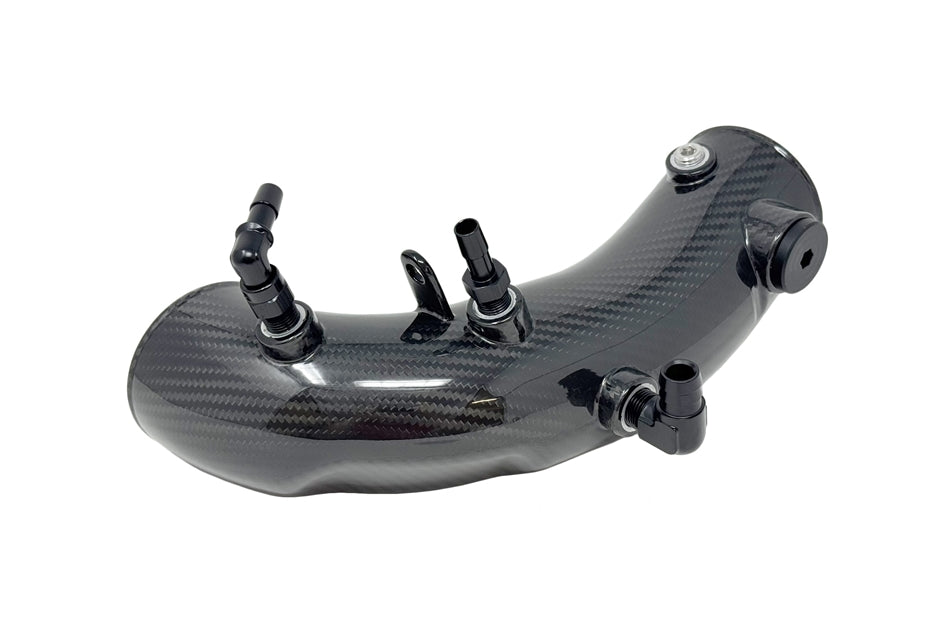

• Able to be Installed Recirculated or as Speed Density
• Limited Lifetime Warranty

Includes

• Carbon Fiber HD Turbo Inlet (1)
• Silicone Turbo Coupler of your choosing – OEM, 3" or 84mm (1)

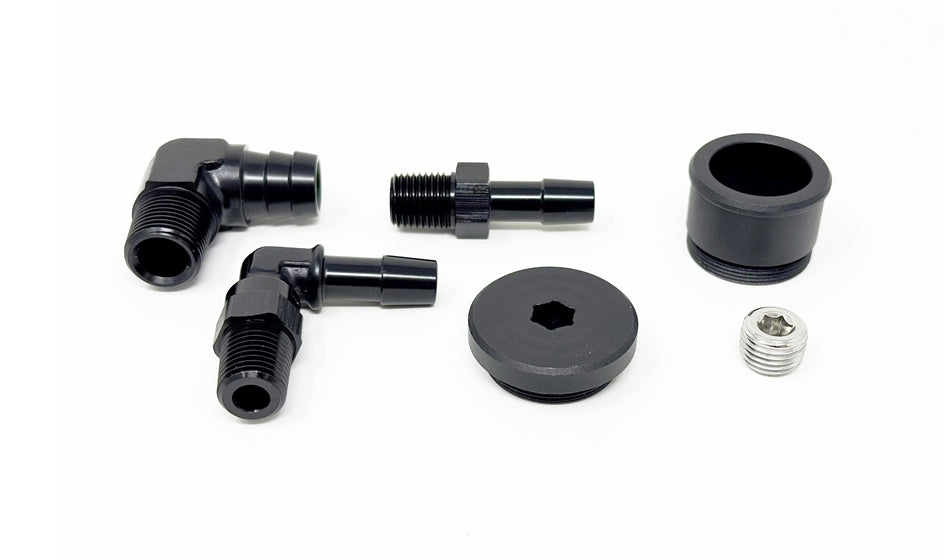

• 1/4" Stainless NPT Plug (1)
• Billet Aluminium 1/4" NPT to 3/8" Straight Barb Fitting (1)
• Billet Aluminium 1/4" NPT to 3/8" 90 Degree Barb Fitting (1)
• Billet Aluminium 3/8" NPT to 5/8" 90 Degree Barb Fitting (1)

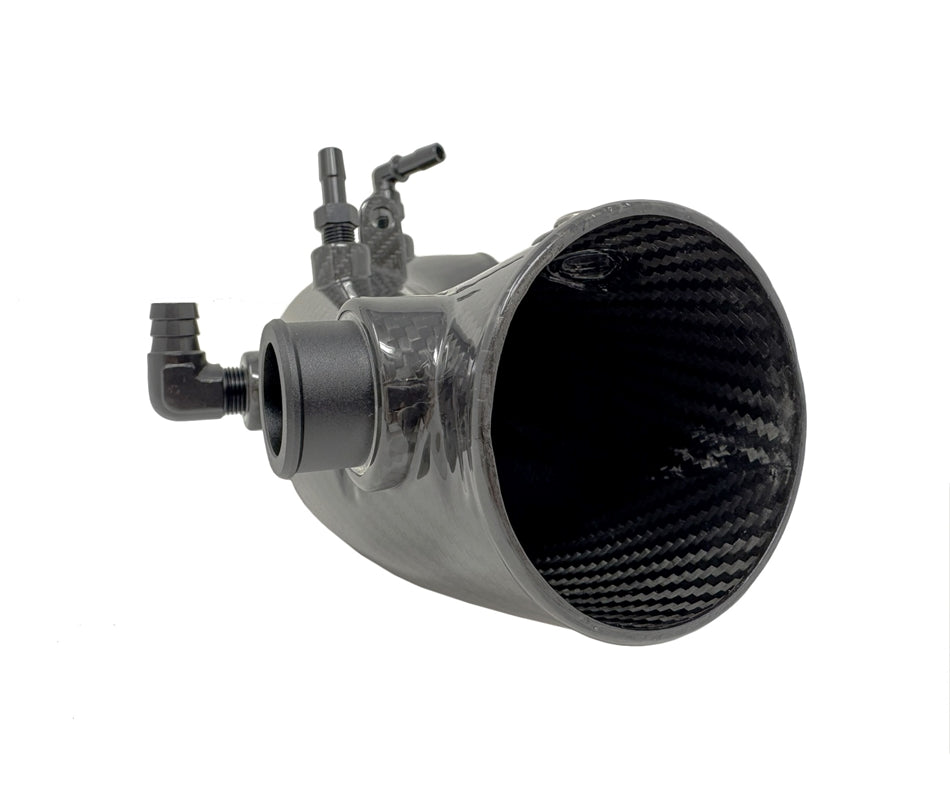

• Billet Aluminium Inlet Recirculation Adapter (1)

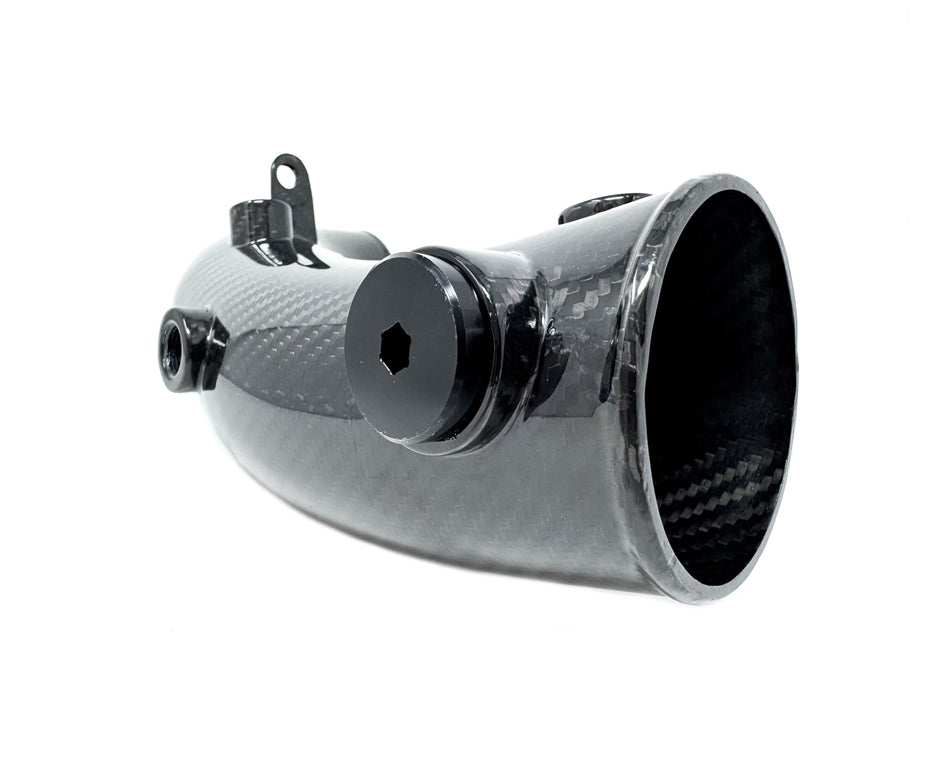

• Billet Aluminium Inlet Speed Density Cap (1)
• 80–100mm Wide Width Silicone Safe Worm Gear Clamp (1)
• 70–90mm Wide Width Silicone Safe Worm Gear Clamp (1)
• 70–90mm Standard Width Silicone Safe Worm Gear Clamp (2)
• 25–40mm Standard Width Silicone Safe Worm Gear Clamp (1)

Install Notes

1. Coupler will need trimming on both ends to fit. We recommend trimming in approx. 1/8" increments using a worm gear clamp as a guide and a fresh sharp blade. Please be careful and use caution when performing this task.
2. We highly recommend using masking tape on the inlet to prevent scratching until you have the coupler perfectly trimmed.
3. Install all fittings with PTFE tape.
