Radium SAE Female EFI Quick Connect to Barb Fittings

Radium SAE Female EFI Quick Connect to Barb Fittings

SAE female EFI quick connect to barb adapter fittings engineered by Radium Engineering for converting OEM SAE quick connect fuel line connections to barb fittings. These push-on fittings secure to most modern USA, European, and Japanese fuel injection systems, providing reliable fuel line connections for aftermarket fuel system installations.

Available Configurations

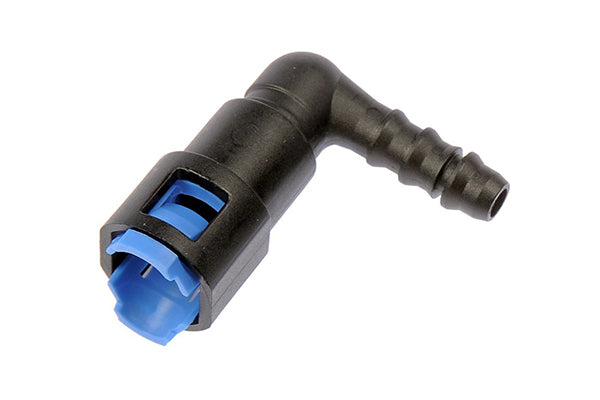

• 14-0227: 3/8" SAE Female to 5/16" Barb 90 Degree (8mm)
• 14-0253: 3/8" SAE Female to 5/16" Barb Straight (8mm)

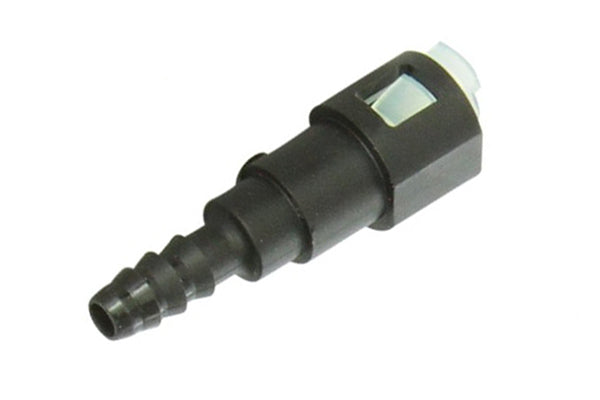

• 14-0453: 5/16" SAE Female to 3/8" Barb Straight (9.5mm)
• 14-0542: 3/8" SAE Female to 3/8" Barb Straight (9.5mm)

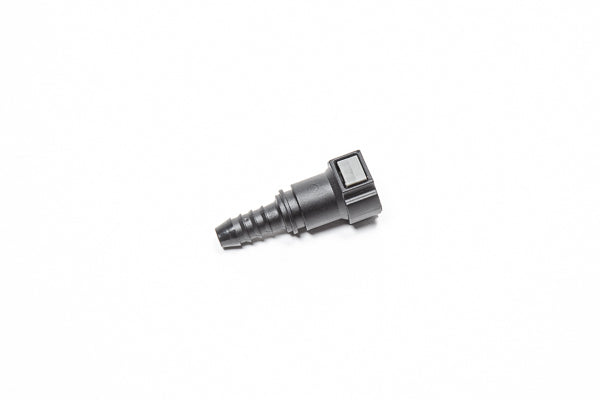

• 14-0553: 10mm SAE Female to 3/8" Barb Straight (9.5mm)

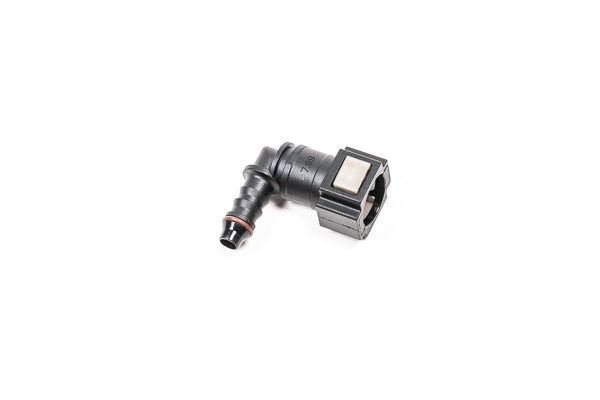

• 14-0585: 5/16" SAE Female to 5/16" Barb 90 Degree (8mm)

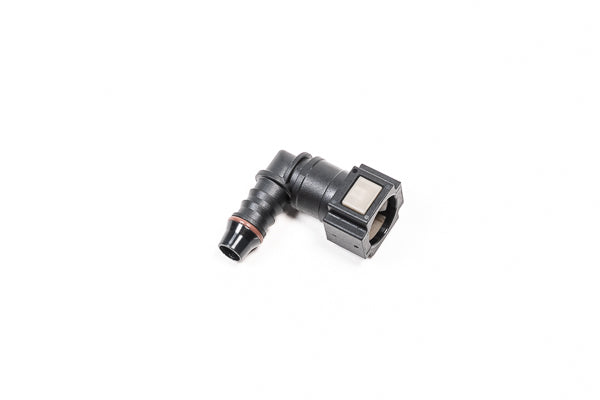

• 14-0586: 5/16" SAE Female to 3/8" Barb 90 Degree (9.5mm)

Key Features

• ✓ SAE female quick connect to barb adapter
• ✓ Push-on installation with secure connection
• ✓ Multiple size options: 5/16", 3/8", 10mm
• ✓ Straight and 90-degree configurations available
• ✓ Compatible with USA, European, and Japanese fuel systems
• ✓ Professional-grade construction
• ✓ E85 and all fuel types compatible
• ✓ Universal fitment for OEM quick connect systems

Technical Specifications

• Application: Universal - SAE female quick connect to barb
• Part Numbers: 14-0227, 14-0253, 14-0453, 14-0542, 14-0553, 14-0585, 14-0586
• Available Sizes: 5/16", 3/8", 10mm
• Connection Type: SAE female quick connect to barb
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for converting OEM SAE quick connect fuel line connections to barb fittings in aftermarket fuel system installations. Perfect for applications requiring reliable fuel line connections when replacing factory fuel lines with braided hose or rubber fuel line.

Benefits

• Push-on installation simplifies connection
• Secure connection ensures leak-free operation
• Multiple sizes accommodate various OEM applications
• Straight and 90-degree options for tight clearances
• Compatible with most modern fuel injection systems
• Professional-grade construction
• Compatible with all fuel types including E85

Important Notes: To determine required size, measure the outside diameter of the male fitting: 0.3125" = 5/16", 0.375" = 3/8", 0.50" = 1/2". Select appropriate variant based on your application requirements (size and angle). Always lubricate the mating O-rings with a light amount of oil prior to installing.
