Radium Fuel Pump Hanger - Mitsubishi Evo 7-9

Radium Fuel Pump Hanger - Mitsubishi Evo 7 / 8 / 9 (CT9A)

Suits:

• Mitsubishi Lancer Evolution VII (Evo 7) — CT9A
• Mitsubishi Lancer Evolution VIII (Evo 8) — CT9A
• Mitsubishi Lancer Evolution IX (Evo 9) — CT9A

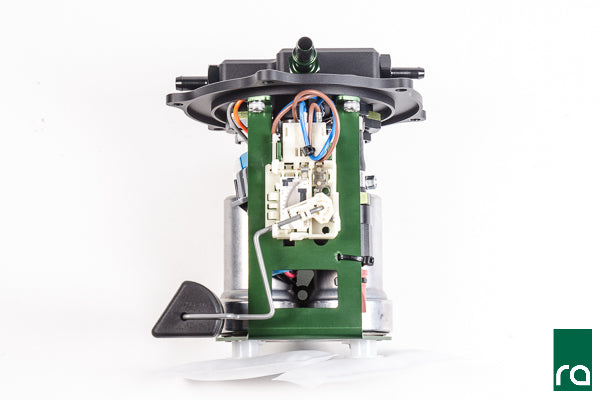

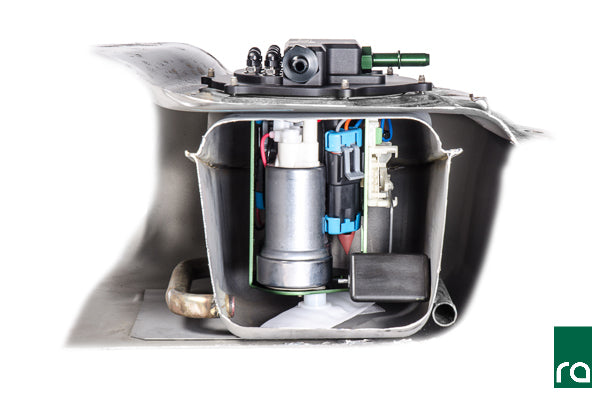

The Radium Engineering Fuel Pump Hanger is a drop-in replacement for the OEM hold-down flange in the stock Mitsubishi Evo 7-9 fuel tank, supporting 1 or 2 aftermarket fuel pumps. A single 8AN male pump feed port and 6AN male return port simplify aftermarket AN hose plumbing. Adapter fittings are also included to reuse OEM fuel lines if required.

One major issue with the OEM Evo 8-9 hanger is the restrictive return port and venturi jet pump. When using high-flow aftermarket pumps, the OEM jet pump creates unwanted backpressure in the regulator return line, causing excessive fuel rail pressure. The Radium hanger includes a redesigned venturi jet pump with an integrated pressure-relief valve to minimise backpressure. All returning fuel from the pressure regulator and crossover hose exits the jet pump, keeping the OEM tank baffle full for starvation protection.

Pump Compatibility

• 20-0345-10: AEM 50-1220

Notes on pump configuration:

• Enough components are included for 1 or 2 pumps — unused parts simply won’t be used
• A pliable fuel pump filter sock must be used for proper fitment
• 65 micron sock filters are installed on all pumps. This kit eliminates the OEM post-pump filter — a low-micron aftermarket fuel filter should be installed downstream to protect injectors
• Single pump applications can reuse OEM fuel pump controller wiring, but upgrading to larger gauge wire is recommended for high-flow pumps

Electrical

Custom stainless electrical studs handle the high current demand that compact bulkhead connectors lack. Connections are properly sealed and impervious to all standard and exotic fuels. Low-profile design keeps all wiring tucked under the OEM cover plate. Non-conductive acorn nuts prevent accidental short circuits. In-tank wiring is insulated with chemically resistant PTFE.

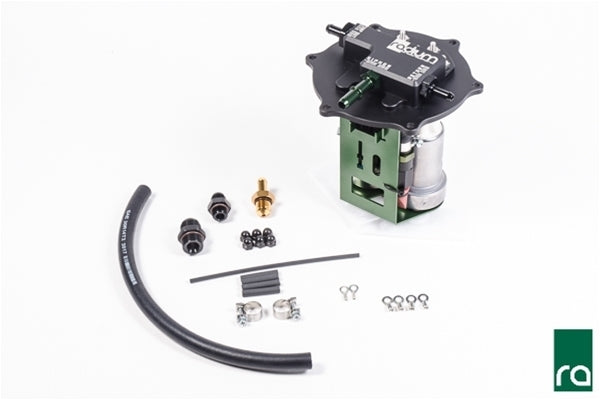

Kit Includes

• Anodised aluminium mounting plate

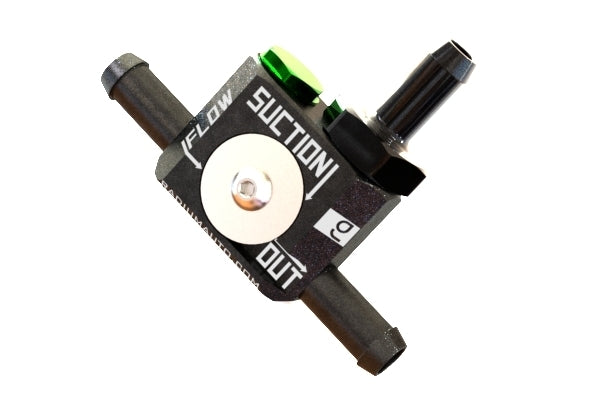

• Anodised aluminium venturi jet pump with multiple orifices and integrated pressure-relief valve
• Anodised aluminium 8AN male pump outlet fitting
• Anodised aluminium 6AN male FPR inlet fitting
• Anodised aluminium dual pump and fuel sender bracket
• Anodised aluminium pump outlet fittings
• Electrical hardware for fuel pumps and OEM sender
• Fluorosilicone duckbill return valve
• Submersible rubber fuel hose
• Stainless steel hardware and clamps

Optional Add-On (Sold Separately)

• 20-0376-0X — Fuel Hanger Plumbing Kit, Evo 8-9: includes everything required to connect to an aftermarket 8AN male fuel rail and 6AN male FPR for single or dual pump configurations, including a pre-made PTFE 8AN feed line to the engine bay

Part Number:

• 20-0345-10 — Radium Fuel Pump Hanger, Evo 7-9 (AEM 50-1220)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Drop-in fitment — no cutting, drilling, or permanent modifications required
• ✅ Compatible with E85, pump petrol, and flex fuel sensor integration
