Radium Fuel Pressure Gauge 0-100psi w/8AN ORB Adaptor

Radium Fuel Pressure Gauge 0-100psi w/8AN ORB Adaptor

Application: Universal – 8AN ORB ports
Part Type: Fuel pressure gauge, 0–100psi, with 8AN ORB adapter
Part Number: 20-0075

This high-accuracy Radium fuel pressure gauge is suitable for all fuelling applications. It reads 0–100psi (0–6.9 bar) with ±2% accuracy through an acrylic lens, and the silicone-filled dial steadies the needle so readings are easier to take.

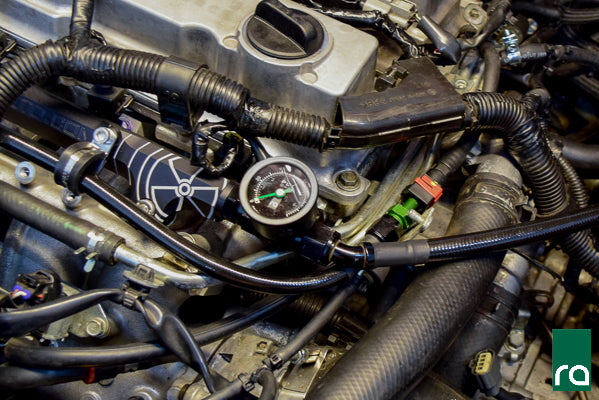

The rugged stainless steel case has a nickel-plated male 1/8" NPT fitting with a black bezel and housing. The 20-0075 kit adds an 8AN ORB to 1/8" NPT adapter so the gauge can be installed directly into an 8AN ORB port, such as on Radium fuel rails and regulators.

Key Features

• 0–100psi Range: 0–6.9 bar with ±2% accuracy
• Silicone-Filled Dial: Damps needle vibration for easier reading
• Acrylic Lens: Clear, easy-to-read face
• Stainless Steel Case: Rugged construction with black bezel and housing
• 1/8" NPT Fitting: Nickel-plated male thread
• 8AN ORB Adapter: 8AN ORB to 1/8" NPT adapter included

What's Included

• 1x Radium 0–100psi fuel pressure gauge
• 1x 8AN ORB to 1/8" NPT adapter

Important Notes

• An internal bubble in the silicone fluid is normal
• Over-pressurising can permanently misalign the needle calibration – do not exceed the gauge range
• Always use PTFE-based thread sealant paste on NPT threads
• Install by gently hand-tightening, then turn 1.5–3 turns past hand-tight with a spanner
• Do not thread the gauge in by gripping and turning the gauge body past light hand-tightness – this will damage the gauge

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
