Radium AN ORB Fuel Surge Tank Bulkhead Fittings

Radium AN ORB Fuel Surge Tank Bulkhead Fittings

SKU:  20-0170

$39.00
$39.00
In Stock
Taxes included.
Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7
View full details

More info

Bright-dipped green anodized aluminum bulkhead fittings.

NOTES:

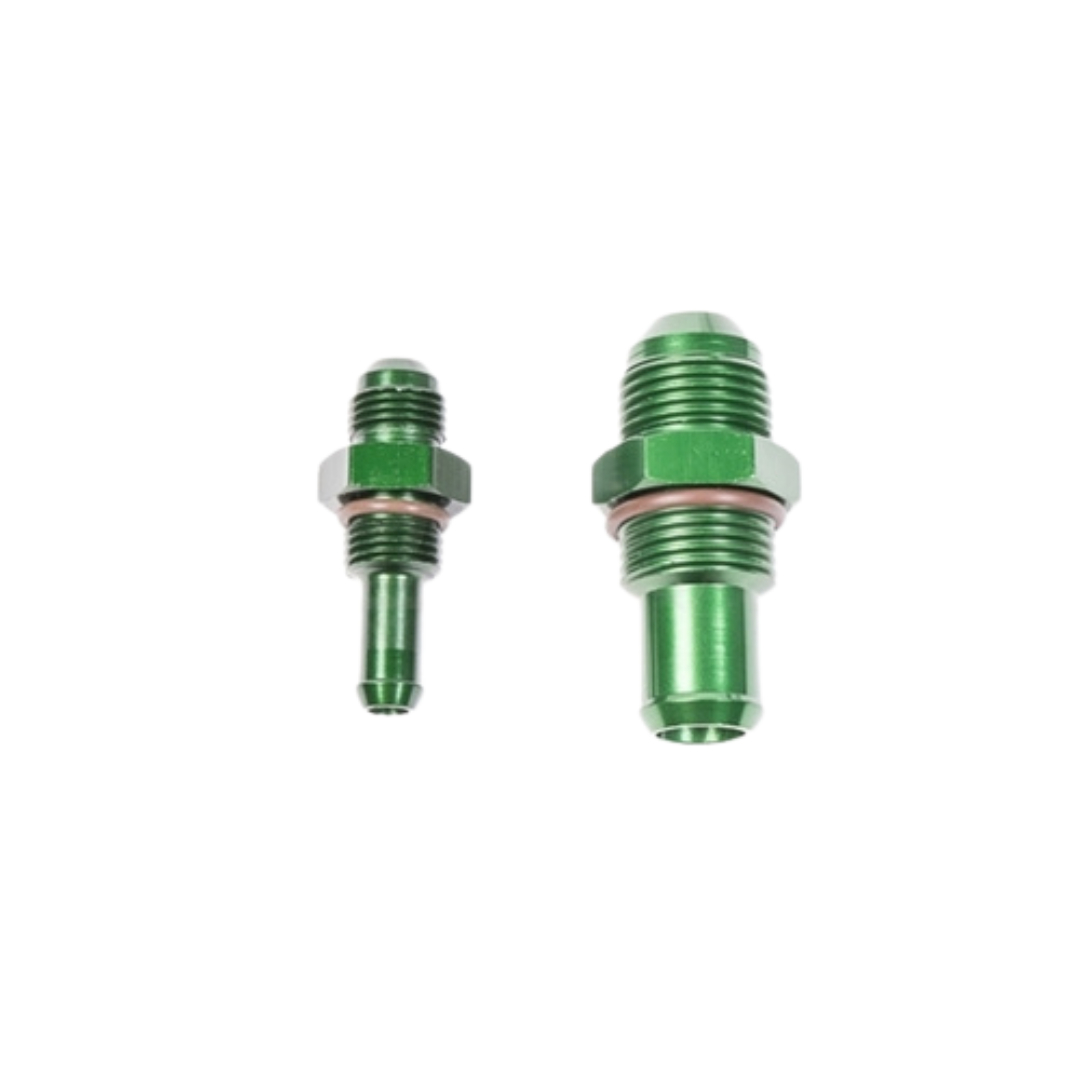

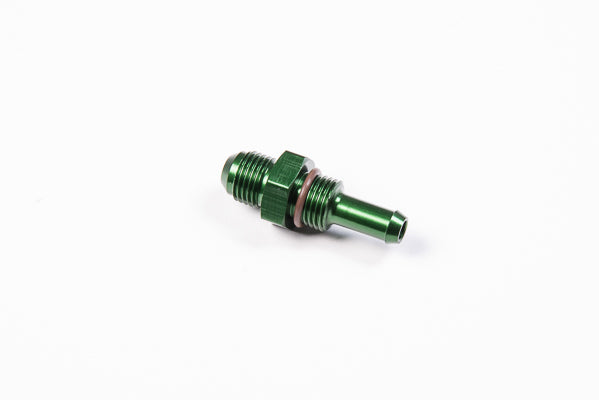

  • The 20-0170 5/16" Barb to 6AN Bulkhead Fitting was introduced in Radium Fuel Surge Tanks after 2014. It includes a preassembled Viton O-ring and requires a 9/16-18 threaded hole with chamfer to be drilled into the mating part for sealing.

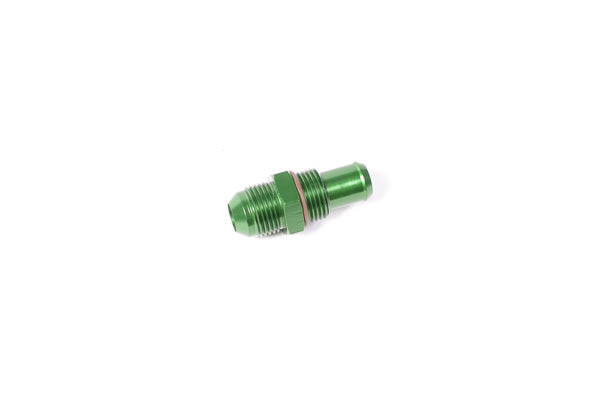

  • The 20-0196 5/8" Barb to 10AN Bulkhead Fitting was introduced in Radium High Volume Fuel Surge Tanks in 2015. It includes a preassembled Viton O-ring and requires a 7/8-14 threaded hole with chamfer to be drilled into the mating part for sealing.
