PRL Motorsports High Volume Intake System (Race MAF / Big Bore) | 2017-2021 Honda Civic Type R FK8

Coore is the Official Australian Distributor for PRL Motorsports.

Overview

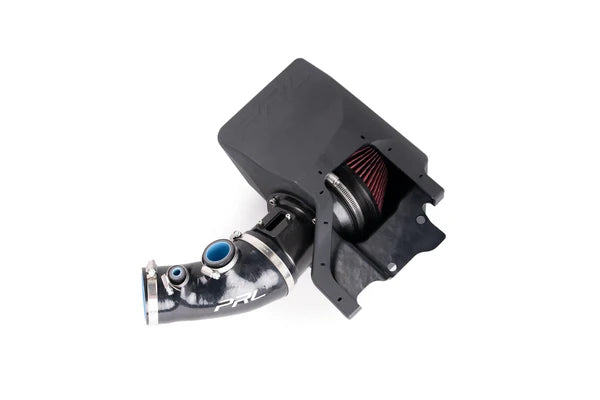

The PRL Motorsports High Volume Intake System (Race MAF / Big Bore) is the top-tier intake for the 2017-2021 Honda Civic Type R (FK8) — built for serious power builds, featuring the largest MAF housing on the market, rated for 600+ horsepower with a 47% increase in airflow over the factory MAF or Standard Bore HVI.

Built for Big Power

The Big Bore Race MAF housing is purpose-engineered for builds chasing 450+ HP. PRL's engineers carefully profiled the volute and located the MAF sensor flange to keep fuel trims stable at extreme airflow volumes. The result is an intake that supports massive power without sacrificing tuneability — a must for high-output Type R builds.

Key Features

• Big Bore Race MAF housing — largest on the market
• 47% increase in airflow volume over factory / Standard Bore HVI
• Supports 600+ horsepower builds
• 6" cone air filter for maximum airflow
• Billet two-piece MAF housing with velocity stack

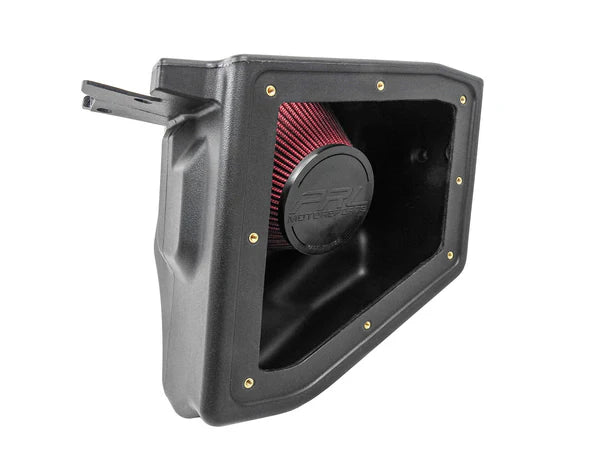

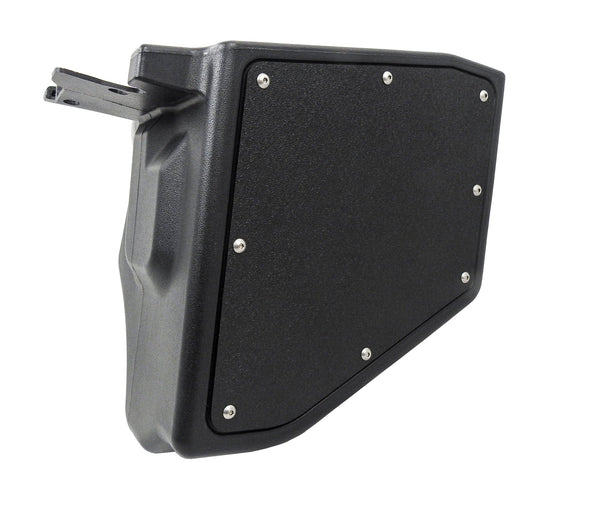

• HDPE rotomoulded air box — heat-soak reduction
• Uses factory air duct & seal for cold air feed
• Custom-moulded 4-ply silicone components

Tune Required

This intake requires ECU calibration / MAF scaling via FlashPro or KTuner. It is primarily intended for customers targeting over 450 horsepower. If running an unmodified or lightly tuned car, the Street MAF version (PRL-HCR-INT-HVI-A) is the correct choice.

Fitment

• 2017–2021 Honda Civic Type R (FK8) — 2.0T K20C1
• Fits all variant models including RHD

Pair It With

For the full induction upgrade, pair with the PRL Titanium Turbocharger Inlet Pipe Kit Big Bore (PRL-HCR-INT-TIP-B).
